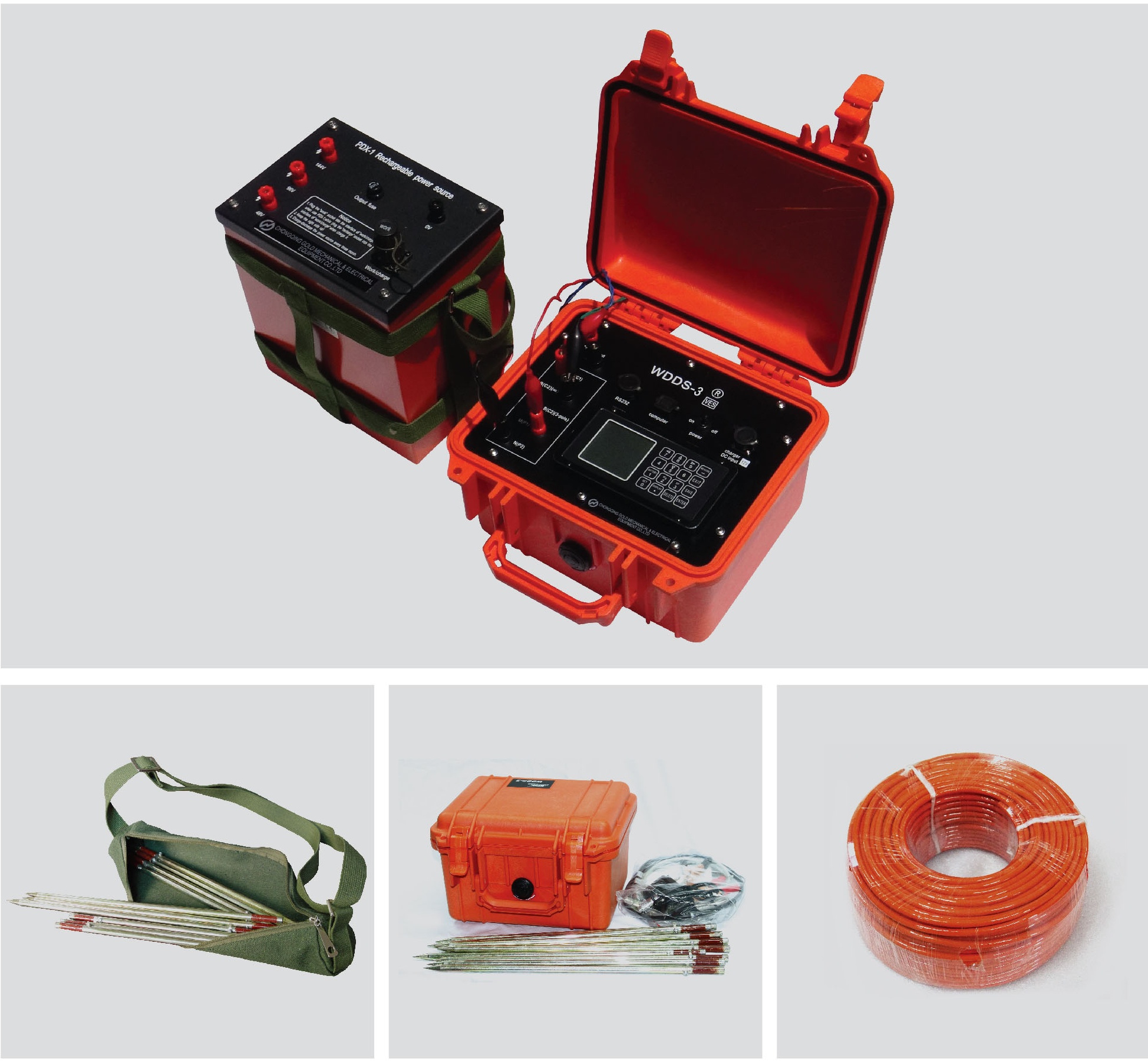

2D Electrical Resistivity System High Voltage Resistivity Tester

The University Field Geophysics Training and Experiential Learning Platform

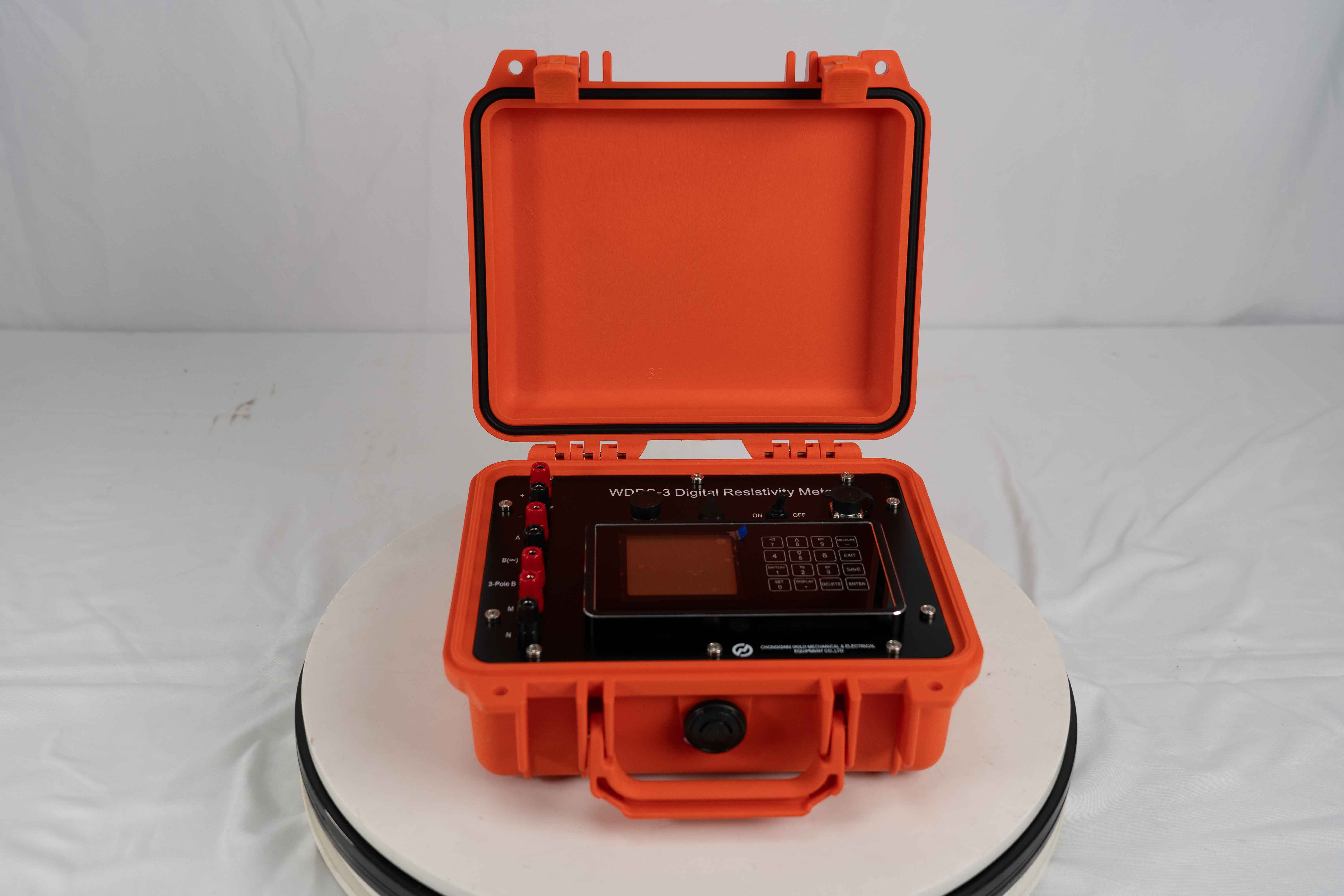

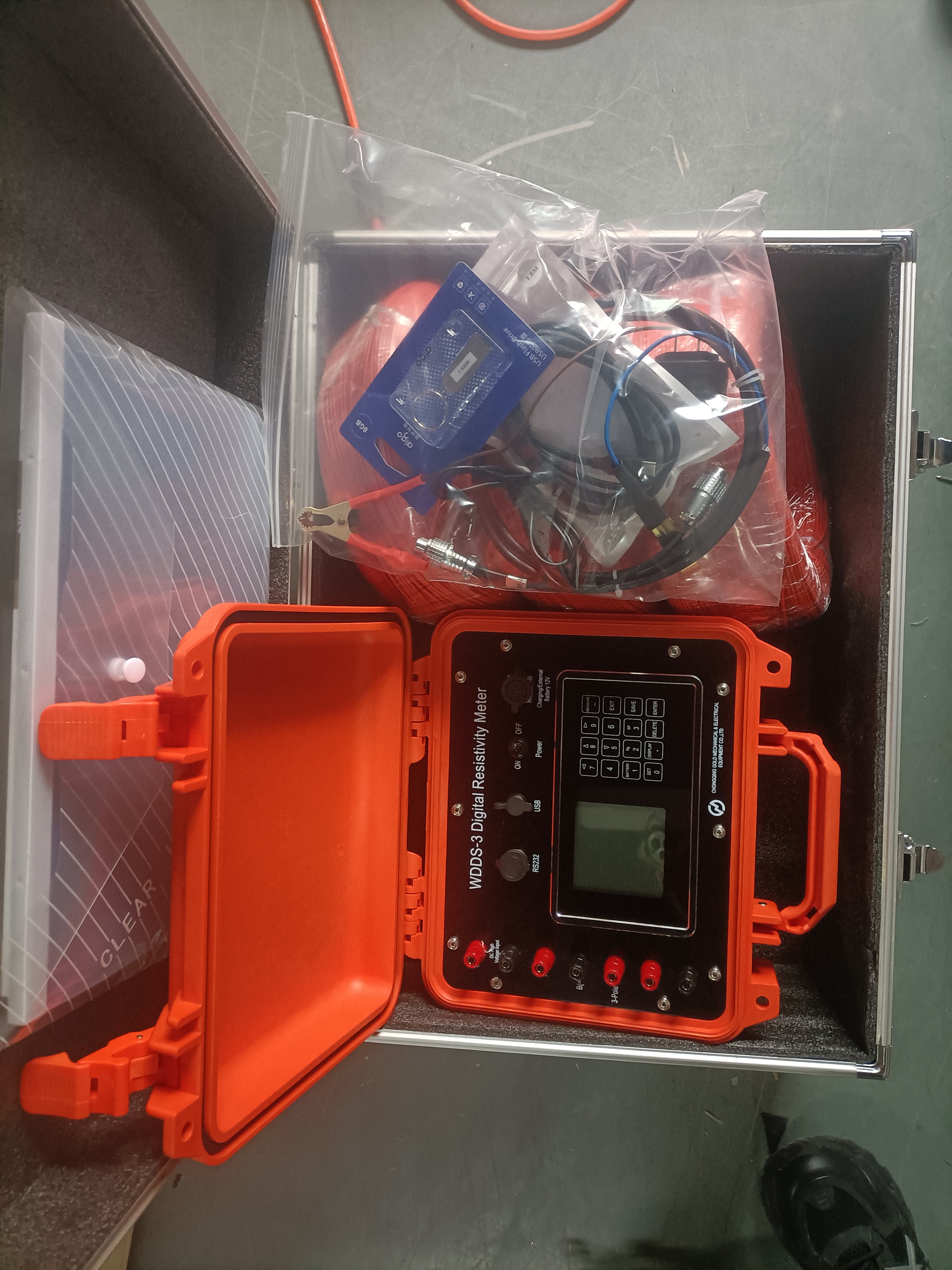

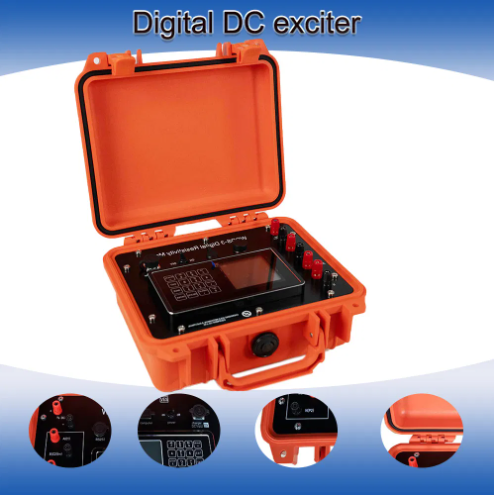

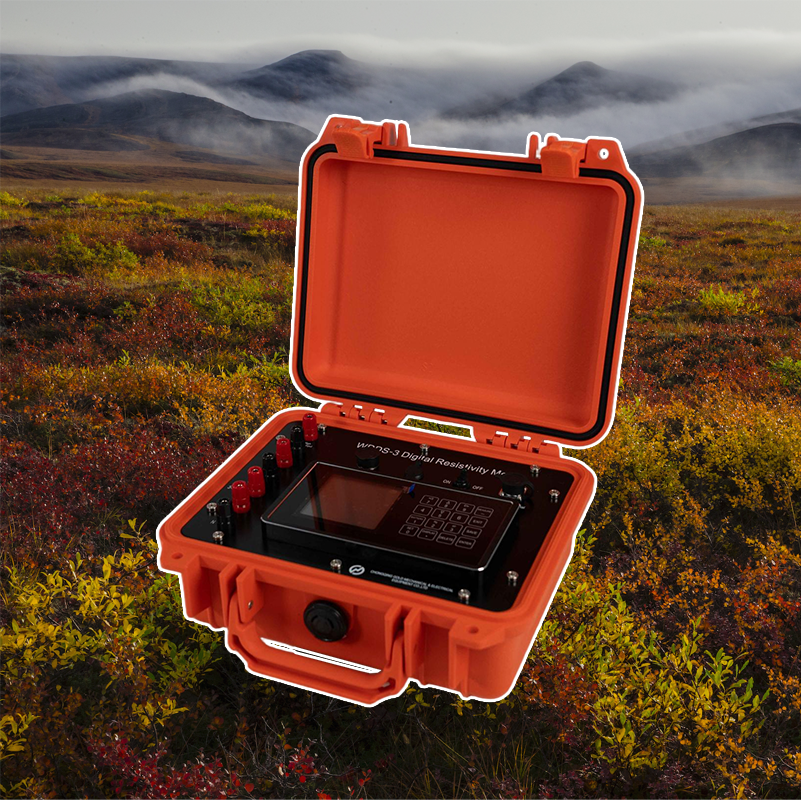

The next generation of geoscientists, environmental engineers, and hydrogeologists must graduate not only with theoretical knowledge but with hands-on proficiency in modern geophysical methods. The WDDS-3C Digital Resistivity Meter is designed as the ideal teaching instrument for university field geology, geophysics, and engineering courses, providing an accessible yet professional-grade platform for experiential learning. Its intuitive tablet-based interface, comprehensive curriculum resources, and robust construction enable instructors to integrate resistivity surveying into undergraduate and graduate curricula, transforming abstract concepts of electrical properties, inversion modeling, and subsurface interpretation into tangible, memorable field experiences that build career-ready skills.

The pedagogical power of the WDDS-3C rests on its balance of simplicity and depth. With a few taps on the tablet, a student can select a pre-configured array (Schlumberger, Wenner, or Dipole-Dipole), lay out electrodes at measured intervals, and initiate a sounding or profile survey. The system displays real-time resistivity curves and pseudo-sections as data are acquired, allowing students to immediately see the relationship between the geometry of the electrode spread and the resulting data pattern. After data collection, the built-in processing software performs inversion calculations, converting the raw voltage-current measurements into an interpretable model of subsurface resistivity. Students can experiment with different inversion parameters, observing how constraints and smoothing affect the final model—a powerful lesson in the non-uniqueness of geophysical solutions. The system's ability to export data to open-source inversion codes (e.g., Res2Dinv, BERT, PyGIMLi) further supports advanced student projects and independent research.

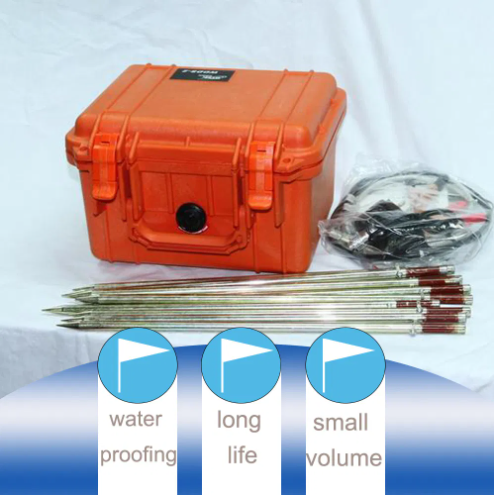

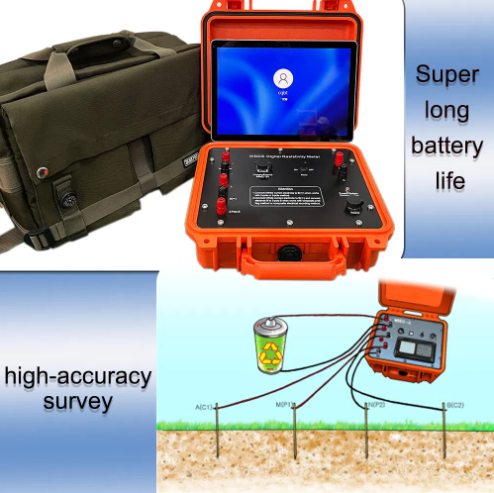

The WDDS-3C is equally at home in a structured laboratory exercise and a multi-day field camp. For a 2-hour lab session, students can conduct a miniature sounding over a known buried target—a buried pipe, a contrast in soil type, or the water table—learning to calculate geometric factors, plot apparent resistivity curves, and correlate anomalies with physical properties. For a week-long field camp, the system can be used for a capstone mapping project, where student teams design and execute a survey to characterize the subsurface geology of the camp area, integrate their resistivity data with geological maps and well logs, and present their interpretations to faculty and peers. The system's battery life, easily exceeding 12 hours of continuous operation, supports full days of fieldwork without recharging, while its IP54-rated enclosure withstands the inevitable dust, rain, and rough handling that accompany student field training.

The institutional value of the WDDS-3C extends beyond individual courses. A single instrument can serve multiple departments and courses across the university—geology, civil engineering, environmental science, archaeology, and hydrology—each applying the same core technology to discipline-specific questions. Its durability and modular design ensure a long service life even with heavy student use, and the availability of affordable replacement parts (electrodes, cables, batteries) minimizes the cost of student-induced damage. The system's data outputs are suitable for undergraduate research projects and senior theses, providing students with publication-quality results that enhance their resumes and graduate school applications. By investing in this teaching platform, universities not only improve their geoscience curriculum but also attract and retain students who seek hands-on, technology-rich learning experiences that prepare them for successful careers. In a competitive academic environment, the WDDS-3C is a powerful recruitment and retention tool, signaling a commitment to modern, experiential education.

Technical Specifications for University Teaching and Training Applications:

Each version maintains unique focus areas while highlighting the WDDS-3C's core capabilities. The repetition rate remains below 10% through specialized applications, distinct technical specifications, and tailored benefit statements for each target sector.
