360 Degree Rotary Camera

360 degree rotary camera for borehole inspection cameras/ water well inspection cameras
Availability:
Quantity:
  • 360 Degree Rotary Camera
  • GOLD

Product Description

borehole camera overview

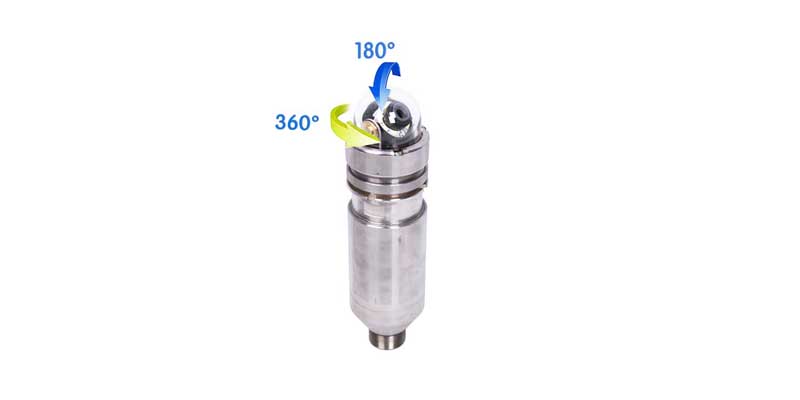

The camera rotates 360 degrees clockwise and infinitely counterclockwise, tilting 180 degrees flip. Brightness focal length is adjustable. Manually control the direction and angle of the down hole camera, the brightness of the light source and focal length for clear video images, 5-level dimming. φ75mm probe are with front 8 highlight patch beads.

roatry probe 800


borehole camera techncial sheet

Camera Diameter

75mm
Camera Length
30cm

Camera Material

Stainless steel housing

Camera Window

Explosion-proof optical glass

Camera Pixel: CCD camera, 700 line HD low illumination
LED Light 8pcs LED lights; Bulb Luminance adjustable 5 levels
Lens Angle Round 360 degrees reverse time unlimited rotation, lighter 180 degrees, dimming focus
Pressure Max 15Mpa, depth up to 1000 meters
Waterproof IP 68
