Downhole Inspection Tool Borehole Imaging System

The Environmental Sentinel – Protecting Our Subsurface Resources

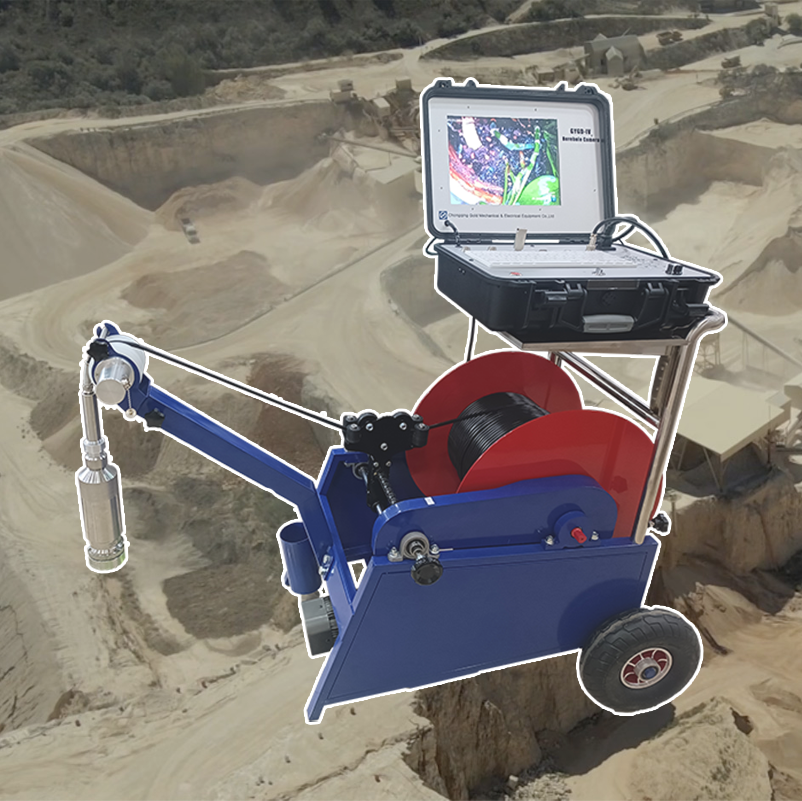

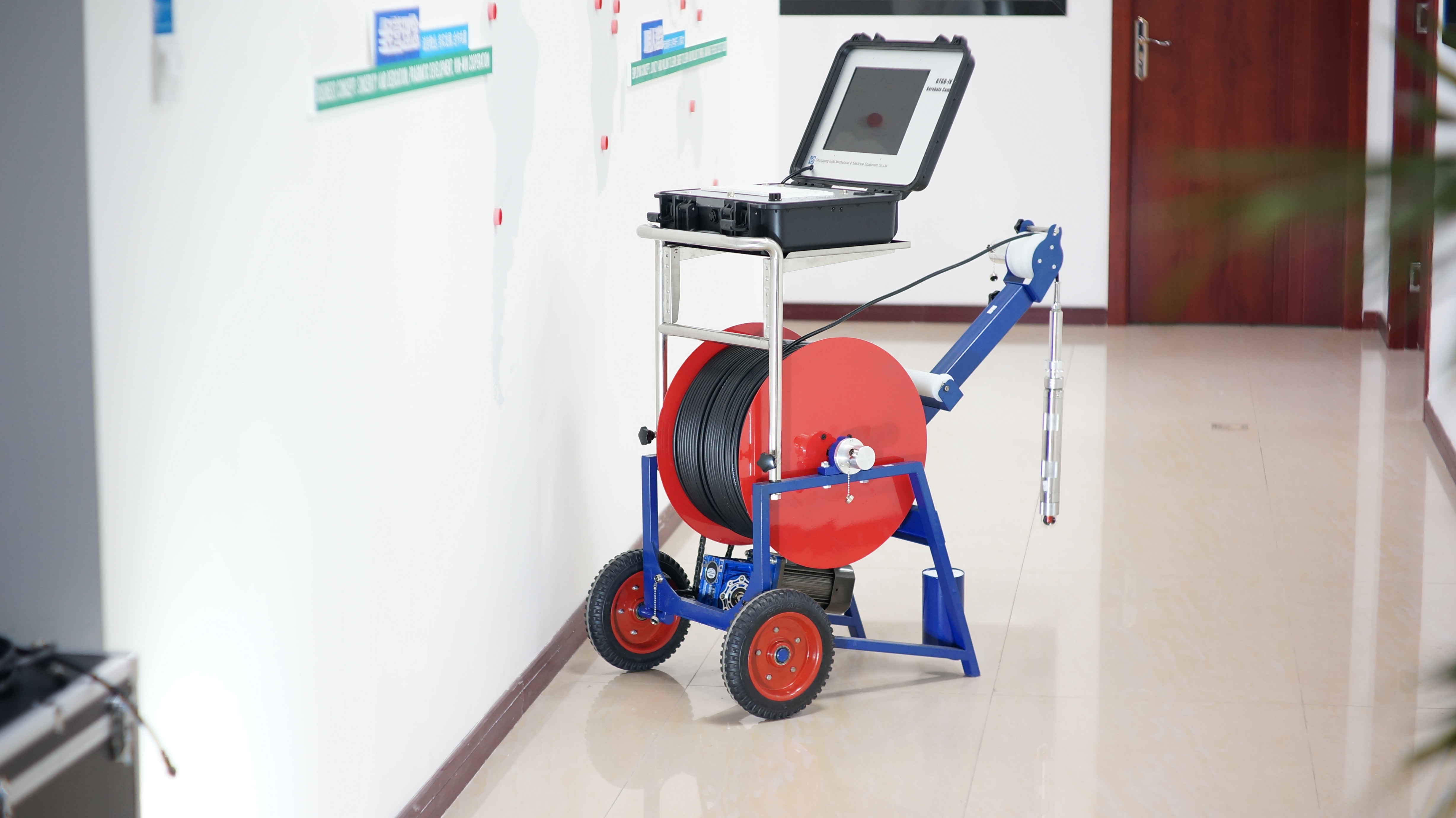

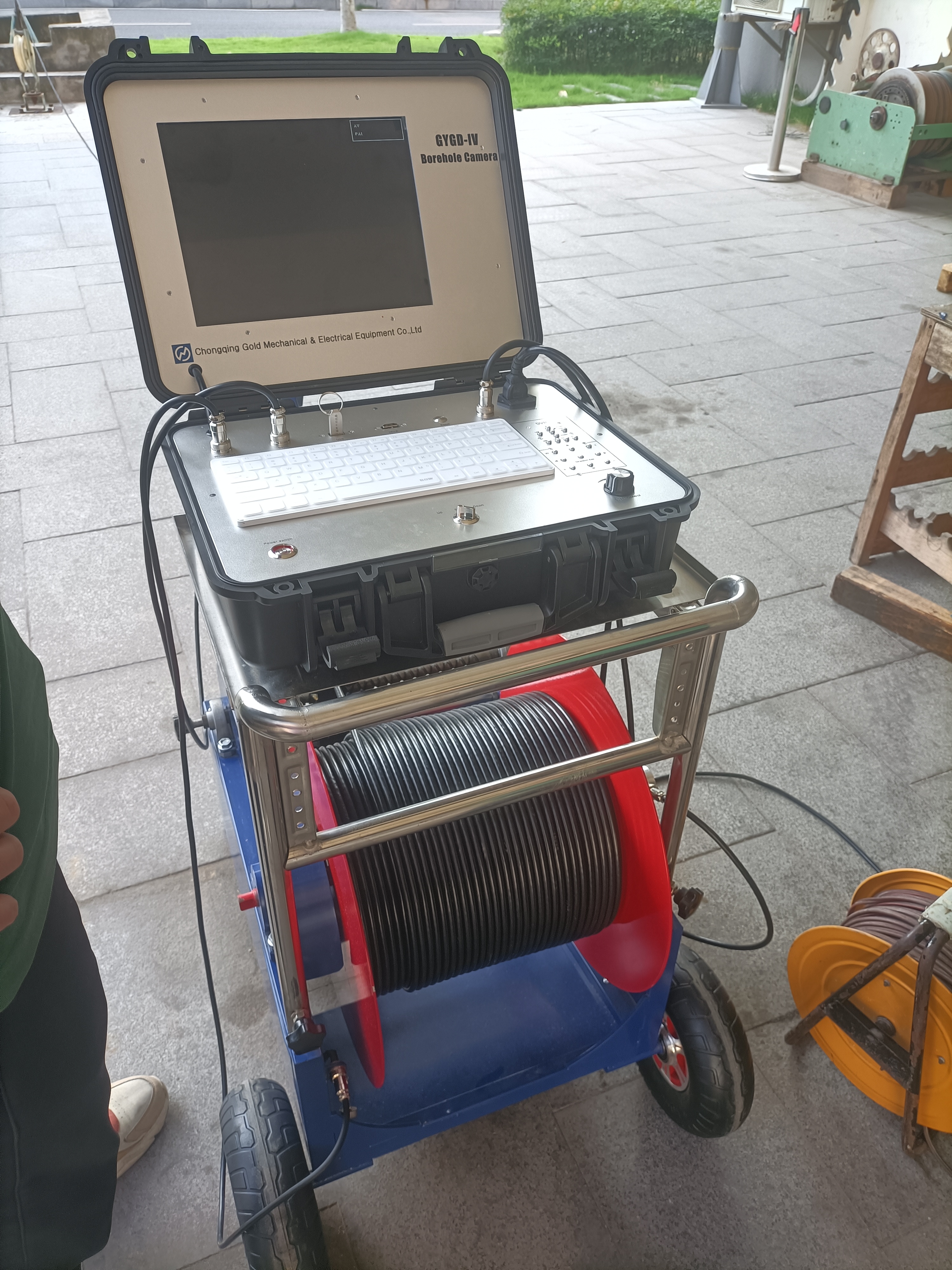

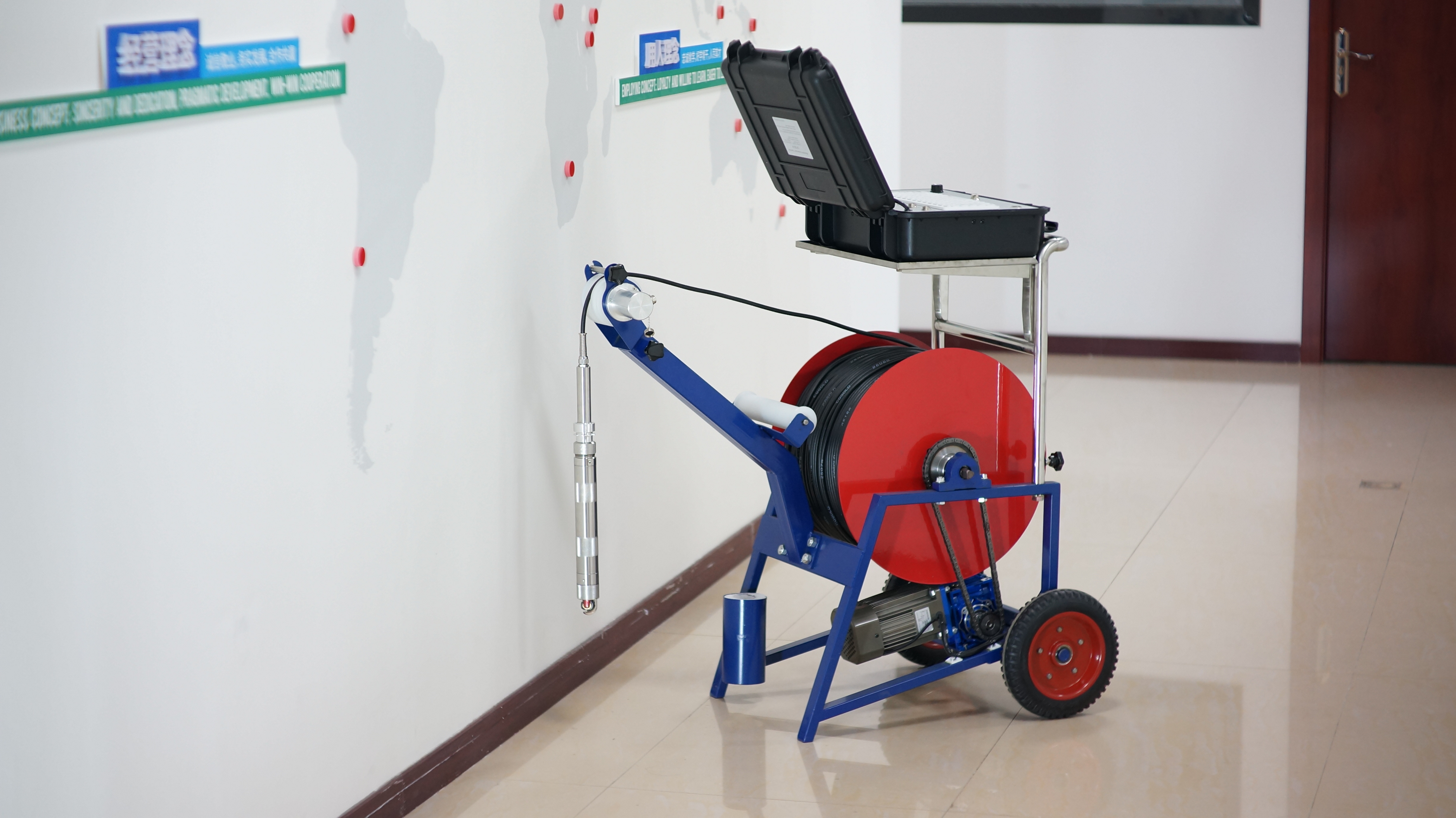

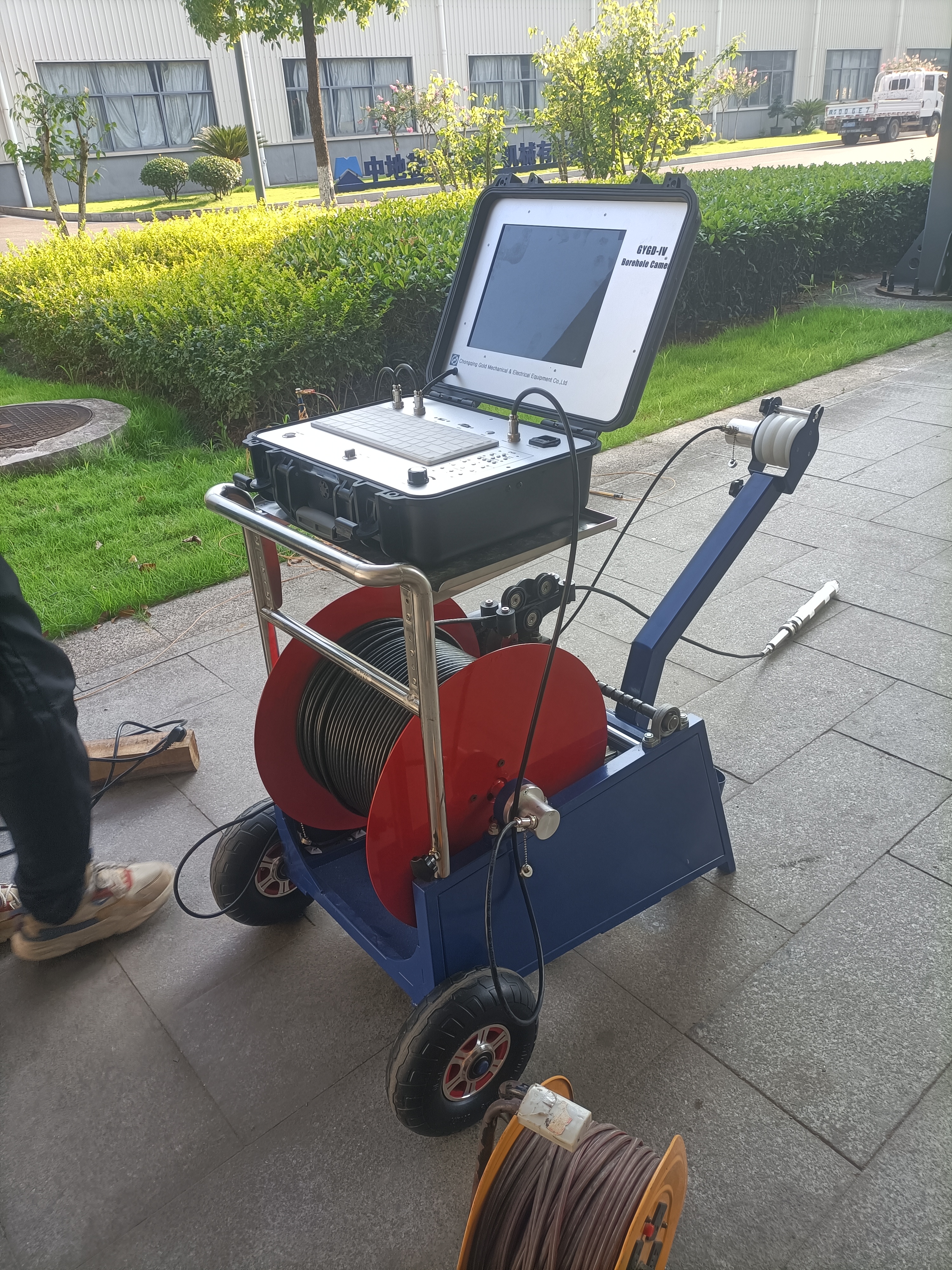

GYGD-IV Rotary Borehole Inspection Camera: A Window into Earth's Hidden Ecosystems

As global awareness of environmental protection grows, so does the need for tools that can monitor, assess, and safeguard our subsurface resources. The GYGD-IV Rotary Borehole Inspection Camera is uniquely positioned to serve as an environmental sentinel, providing unprecedented visual access to groundwater aquifers, soil formations, and underground injection zones. For hydrogeologists, environmental consultants, and regulatory agencies, this camera is an indispensable ally in the fight against contamination and resource depletion.

Groundwater Quality Assurance

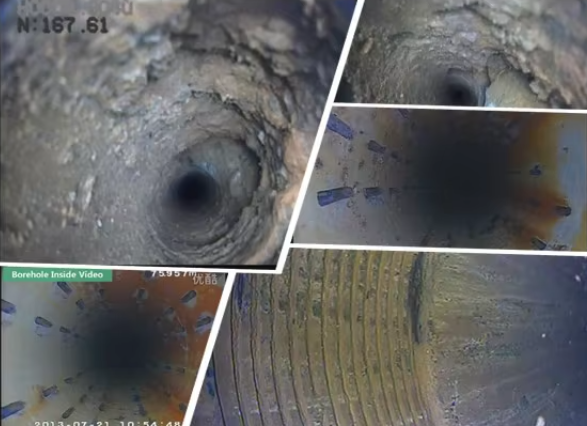

Groundwater supplies drinking water for billions and sustains ecosystems worldwide. Yet, the very aquifers that store this precious resource are often inaccessible to direct observation. The GYGD-IV changes that by allowing direct visual inspection of well screens, casing, and the surrounding formation. It can detect biofilm growth, mineral scaling, and physical damage that compromise water quality. In monitoring wells, it verifies that the screen is properly positioned and free of obstructions, ensuring that water samples are representative and uncontaminated.

Contaminant Plume Tracking
When a spill or leak occurs, understanding the extent of subsurface contamination is critical. The GYGD-IV can be deployed in monitoring wells to visually confirm the presence of free product (e.g., LNAPL) or to observe changes in water color, turbidity, or biological activity that indicate contaminant migration. Over time, repeated inspections can track the movement of plumes and the effectiveness of remediation efforts. This visual data complements chemical sampling and provides a powerful tool for communicating with regulators and the public.

Carbon Capture and Storage (CCS) Monitoring
As the world transitions to net-zero emissions, carbon capture and storage is emerging as a key technology. The GYGD-IV plays a vital role in verifying the integrity of injection wells and storage formations. Before injection, it can document the baseline condition of the wellbore and surrounding rock. During operation, periodic inspections can check for casing corrosion, cement degradation, or micro-annuli that could provide leakage pathways. After site closure, the camera can confirm that wells have been properly abandoned and sealed, providing long-term assurance to regulators and the public.

Geothermal Energy Exploration
Geothermal energy offers a clean, baseload power source, but its development requires detailed knowledge of subsurface fractures and fluid flow. The GYGD-IV's rotary imaging capability is ideal for mapping fracture networks in geothermal wells, identifying zones of high permeability and potential fluid loss. It can also document scaling and corrosion in production wells, helping operators optimize maintenance and maximize energy output.

Mining and Tailings Management
In the mining industry, the GYGD-IV is used to inspect dewatering wells, heap leach pads, and tailings storage facilities. It can verify that dewatering wells are functioning properly, detect leaks in liner systems, and monitor the stability of underground workings. For tailings dams, it provides a means to inspect drainage pipes and monitoring wells for signs of distress, contributing to safer and more environmentally responsible operations.

Regulatory Compliance and Reporting
Environmental regulations increasingly require visual evidence of compliance. The GYGD-IV's ability to produce high-definition, timestamped, and depth-referenced imagery makes it an ideal tool for meeting these requirements. Inspection reports can be generated quickly and include annotated images that clearly show conditions. This not only satisfies regulatory demands but also builds public trust by demonstrating a commitment to transparency and environmental stewardship.

Non-Invasive, Low-Impact Technology
One of the greatest advantages of the GYGD-IV is its minimal environmental footprint. Unlike excavation or drilling, a camera inspection is non-invasive and does not disturb the surrounding ecosystem. It can be deployed through existing wells, requiring no new surface disturbance. This makes it an ideal tool for monitoring in sensitive areas such as wetlands, wildlife habitats, or urban environments where disruption must be minimized.

Environmental Applications Specifications Table
