Product Description

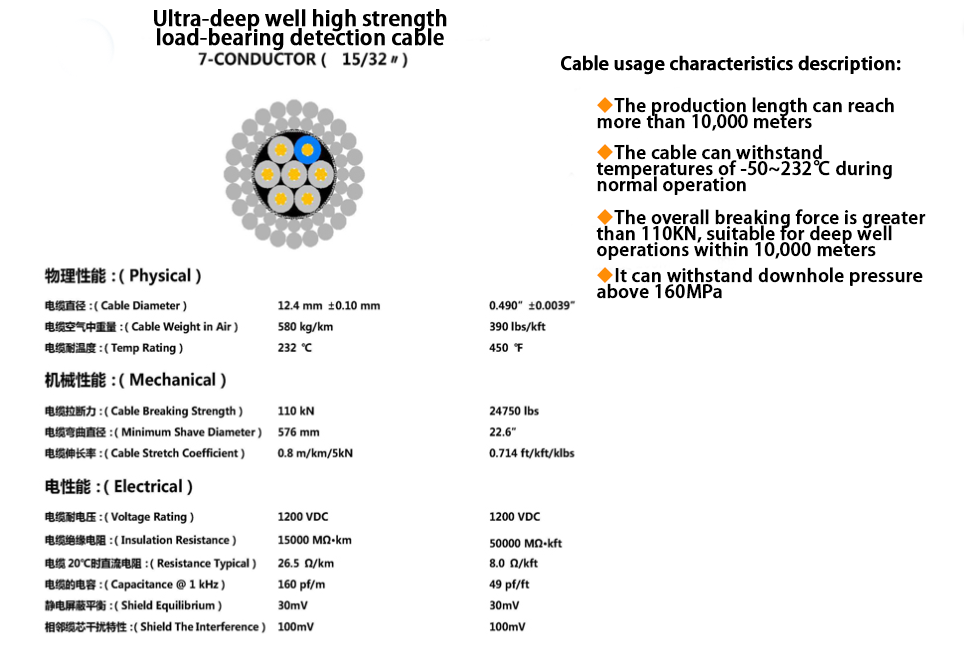

High-Fidelity Detection Cable ensures accurate measurements in extreme-depth applications. Advanced electrostatic shielding (30mV balance) prevents signal distortion, while 160 pF/m low capacitance guarantees data accuracy. Optimized for 10,000m+ deployments with 110kN tensile strength.
Critical Innovations:
Ultra-low interference (≤100mV crosstalk)
26.5 Ω/km conductivity efficiency
576mm bend radius for complex well paths
| Signal Integrity | Performance |
|---|---|
| Shield Balance | 30mV |
| Conductor Crosstalk | ≤100mV |
| Capacitance @1kHz | 160 pF/m |
| DC Resistance (20°C) | 26.5 Ω/km |
| Insulation Resistance | 15,000 MΩ·km |
