Product Description

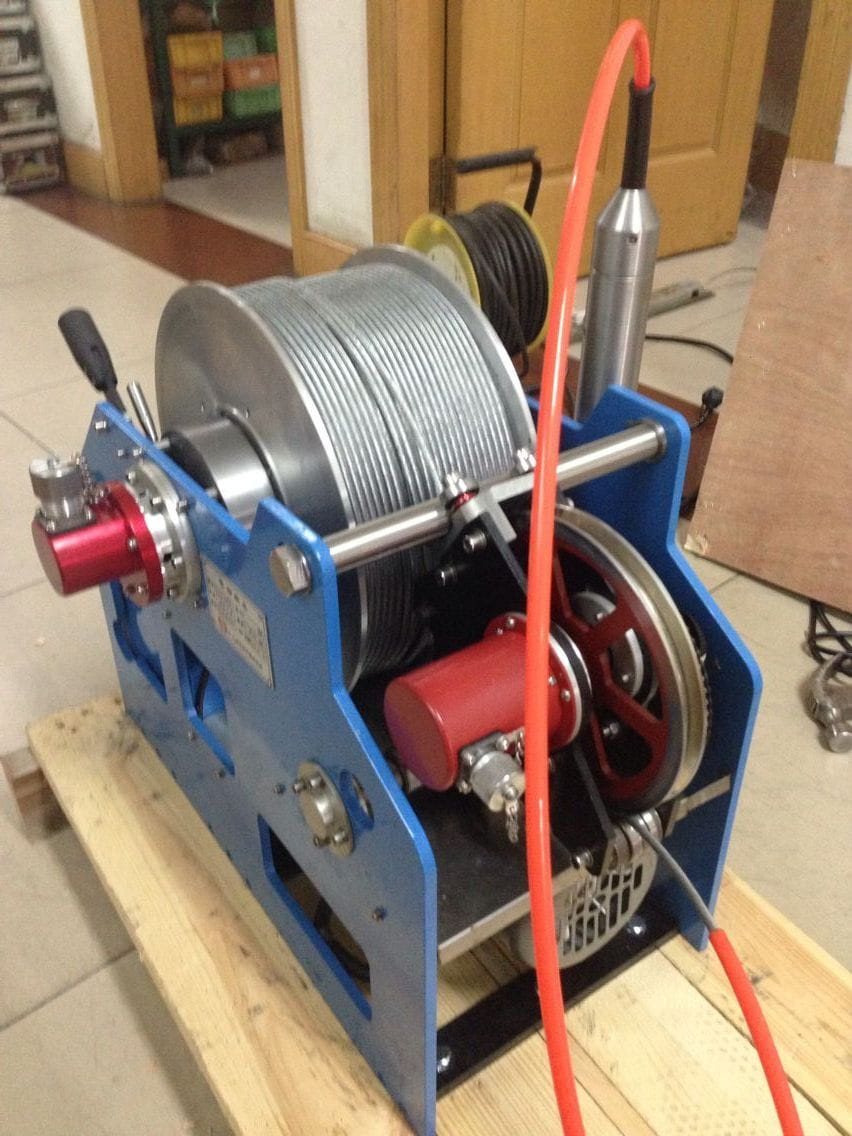

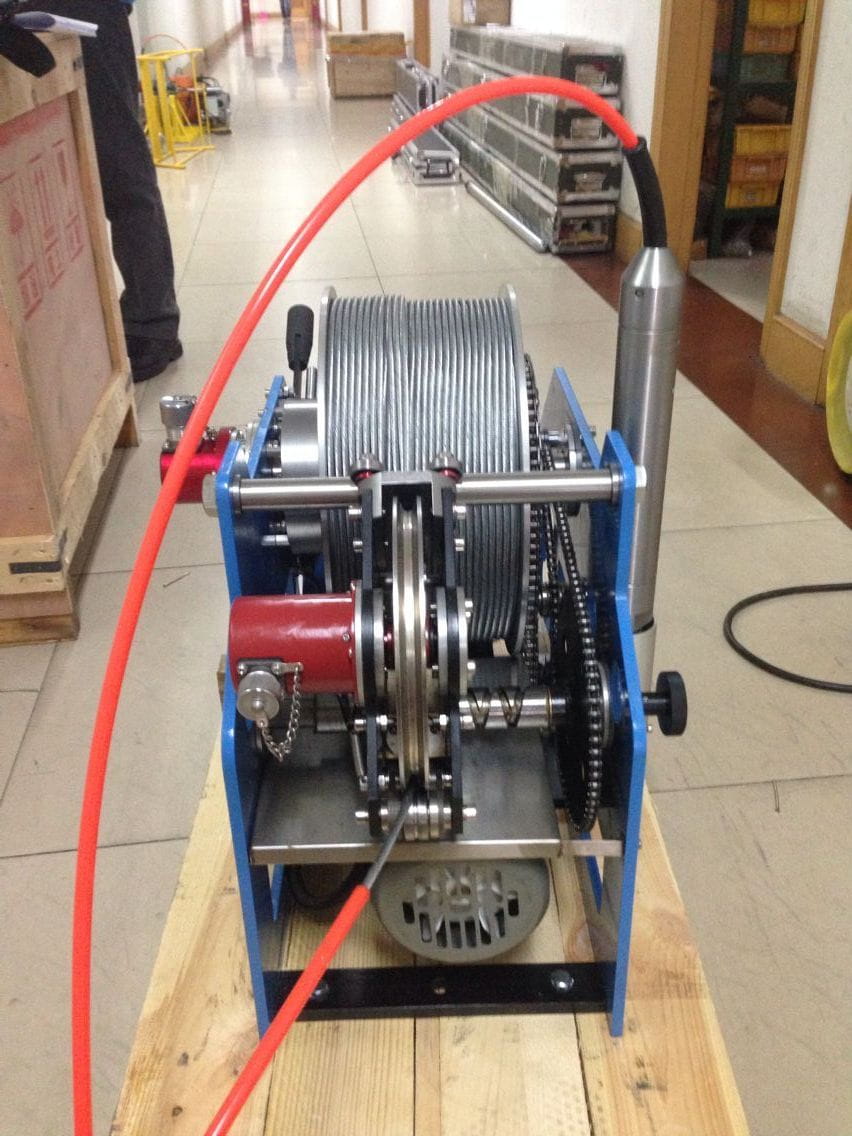

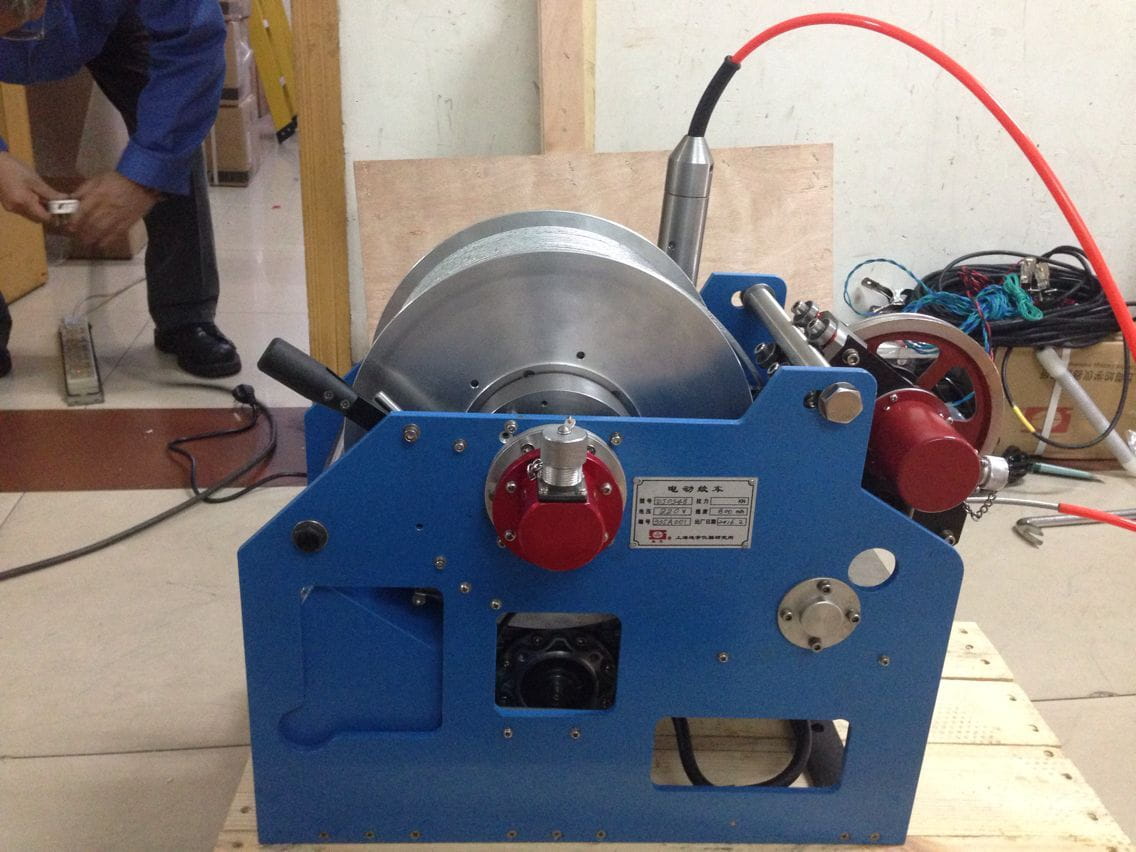

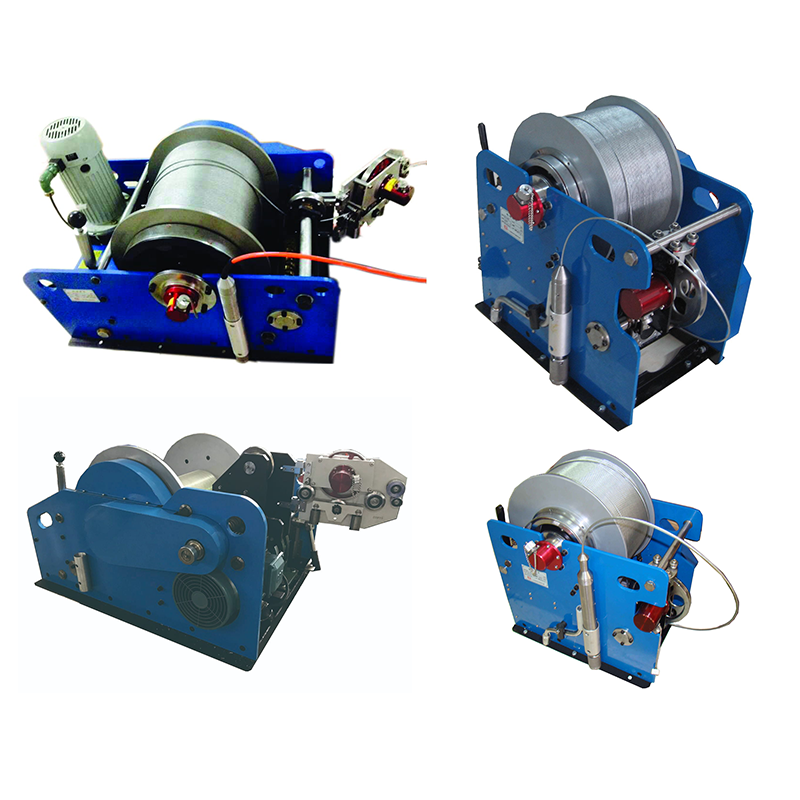

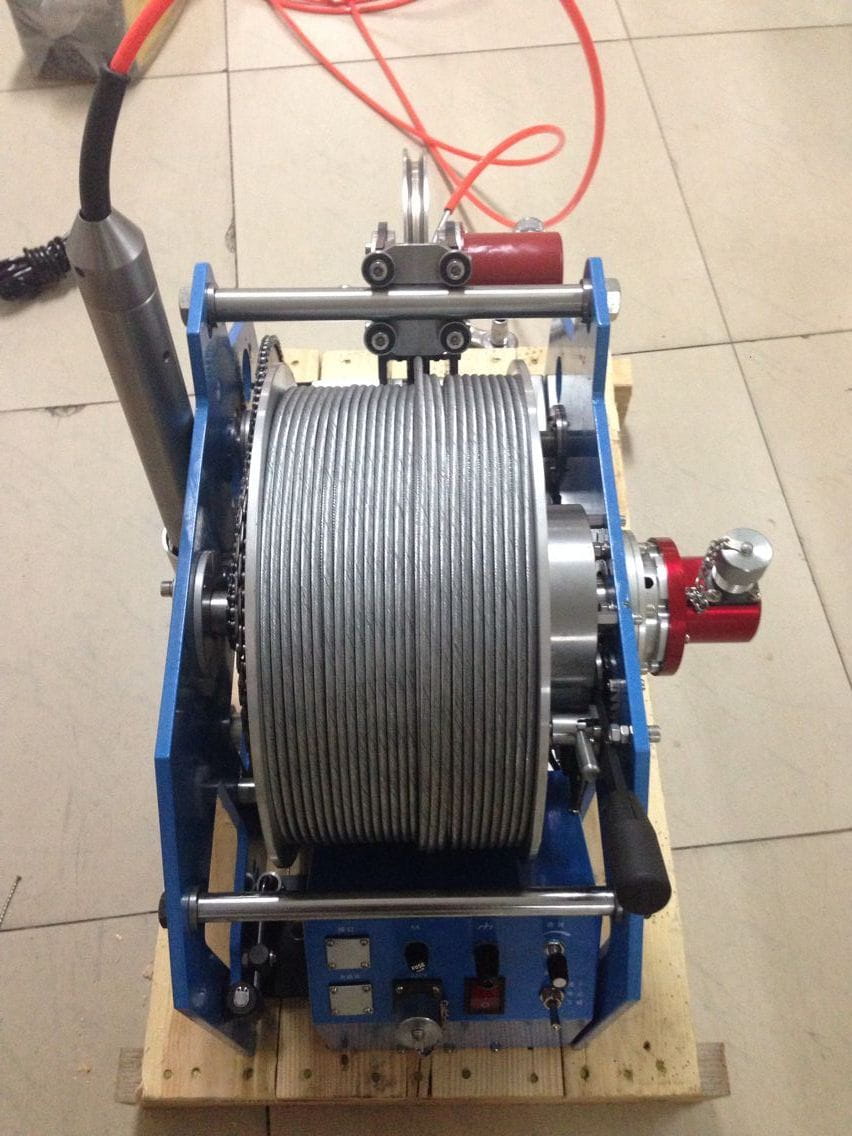

Field operations often face crew rotation, new hires, and temporary staff who need to become productive quickly. The DJ Series winch has been designed with intuitive controls and forgiving behavior that reduces training time from weeks to days. Available for borehole depths from 100 meters to 3000 meters , this winch family allows experienced supervisors to delegate logging tasks to junior operators with confidence and safety. The learning curve is gentle, but the performance ceiling is high.
The advanced AC variable-frequency regulating speed technology eliminates the jerky, non linear behavior that confuses new operators. When the control is moved, the winch responds with smooth, proportional motion that matches expectations. A small control movement produces a slow cable speed not a sudden lurch. This predictable response allows trainees to develop muscle memory and situational awareness without fear of damaging tools or cables. The drive system’s natural stability also reduces the risk of overshoot during depth positioning.
The automatic constant speed mode , maintaining selected velocities between 0.5 and 20 meters per minute within plus or minus 5 percent , is the ideal setting for novice operators. It frees them from the distraction of continuous speed adjustment, allowing focus on depth monitoring, tension watching, and communication with the logger. Once the trainee masters these basics, they can gradually learn the manual control mode for speeds from 0 to 30 meters per minute. This stepwise progression builds competence without overwhelming the learner.
New operators often worry about whether the depth display is correct. The DJ Series automated depth calculation with self-compensating error correction removes this uncertainty. The system continuously adjusts for cable stretch, temperature changes, and drum buildup , so the displayed depth is always accurate within 0.4 percent . Your trainee can trust the numbers without performing manual corrections, reducing mental workload and allowing faster skill development. When they move to other winches later, they will have already internalized good depth monitoring habits.
The self-locking brake engages automatically on power loss, preventing accidental descents even if the novice forgets to set the brake manually. The manual brake gives the trainer or supervisor an independent way to secure the load during training exercises. This redundancy creates a forgiving learning environment where a single mistake does not lead to a dropped tool string. Trainers can allow more hands on practice because the equipment itself provides backup protection.
The automatic overload protection system does more than prevent damage it teaches safe operating limits. When a trainee pulls too hard against an obstruction, the system provides progressive feedback before stopping. The operator learns to recognize tension buildup and ease off, internalizing the winch‘s safe operating envelope. Because the protection prevents catastrophic overloads, training can include realistic scenarios that would be too risky on less sophisticated equipment. This experiential learning builds genuine competence faster than classroom instruction alone.
| Model | Maximum Depth Meters | Cable Outer Diameter Inches | Conductor Count | Speed Options Meters per Hour | Lifting Force Kilonewtons | Auto Manual Feature |
|---|---|---|---|---|---|---|
| DJ0348 | 300 | Steel 3/16 | 4 | 600 and 1200 | 1.8 and 0.9 | Yes |
| DJ0648 | 650 | Steel 3/16 | 4 | 800 and 1960 | 2.6 and 1.1 | Yes |
| DJ1031 | 1000 | Steel 1/8 | 1 | 800 and 1960 | 2.6 and 1.1 | Yes |
| DJ1231 | 1200 | Steel 1/8 | 1 | 800 and 1960 | 2.6 and 1.1 | Yes |
| DJ1048 | 1000 | Steel 3/16 | 4 | 800 and 1800 | 5.9 and 2.6 | Yes |
| DJ2048 | 2000 | Steel 3/16 | 4 | 660 and 1725 | 10.0 and 5.1 | Yes |
| DJ2548 | 2500 | Steel 3/16 | 4 | 660 and 1725 | 10.0 and 5.1 | Yes |
| DJ3048 | 3000 | Steel 3/16 | 4 | 660 and 1725 | 10.0 and 5.1 | Yes |

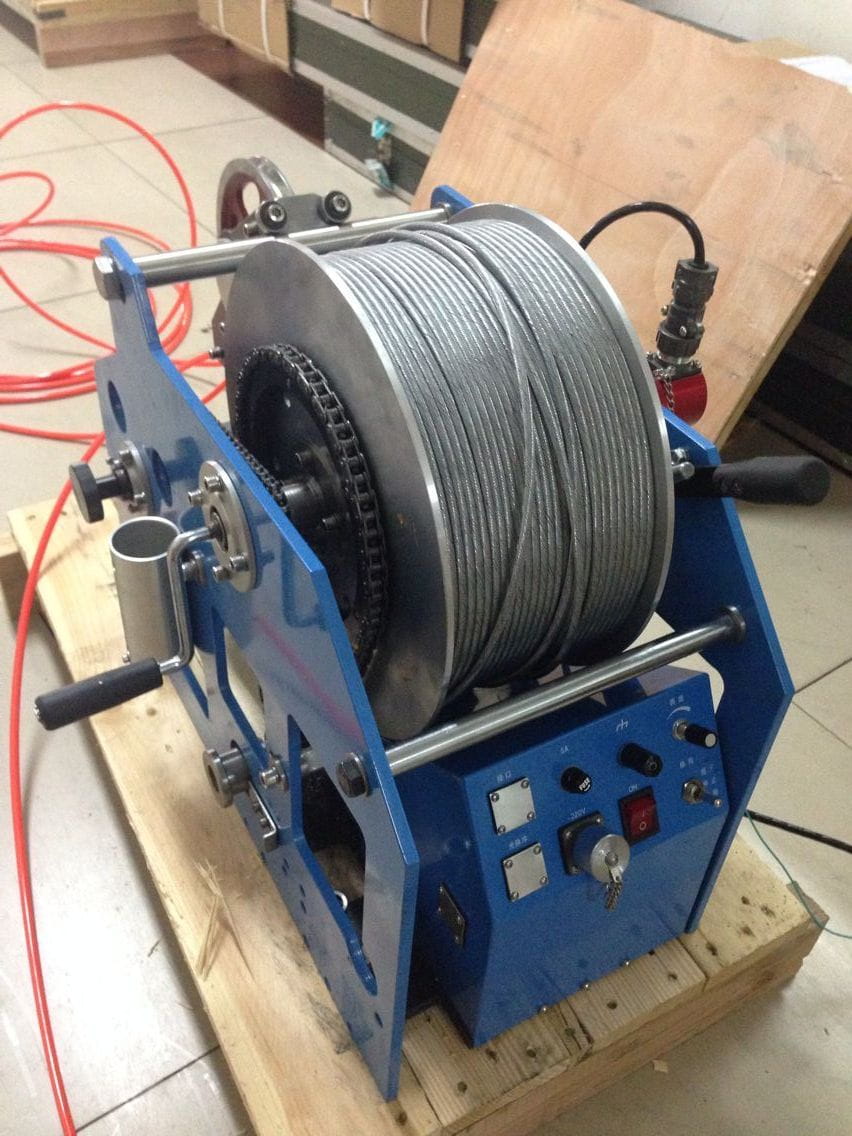

The winch controller offers automatic, manual, and check modes with clearly labeled buttons and a readable digital display. The fixed point measurement and continuous measurement options are selectable with single presses, no complex menu navigation. Operating temperature range of minus 10 to 55 degrees Celsius ensures the controller works reliably in the field, so training is not interrupted by equipment failures. Power requirement is AC 220V plus or minus 10 percent at 50 Hz , standard in most field camps. For training coordinators seeking to reduce ramp up time and improve crew competence , the DJ Series is the smart choice.
