Electrical resistivity tomography (ERT)

Views:141     Author:Site Editor     Publish Time: 2017-10-17      Origin:Site

Electrical resistivity tomography (ERT) or electrical resistivity imaging (ERI) is a geophysical technique for imaging sub-surface structures from electrical resistivity measurements made at the surface, or by electrodes in one or more boreholes.

Electrical resistivity tomography (ERT) or electrical resistivity imaging (ERI).jpg

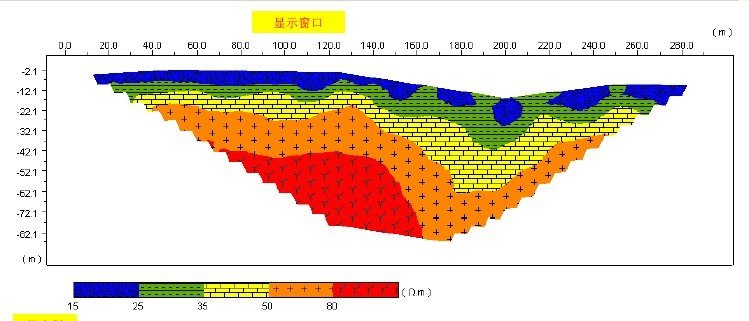

Electrical Resistivity Tomography (ERT) is an advanced geophysics method used to determine the subsurfaces resistivity distribution by making measurements on the ground surface. ERT data are rapidly collected with an automated multi-electrode resistivity meter. ERT profiles consist of a modeled cross-sectional (2-D) plot of resistivity (Ω·m) versus depth. ERT interpretations, supported by borehole data or alternate geophysical data, accurately represent the geometry and lithology and/or hydrology and/or petrology of subsurface geologic formations.

Electrical resistivity tomography (ERT) or electrical resistivity imaging (ERI) (2).jpg



With the advancement in the field of Electrical Resistivity Tomography (ERT) from 1D to 2D and now-a- days 3D, ERT has explored many fields. The applications of ERT include fault investigation, ground water table investigation, soil moisture content determination and many others.



                               Electrical resistivity tomography,electrical resistivity imaging _副本.jpg

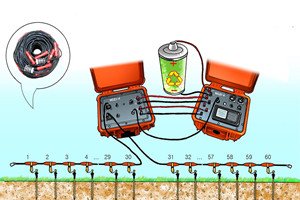

Instrument & Accessory Will be use

Resistivity imaging.png
