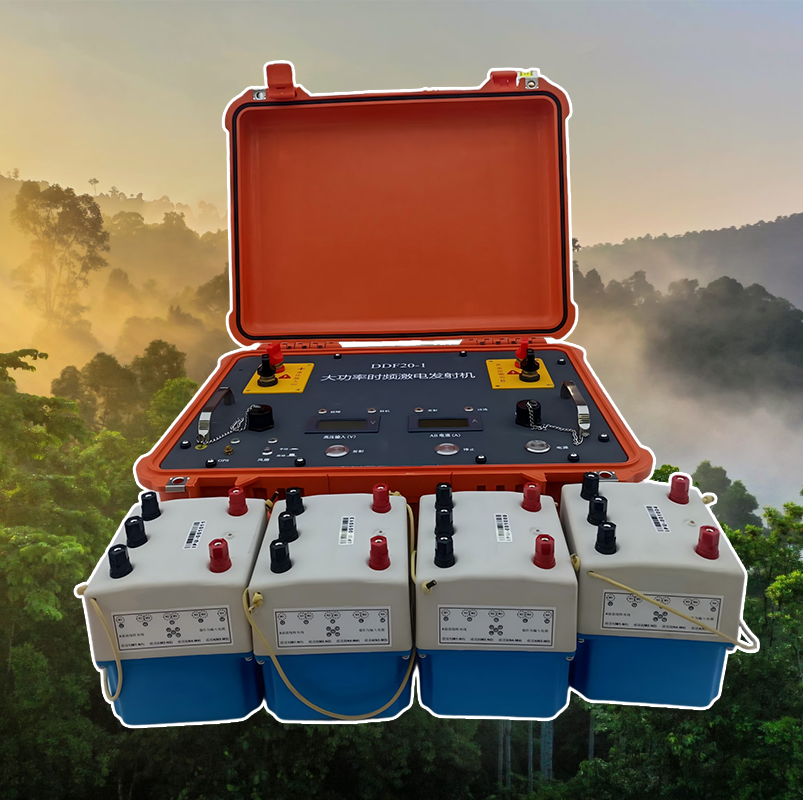

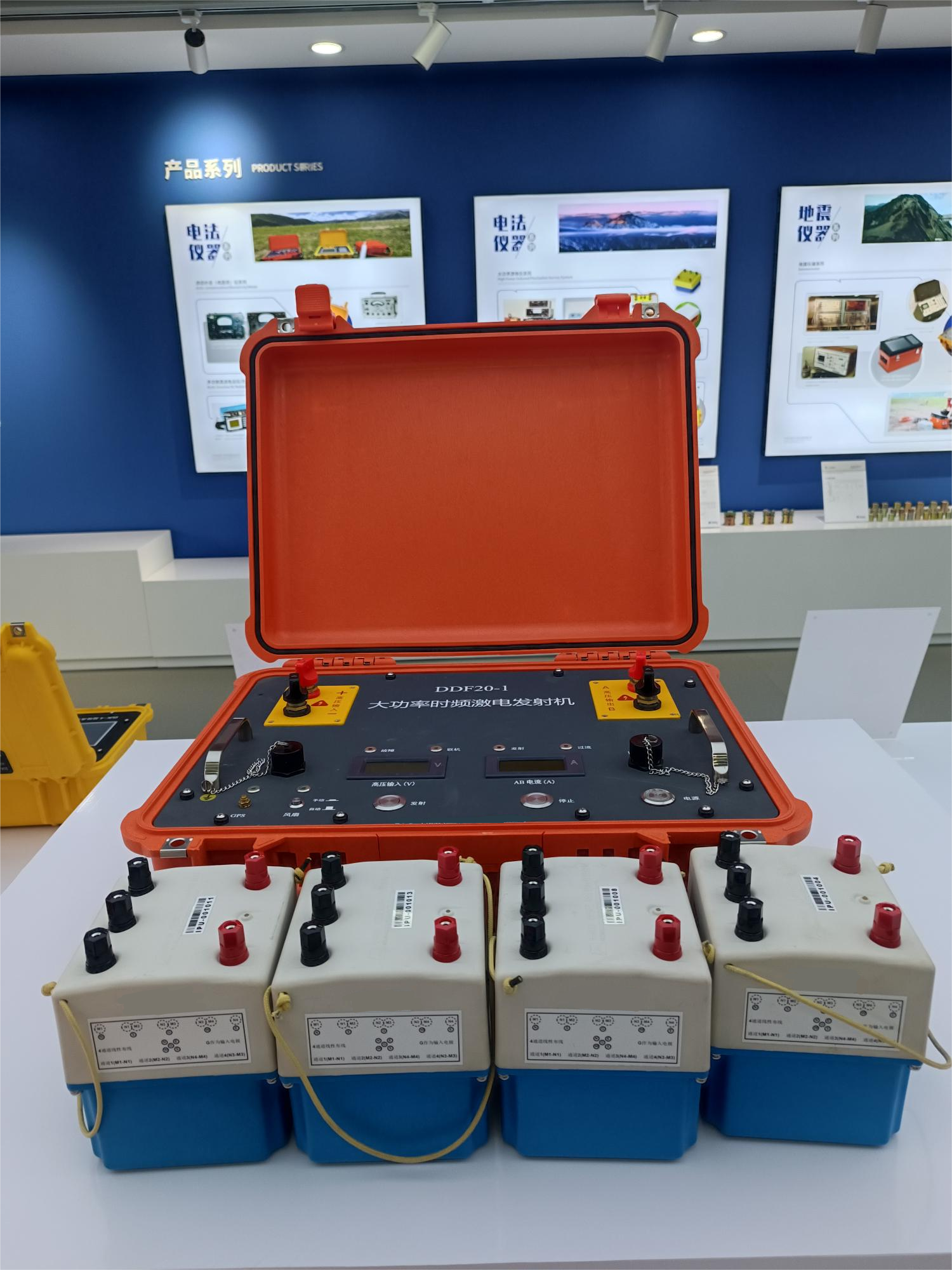

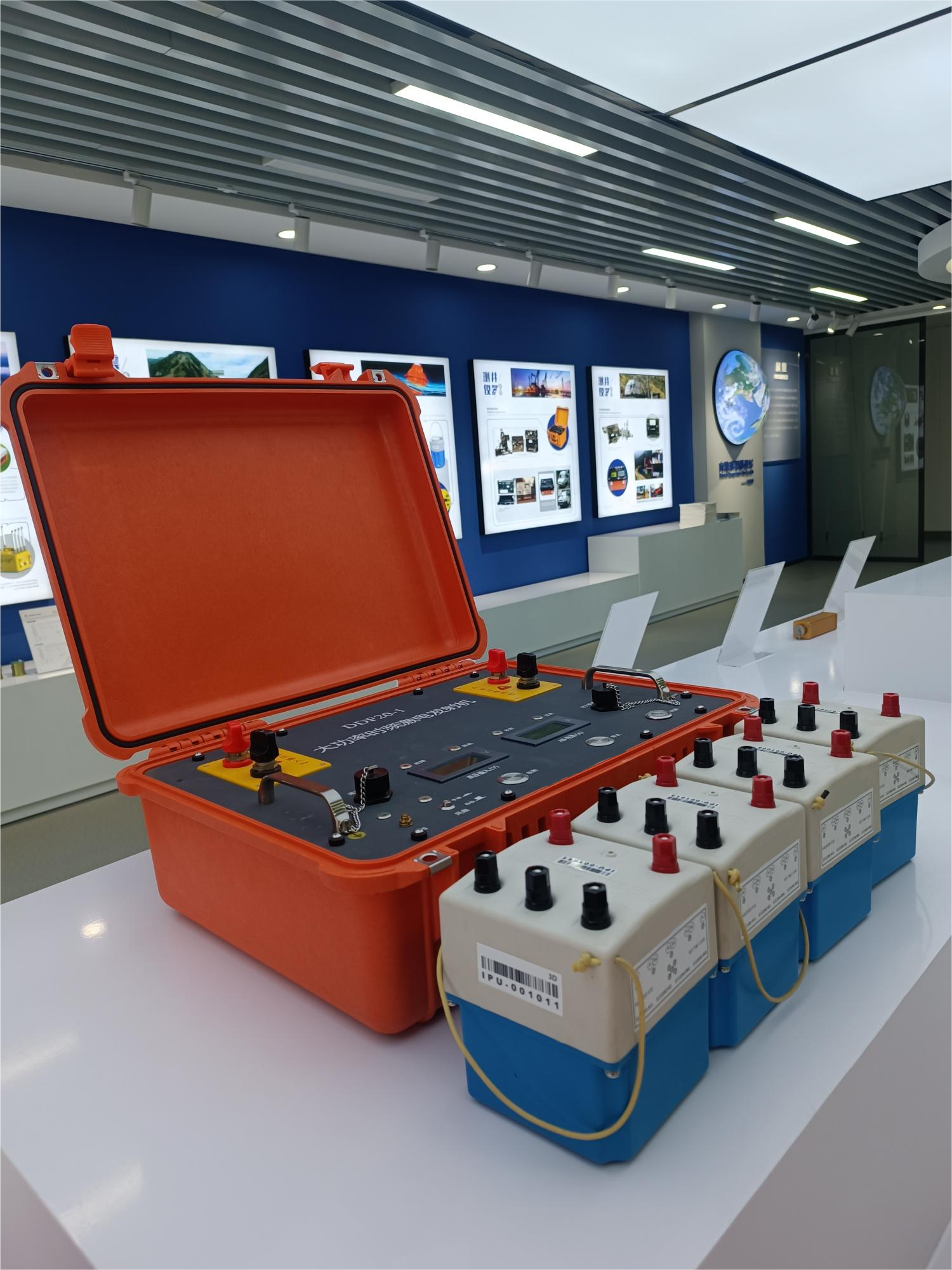

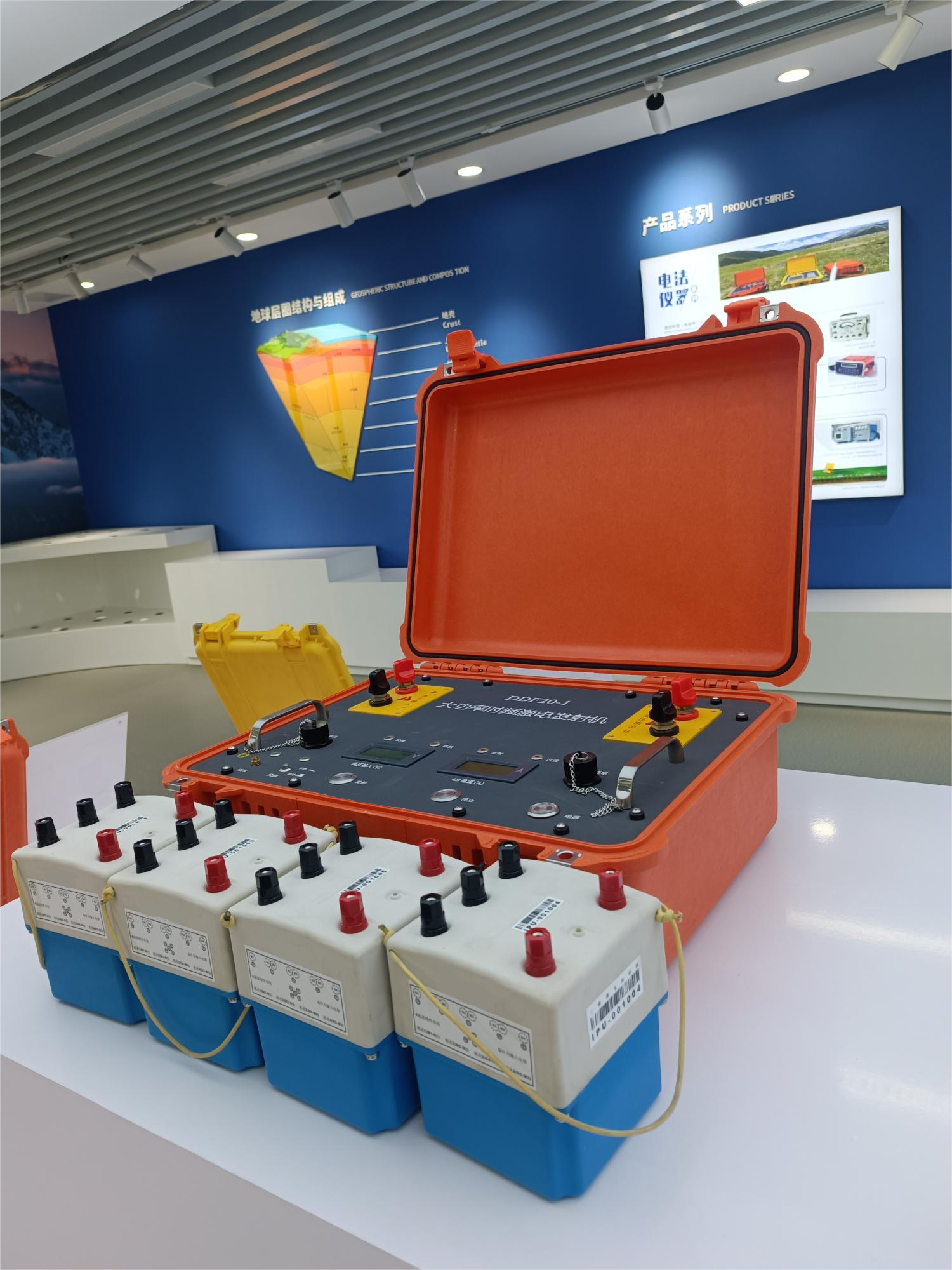

Full Waveform IP Receiver 32 Bit ADC IPU 4C Induced Polarization Logger

Purchasing a deep exploration IP system is a long-term investment. The IP3D Series minimizes operational costs and downtime while maximizing data yield per day. This ultra-high voltage, high-power true three-dimensional time-frequency induced polarization measurement system is engineered for low maintenance, wireless efficiency, and high first-pass success rates . Let me explain the financial and operational benefits.

Lower Equipment Transport Costs

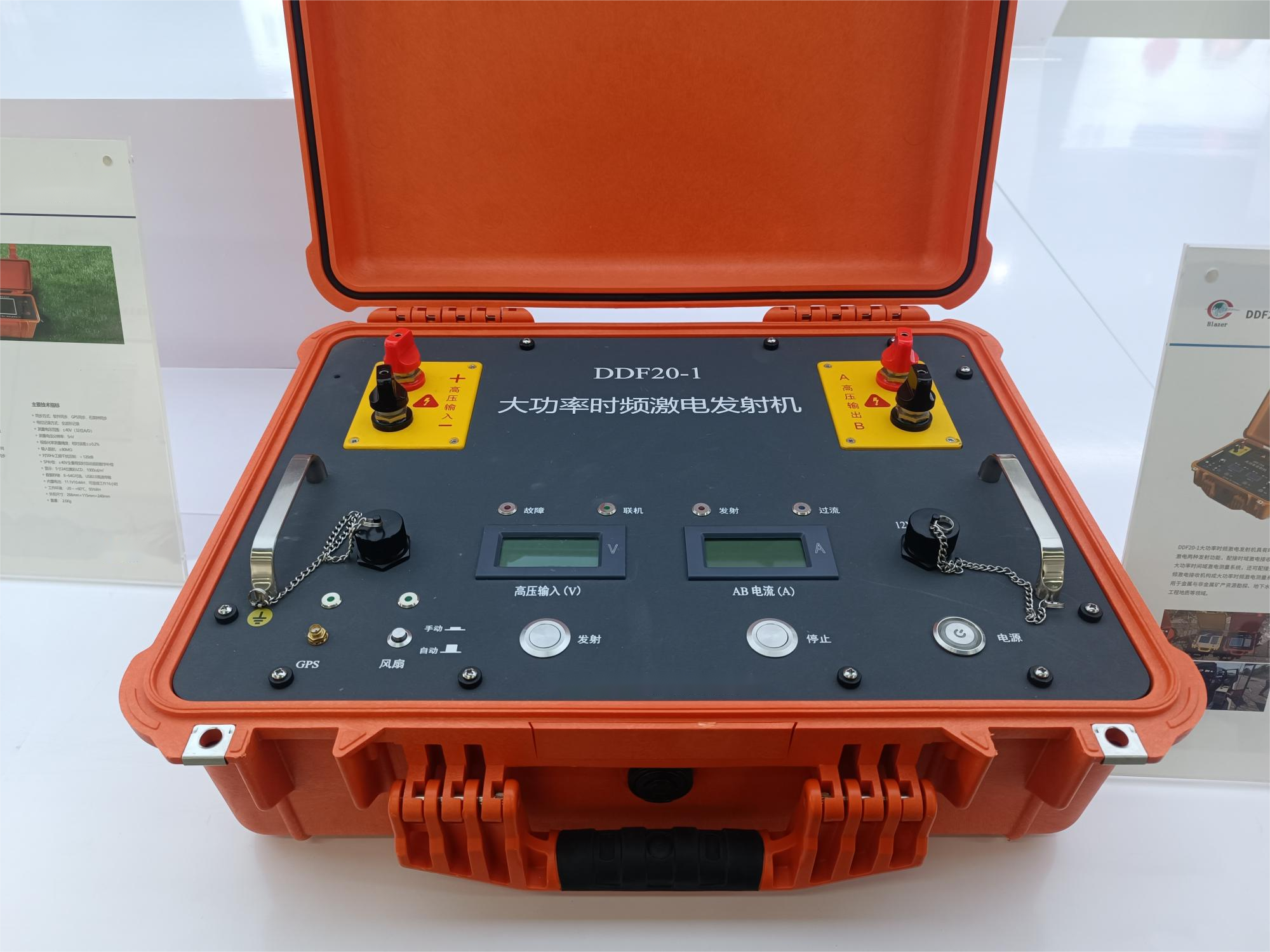

Traditional high-power IP transmitters often weigh over 100 kg, requiring a dedicated vehicle or helicopter lift. The Hyper3K transmitter is <45 kg and compact (<50x40x30 cm) . One person can wheel it on a cart, and two can carry it up a hill. For a large 3D array, you might need multiple transmitters for parallel or series operation – but even three units total <135 kg, still less than one conventional 60 kW system. Reduce your shipping and mobilization budget by 40-60% .

Fewer Crew Members, Faster Setup

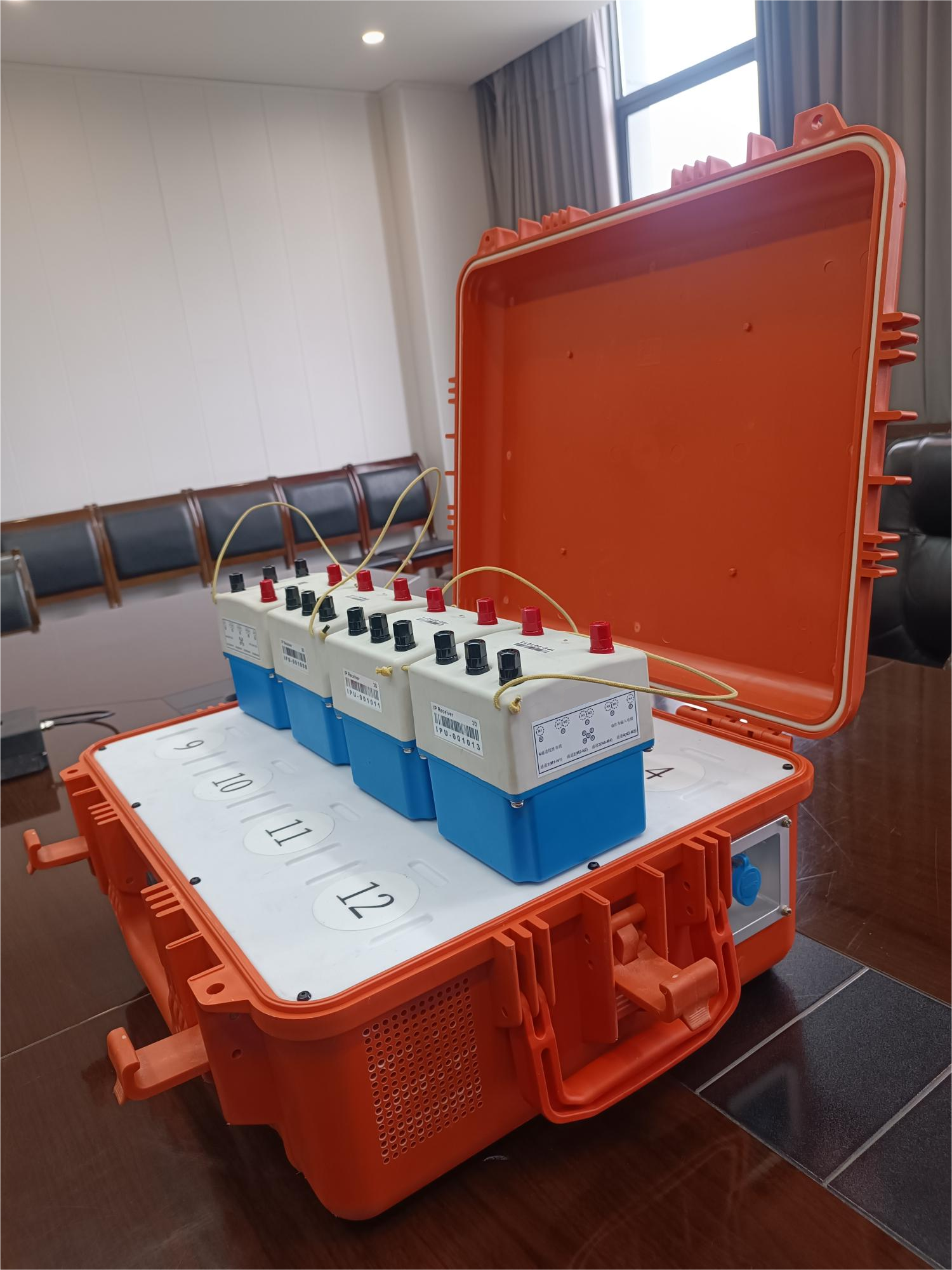

Because the IPU-4C receivers are wireless nodes with long battery life (>15 days) , you do not need a crew to babysit them. One technician can deploy 50 receivers in a day – simply place them, connect electrodes, and use a mobile phone via Bluetooth to verify each unit. No main cables, no repeaters, no power supply runs. The WPS-12 wireless charging station eliminates the need for a dedicated data wrangler – just put receivers on the pad and walk away. Labor costs for a 2-week survey can drop by 30% .

Higher Data Quality = Less Re-Surveying

The IPU-4C's ultra-low noise floor (<6 nV/√Hz) and >180 dB dynamic range mean you will capture usable IP signals even in moderately noisy areas. Conventional receivers with higher noise often require repeating each measurement many times or abandoning noisy stations. With the IP3D Series, you get first-pass usable data on over 90% of stations, reducing the need for costly re-surveys. The full-waveform acquisition also allows you to filter out cultural noise in post-processing , further salvaging data that other systems would reject.

Long Battery and Storage Life – No Mid-Survey Visits

Each receiver runs for >15 days on its internal 120 Wh battery. For a typical 10-day survey, you will never need to change batteries . Storage of >256 GB holds weeks of continuous full-waveform data. This eliminates the cost of sending a crew into the field to swap memory cards or batteries halfway through. Save on helicopter time, vehicle fuel, and crew wages .

Rugged Design Reduces Repairs

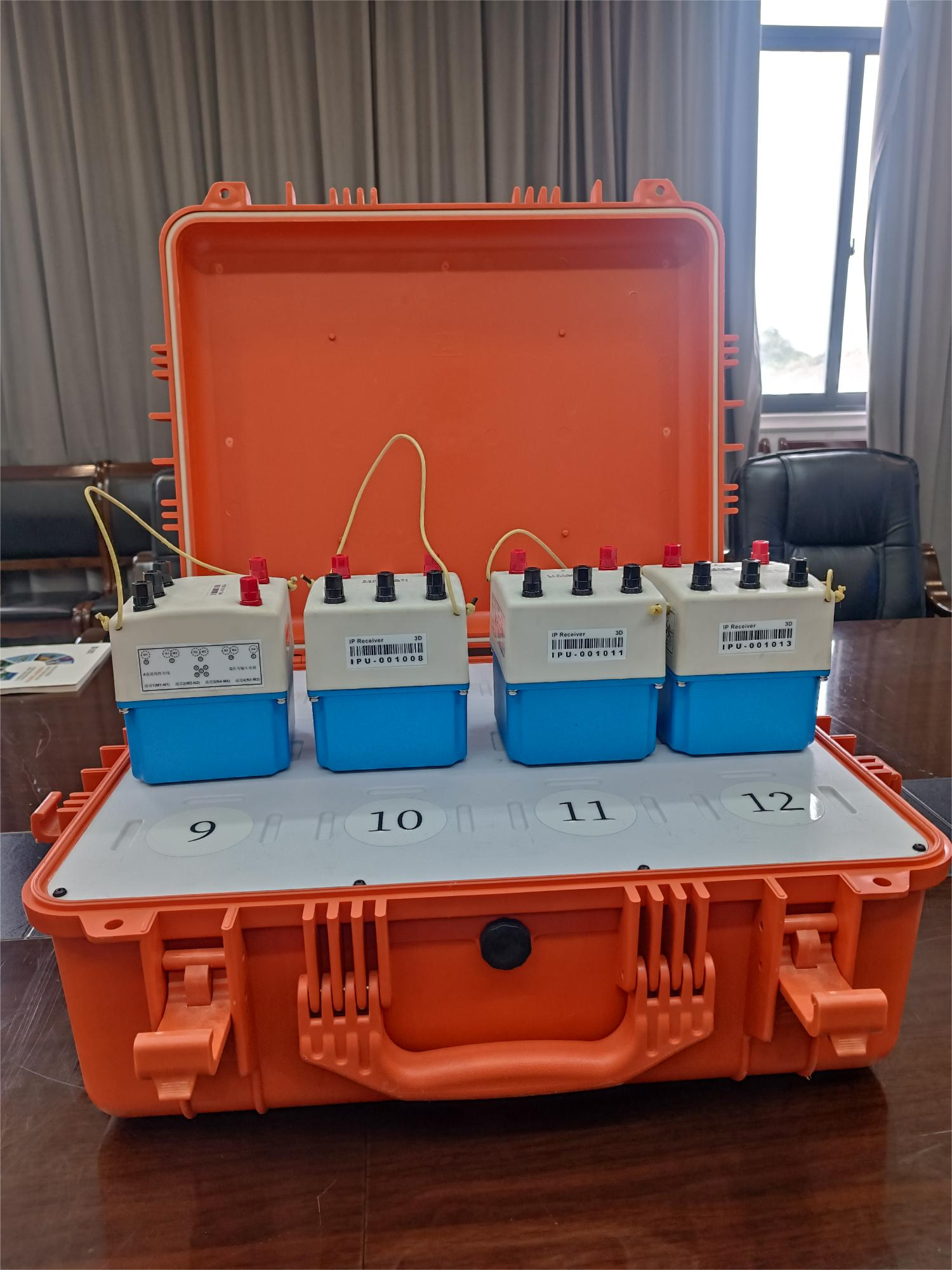

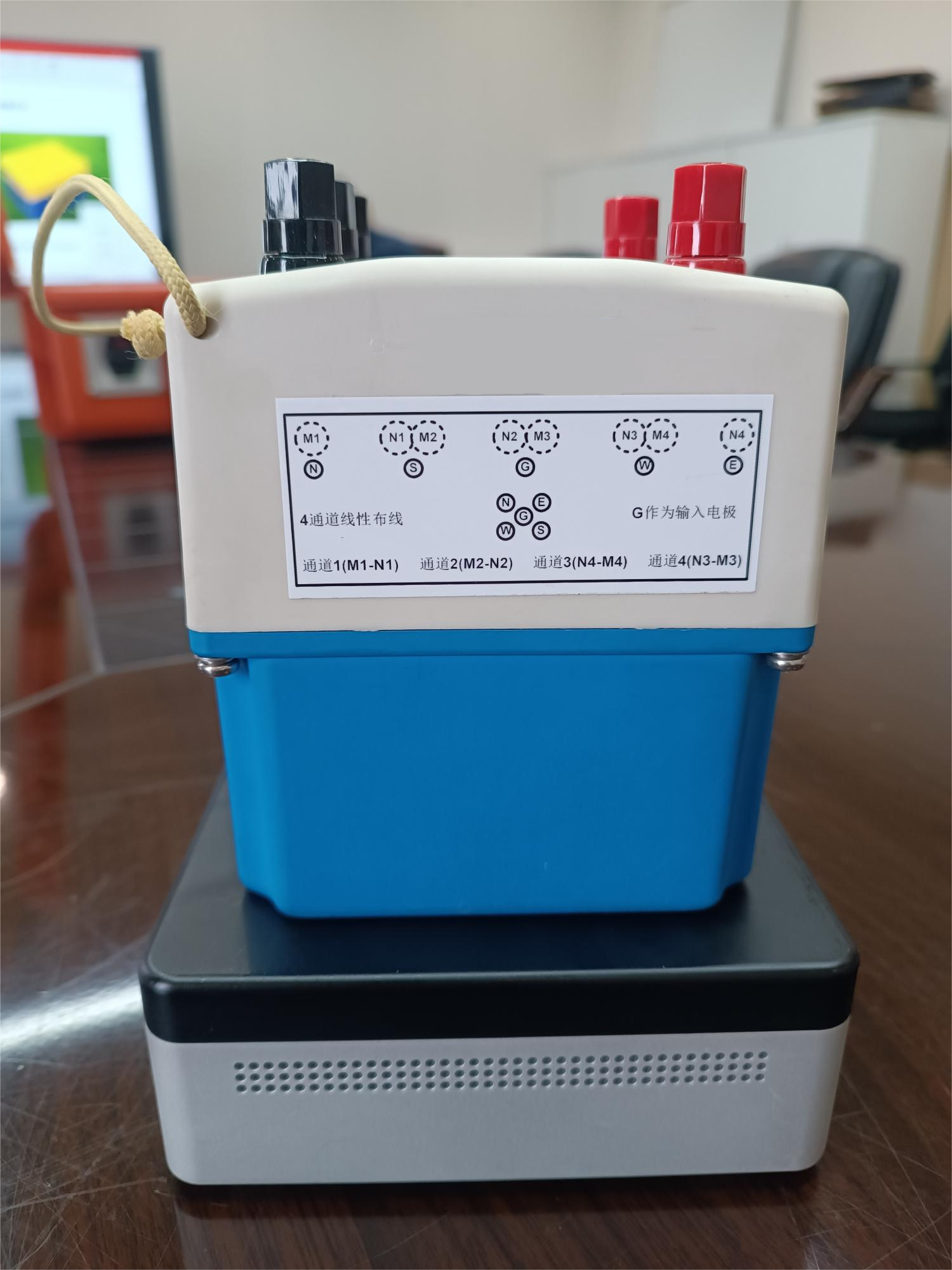

With IP67 waterproofing, the IPU-4C survives accidental immersion (up to 1 meter for 30 minutes) and dust. The wireless charging and data recovery means you never open the enclosure, preserving the waterproof seal for years. No damaged USB ports or corroded connectors. The Hyper3K transmitter includes comprehensive protection circuits (over-voltage, over-current, over-temperature, short-circuit, open-circuit) – you will not blow a power stage due to a wiring mistake. Mean time between failures (MTBF) is significantly higher than comparable systems.

Real-Time Monitoring Prevents Data Voids

Using 4G or LORA , you can monitor every receiver's status from your office or camp computer. If a receiver shows low battery or high noise, you can dispatch a technician only to that location, rather than checking all stations. Prevent data voids before they happen . The receiver's ability to compute IP results on board and display them on your mobile phone means you can verify data quality immediately after placing each station.

Cost-Benefit Summary Table

Detailed Specifications – Reliability Focus

Table 1: IPU-4C – Durability and Efficiency

Table 2: Hyper3K – Protection and Reliability
