GPS PPK Kit for DJI Drone Phantom 4 and Mavic 2 Pro

With GPS PPK Kit, the drone will be in performing high-precision geodetic aerial photography and topographic and geodetic works - integrated automated solutions.

Quantity:
  • GPS PPK
  • GOLD

Product Description

PPK drone system

Application:

1: Collecting high-precision data for mapping, surveying and other high accuracy needs.

2: Get high-precision routes of area. Improve operation safety and efficiency.;

3: Power Checking :Obtain high-precision data of power line;

4: Mine measurement: Obtain the surface change of the mine, and the volume of filling.

 5: Planning and designing of water conservancy cities, providing high-precision topographic maps and contour lines.

Feature:

Light-weight multi frequency PPK

Supports GPS L1/L2,GAL E1/E5, and BeiDou B1/B2

Simple software interface and simple workflow

Automatic processing GNSS data and geotagging images by one button click

Show the result in trajectory plot and the images on online map

The result can be directly used by image processing software, i.e.,Pix4D, Agrisoft, etc.

Support Base Station data from CORS or other brands GNSS Receiver.


Technical Specification for GPS Receiver


Models

F1

F9

Mechanical

Size

60x50x15 mm

46.25*26.44*11.5 mm

Weight

18g

30g

Operating T

-25 ~+60

-25 ~+60

GNSS

Signals

GPS/QZSS L1 GLONASS L1

Beidou B1

Galileo E1

SBAS

GPS L1/L2,

GLONASS L1/L2

BeiDou B1/B2,

Galileo E1, E5

SBAS

Tracking channels

72

184


Interface

Event ,TFcard

Event ,TFcard

Led

Power,logging,SV,Event

Power,logging,SV,Event

Positioning

H

2cm+1ppm

5mm + 1ppm

V

4cm+1ppm

10mm + 2ppm


Update rate

10Hz/5hz

5Hz up to 10Hz

Electriacl

Input voltage

5V,8V-35V

5V,8V-35V

Antenna Dc

5V

5V

Average Current

consumption

25mA

25mA

Data

storage

16GB

16GB

Data format

Rinex

Rinex

Connetivity

Antenna

Mcx

Mcx

Product Show

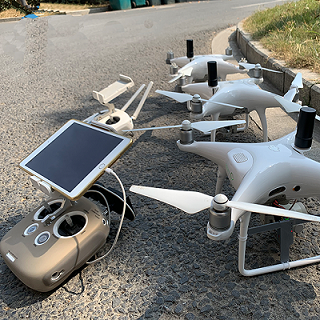

dji ppk rtk

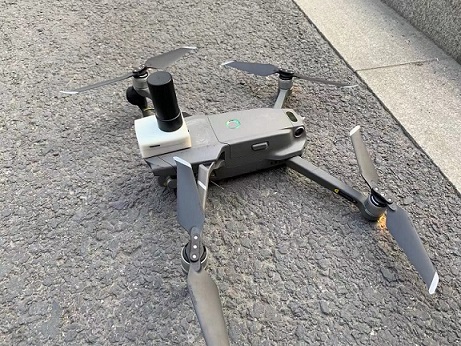

Mavic 2 Pro
