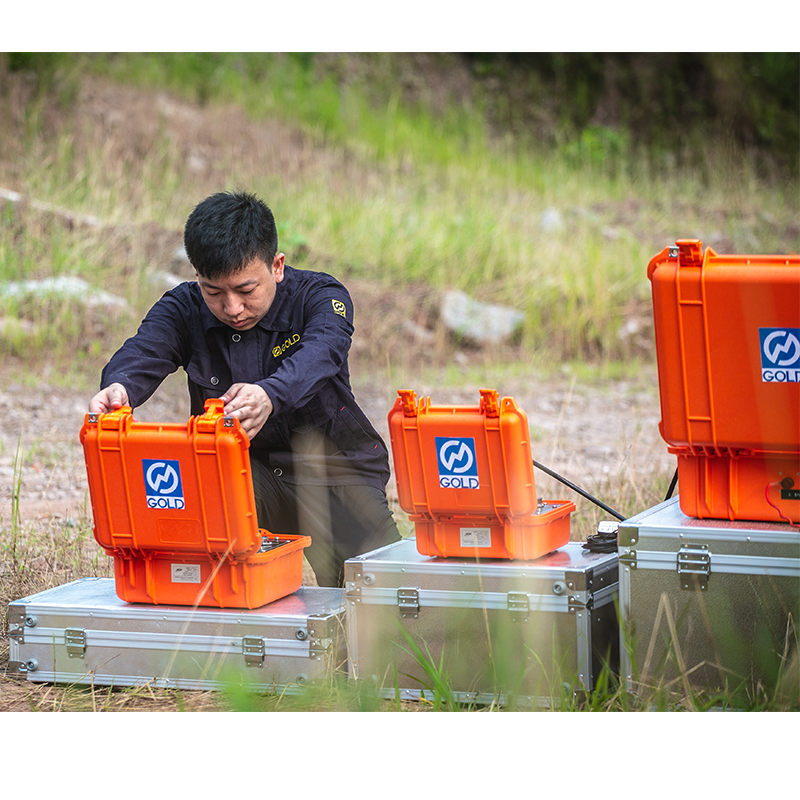

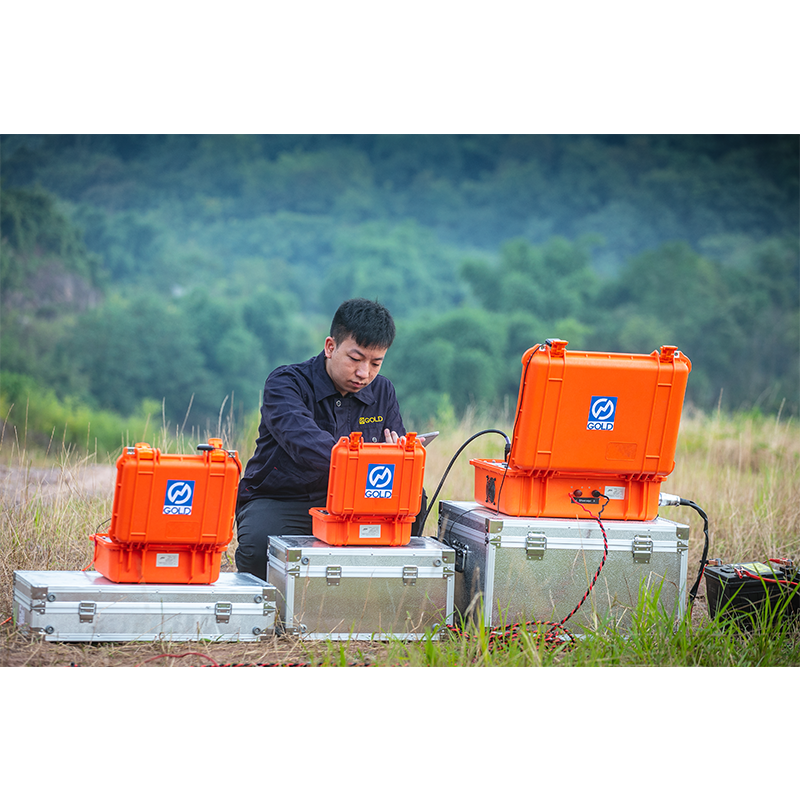

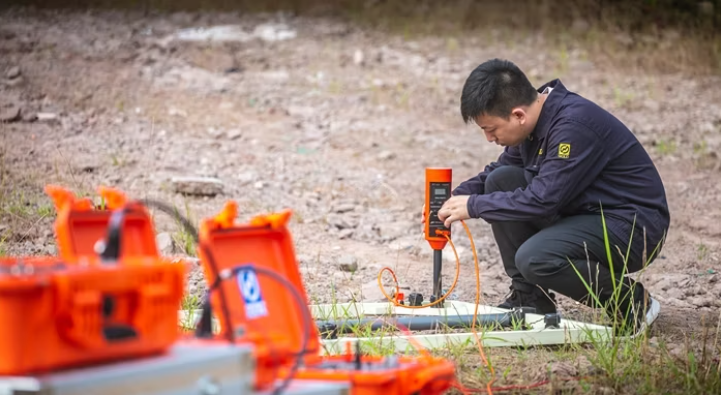

WTEM-3: Protecting Lives and Livelihoods Through Real-Time Subsurface Risk Monitoring

Landslides, sinkholes, subsidence, and flooding are not sudden, unpredictable catastrophes—they are the culmination of incremental subsurface changes that occur over days, weeks, or months before surface failure. The WTEM-3 System is engineered as a community-scale geotechnical hazard early warning platform, providing continuous, real-time monitoring of the subsurface conditions that precede disasters. Deployed as a permanent sensor network on high-risk slopes, above mine workings, or along flood-prone valleys, it detects and reports the progressive saturation, internal erosion, and ground movement that signal increasing risk. This intelligence is automatically processed into actionable alerts—traffic-light risk levels, SMS notifications, and automated public warning interfaces— that provide emergency managers and communities with the lead time essential for evacuation, road closures, or mitigation works. By turning an invisible threat into a quantified, trackable, and predictable risk, the WTEM-3 transforms disaster response from reactive emergency management into proactive community protection.

Progressive Slope Saturation and Failure Precursor Detection targets the root cause of most rainfall-induced landslides. The system’s buried sensor arrays generate daily 3D resistivity models of the slope, tracking the movement of wetting fronts, the development of perched water tables, and the progressive saturation of failure planes with depth. As moisture content and saturation patterns change, automated change detection algorithms compare each new model to a baseline dry-season image, calculating quantitative risk indices based on thresholds calibrated to local soil types and slope geometry. When parameters exceed user-defined alert levels—for example, when a slip surface reaches ninety percent saturation—the system can automatically trigger alerts, sending messages to predefined distribution lists, updating a publicly accessible web dashboard, and even activating warning beacons or automated road barriers. This nowcasting capability provides a decision-support tool of unprecedented precision for emergency managers, turning qualitative “this slope looks wet” assessments into a quantitative, tracked, and defensible risk protocol.

Subsidence and Sinkhole Early Warning Beneath Critical Infrastructure protects roads, railways, and buildings from catastrophic collapse. Many sinkholes are preceded by the progressive migration of fine-grained soil into underlying void spaces—a process that changes subsurface density and moisture patterns long before any surface expression. The WTEM-3, deployed as a permanent array beneath a highway or along a pipeline corridor, can detect these antecedent changes. It images the growth of low-resistivity anomalies that indicate saturated, loosened soil zones, and can track the upward migration of void signatures toward the surface. When a developing anomaly reaches a critical size or proximity to the surface, the system generates a risk alert with specific location coordinates and a quantified probability of imminent collapse. This provides engineering departments with the lead time needed to close roads, install ground improvement measures, or warn the public, preventing the sudden, life-threatening collapses that occur every year in karst terrains and over abandoned mines.

Flood Risk and Levee Integrity Monitoring addresses one of the most common and costly natural hazards. The WTEM-3 can be installed along the crest or toe of earthen levees, floodwalls, and embankments to monitor for internal erosion (piping) and saturation-driven weakening during high-water events. As floodwaters rise, the system tracks the saturation profile through the levee body, detecting developing seepage pathways long before they become visible as boils or sand volcanoes on the landward side. It can also monitor the foundation beneath the levee, identifying zones where water is undercutting the structure. This continuous, real-time integrity assessment provides flood managers with the objective data needed to decide whether a levee is safe to overtop, requires emergency sandbagging, or is at imminent risk of breach—decisions that can mean the difference between successful flood defense and catastrophic inundation of protected communities.

Geotechnical Hazard Early Warning Specifications
