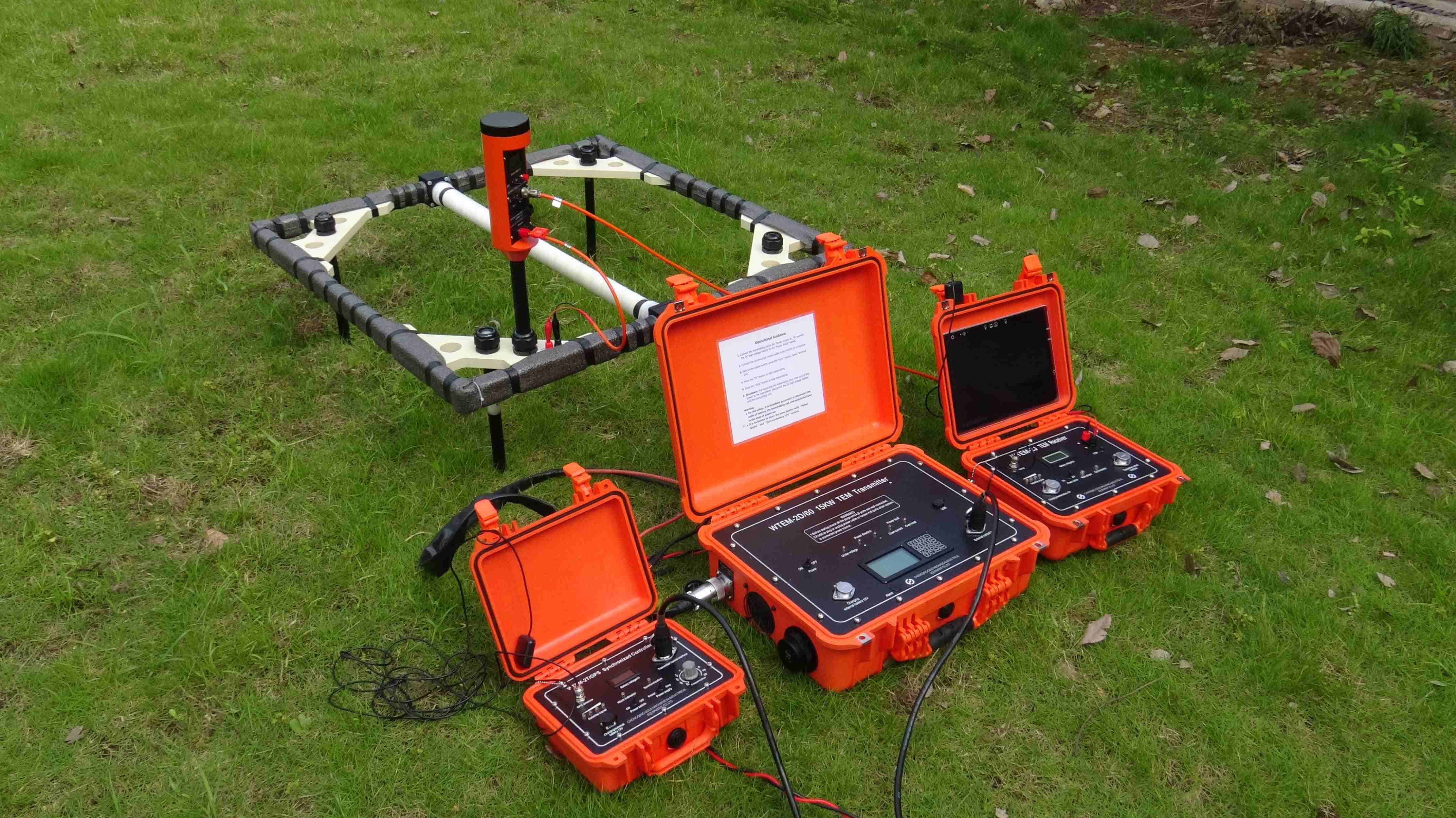

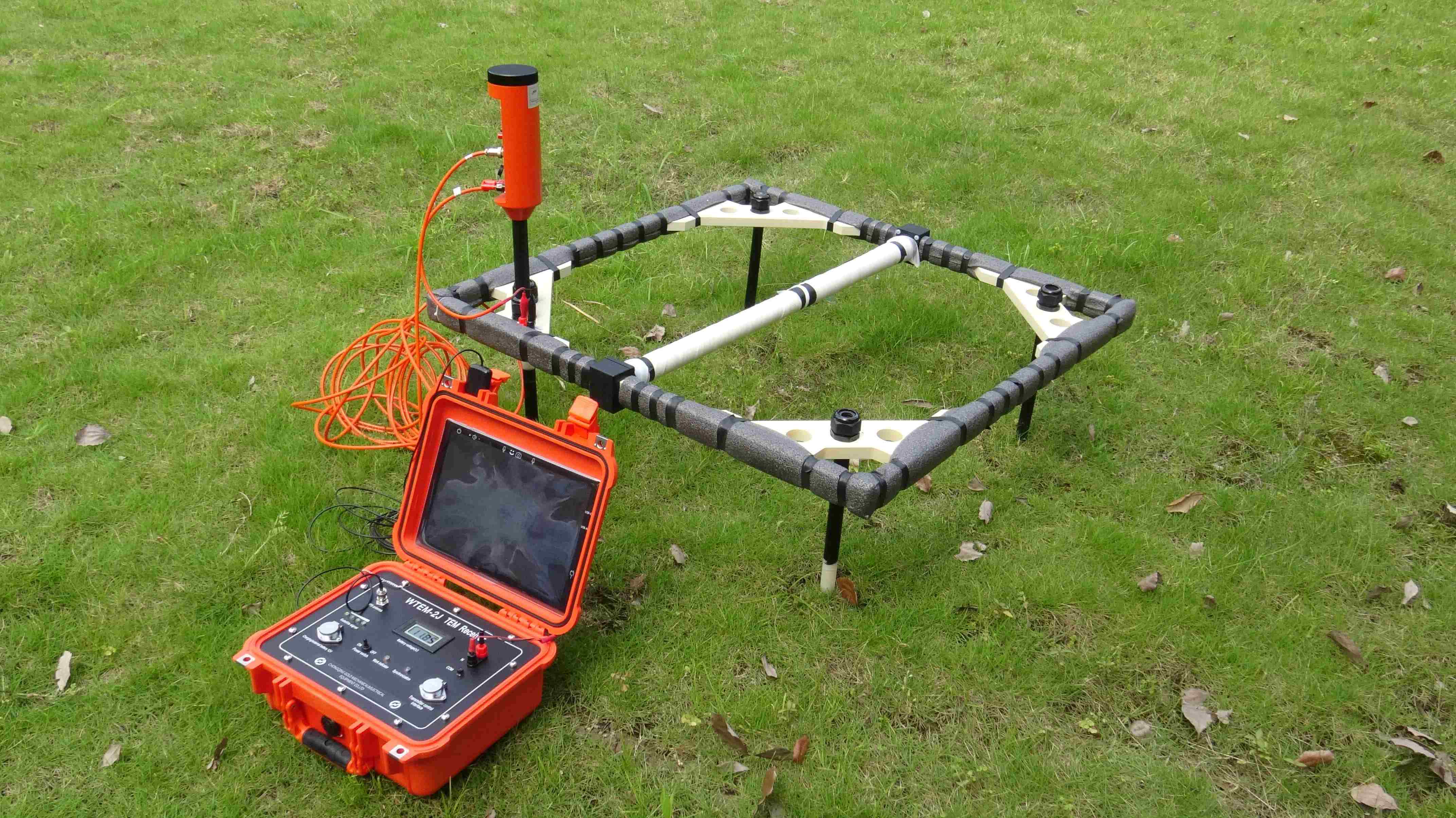

Geophysical Noise Cancellation System Multi Turn Receiver Coil

WTEM-3: Delivering Publishable-Quality Data for Earth Science Discovery and Method Development

Geophysical research demands instrumentation that is not just field-worthy but scientifically rigorous, customizable, and verifiable. The WTEM-3 Research Edition has been developed in consultation with leading academic groups to serve as a true research platform, providing full access to raw data streams, open APIs for custom processing, and petrophysical laboratory integration for rigorous calibration. It enables graduate students, postdocs, and principal investigators to test novel inversion algorithms, develop new interpretation methods, and conduct controlled laboratory-to-field scale experiments with the confidence that their instrumentation is contributing zero systematic error. For the research community, the WTEM-3 represents a democratization of cutting-edge TEM technology, providing the flexibility and transparency required to advance the science of applied geophysics.

Raw Data Access and Algorithm Development Environment is the cornerstone of the research platform. Unlike commercial systems that pre-process and filter data in ways that may obscure subtle signals or introduce artifacts, the WTEM-3 Research Edition provides complete, unfiltered access to the digitized receiver waveforms and all system state parameters. Data is output in open, documented HDF5-based format with full metadata, readable in Python, MATLAB, R, or Julia without proprietary software. The system's software development kit (SDK) includes example scripts for custom stacking, noise filtering, and inversion, allowing researchers to implement and test their own algorithms directly on field data. For PhD projects developing novel inversion schemes or exploring non-standard processing workflows, this level of access is not a luxury; it is an absolute requirement for defensible, innovative science.

Controlled Laboratory-to-Field Scale Experiments are enabled by the system's wide dynamic range and calibration rigor. A researcher can first characterize a rock sample's resistivity in the lab using a benchtop system, then embed the same sample in a sand tank and map it with a miniaturized WTEM-3 probe, and finally deploy the full field system over a known geological feature to validate upscaling relationships. This seamless integration across scales allows rigorous testing of petrophysical models and inversion algorithms under controlled conditions before applying them to complex field data. The WTEM-3's superb repeatability (<0.5% variation on calibration targets) ensures that observed differences are due to changes in the target, not drift in the instrumentation. For researchers studying time-lapse processes (e.g., contaminant transport, freeze-thaw cycles, or CO₂ injection), this stability is essential for distinguishing real signals from instrument noise.

Petrophysical Correlation and Multi-Physics Integration Modules bridge the gap between geophysical measurements and traditional geological observations. The system can be directly integrated with core scanners, spectral gamma loggers, and magnetic susceptibility meters in a laboratory setting, allowing researchers to build comprehensive databases of physical property relationships for specific rock types, mineralization styles, or alteration assemblages. These petrophysical libraries can then be uploaded to the field system's interpretation engine, enabling the field inversion to output not just resistivity but probability maps of lithology, alteration type, or mineral grade. For economic geology researchers, this provides a pathway to quantitative, machine-learning-based interpretation of field geophysical data, moving beyond qualitative anomaly mapping to statistically robust predictions of what the anomalies actually represent in terms of rock properties and economic potential.

Research Specifications
