Product Description

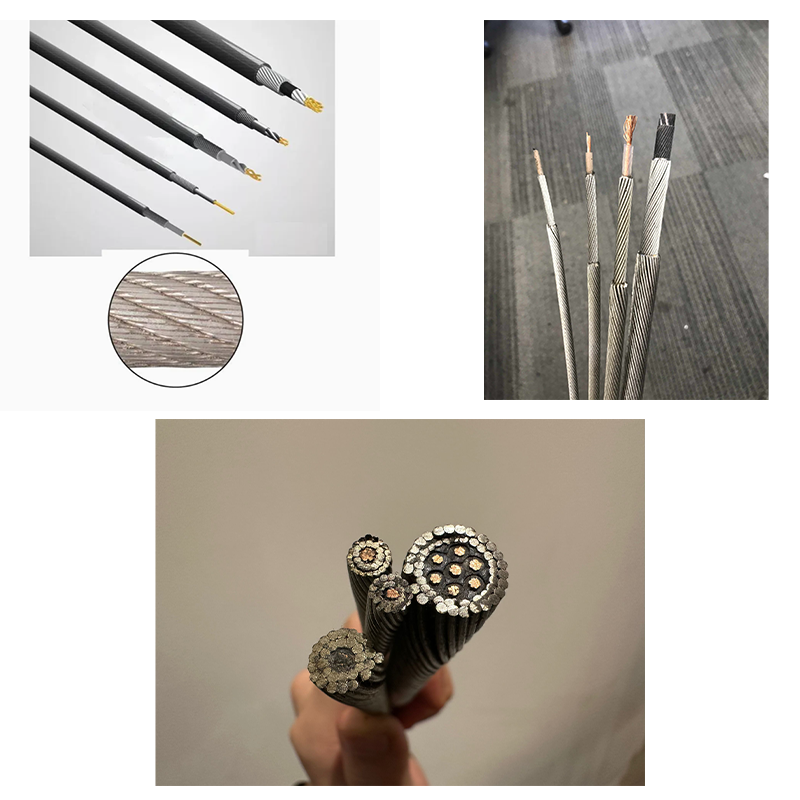

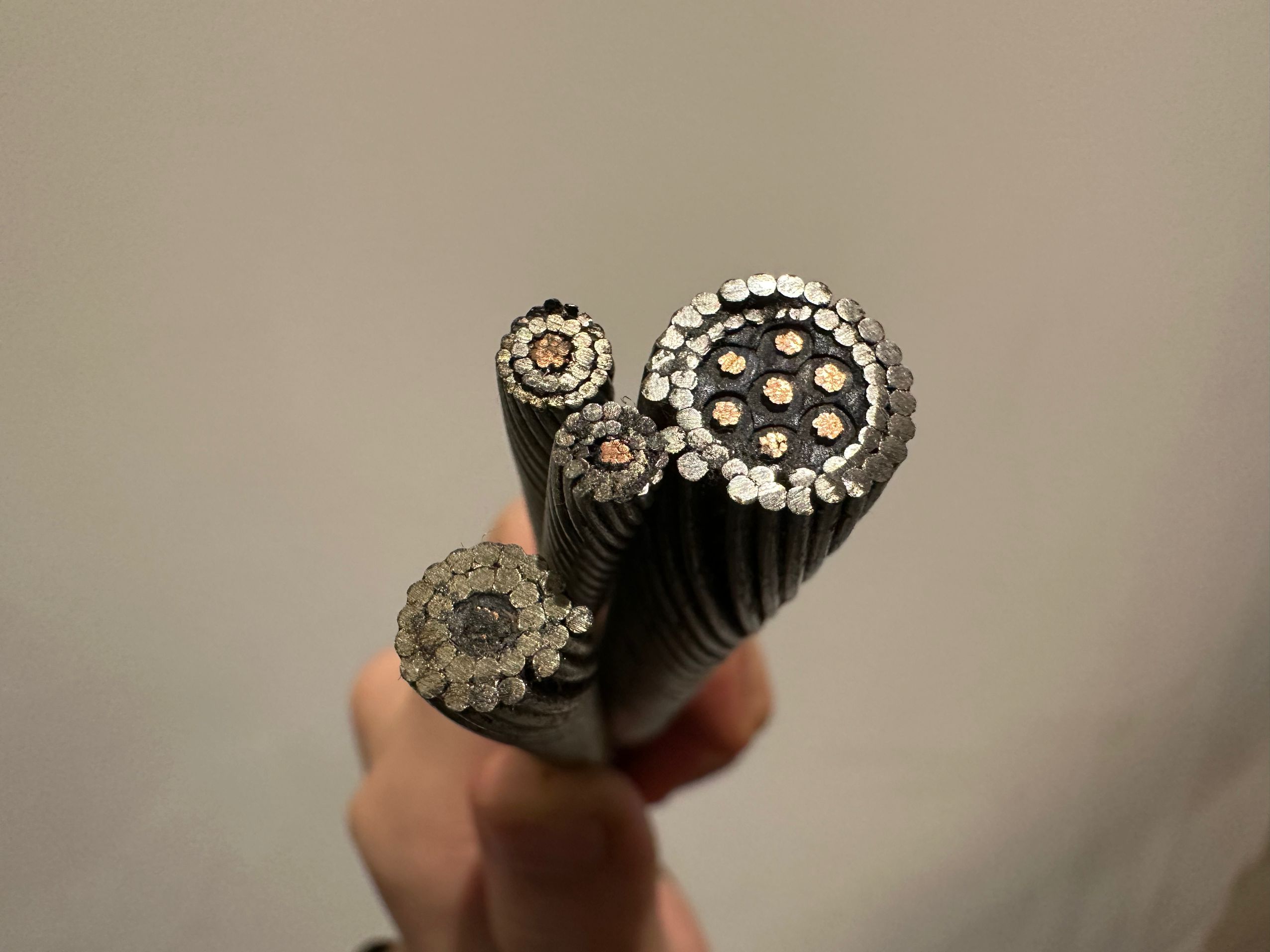

Enhanced Thermal Well Cable is engineered for the unique demands of hot dry rock exploration and production. With a maximum operating temperature of 300 degrees Celsius, this cable maintains electrical and mechanical integrity where conventional elastomers degrade. The 80 120 tension rule provides a clear operational guideline for safe deployment and retrieval in high-temperature wells.
Operational Specifications:
Weight in air from 145 to 509 kg per kilometer
Capacitance values ranging from 130 to 220 pF per meter
Compatible with exploration and mining operations

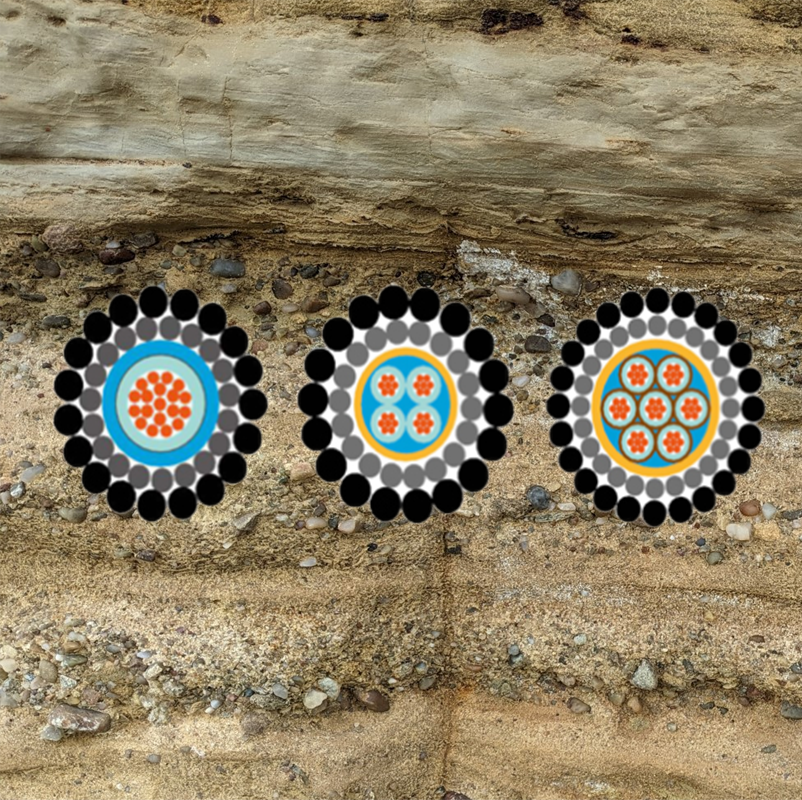

| Model | Diameter (mm) | Weight (kg/km) | Temp Rating (C) | Capacitance (pF/m) |
|---|---|---|---|---|
| W1TFE-HS-5.60 | 5.60 | 145 | 300 | 220 |
| W1TFE-HS-8.00 | 8.00 | 281 | 300 | 190 |
| W4TFE-8.00 | 8.00 | 281 | 300 | 190 |
| W7TFEP-11.80 | 11.80 | 509 | 300 | 130 |
