How to load F2 GPS L1/L2 PPK kit on DJI PHANTOM 4 Pro

Views:60     Author:Site Editor     Publish Time: 2020-12-18      Origin:Site

How to load GPS L1/L2 PPK kit on DJI PHANTOM 4 Pro

Please do as following steps:
1. Prepare PPK kit, Prepare PPK kit and related tools  and related tools

GPS PPK 1

2. Install support for antenna

 2.1 mix A and B glue with 1:1 ,and apply evenly on the bracket and then install it on the front of the drone

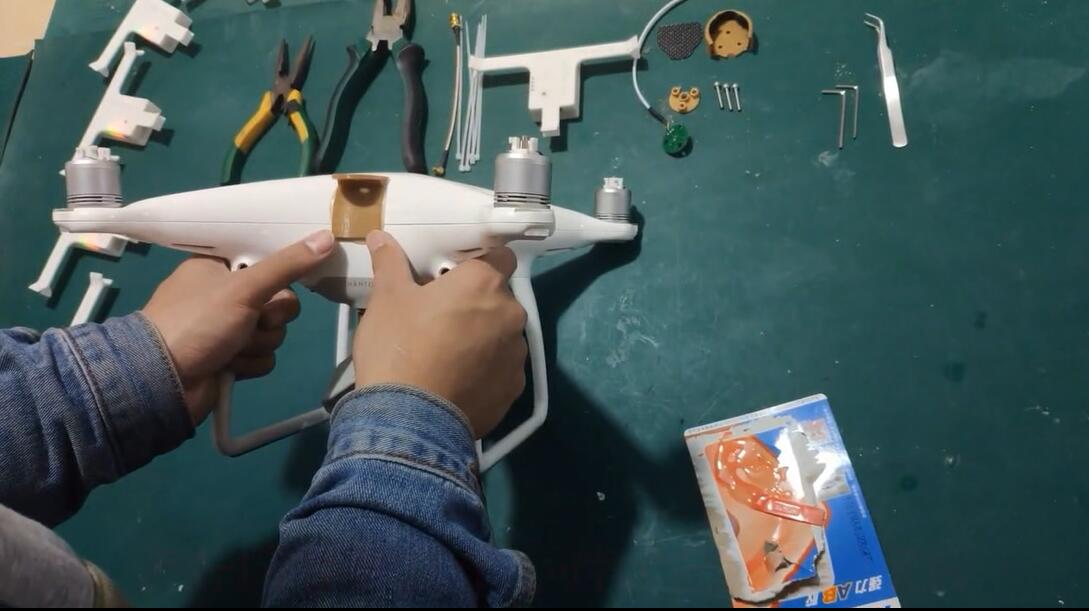

GPS PPK 2GPS PPK 3

2.2:Apply evenly on the bracket and then install it on the front of the drone

3.Install trigger module
3.1:Remove lampshade

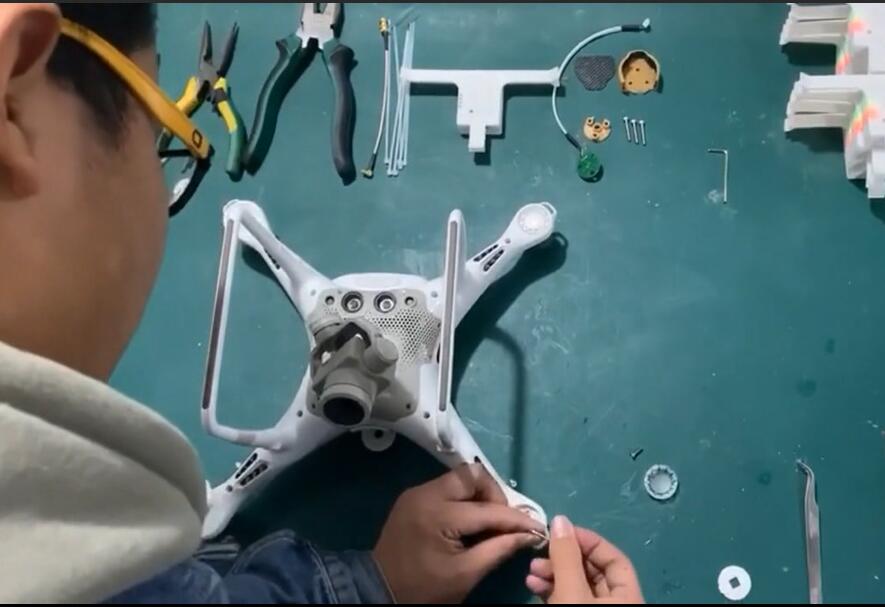

GPS PPK 4

3.2:Install trigger module and cover

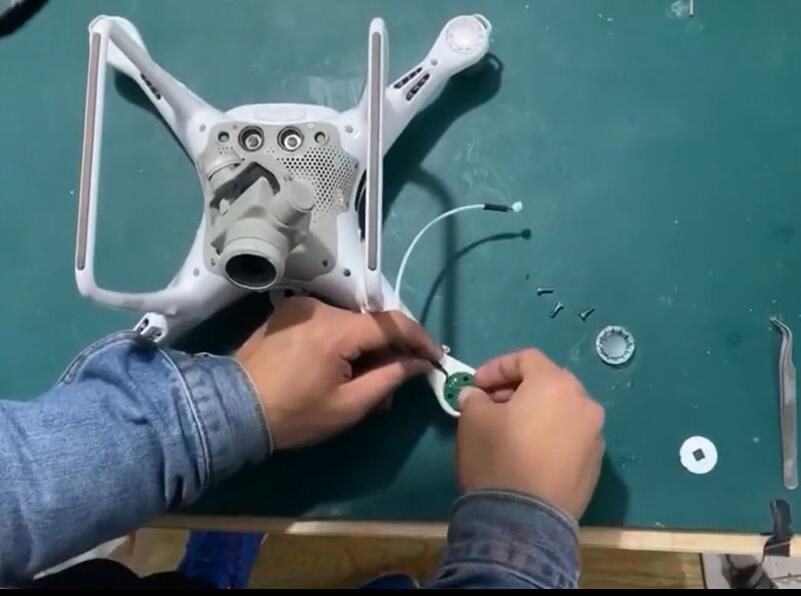

GPS PPK 5

4. Install PPK

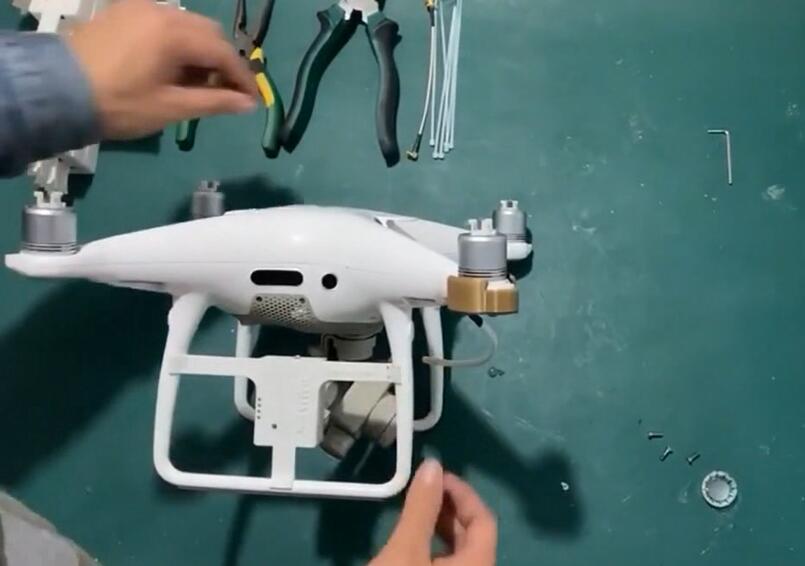

GPS PPK 6

4.1 fixed PPK Module and connected with  trigger module

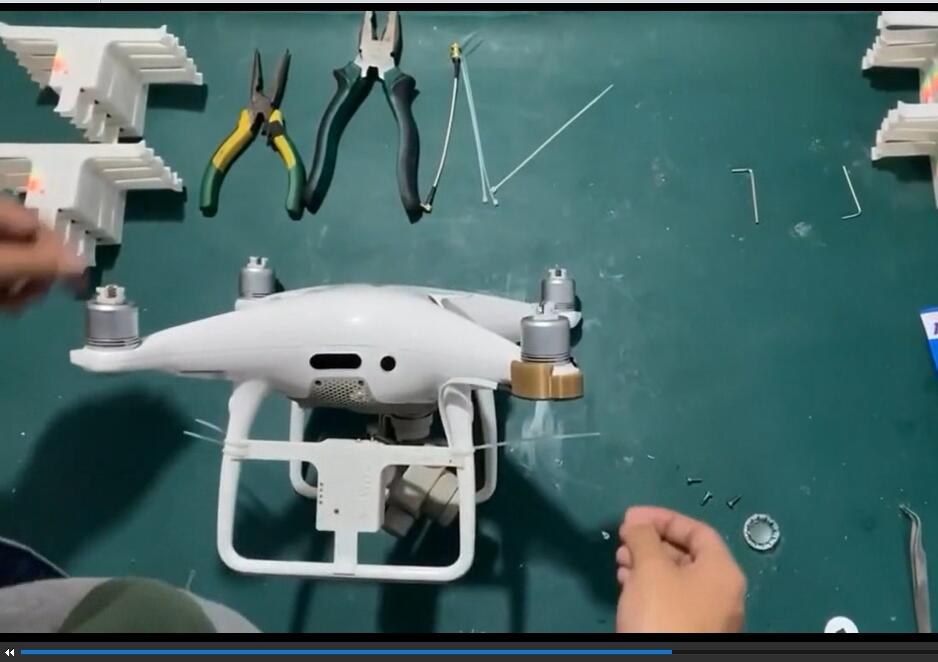

GPS PPK 7

 5. Install antenna

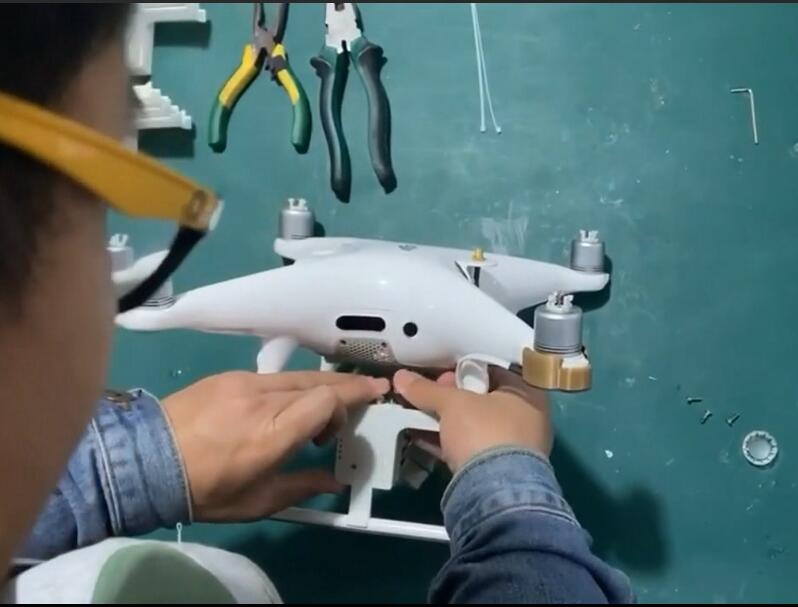

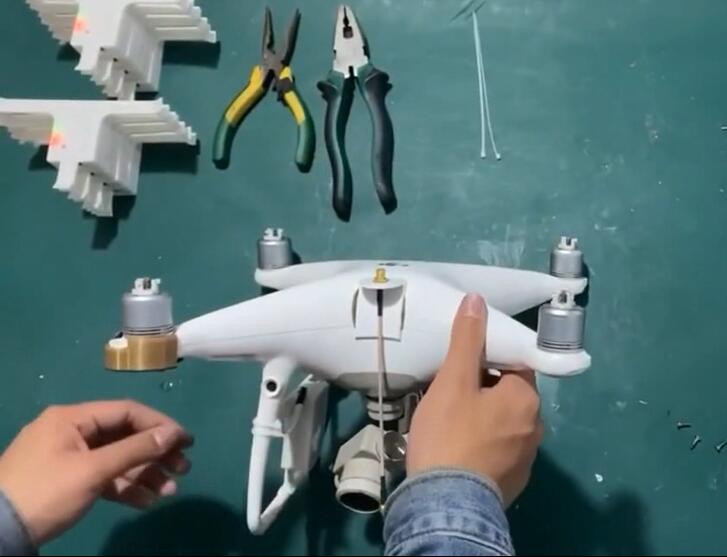

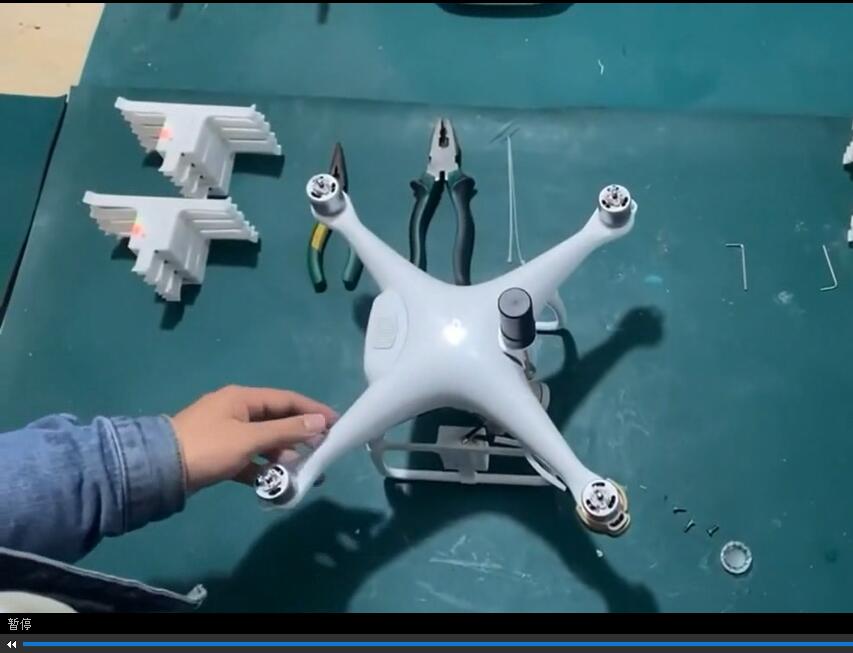

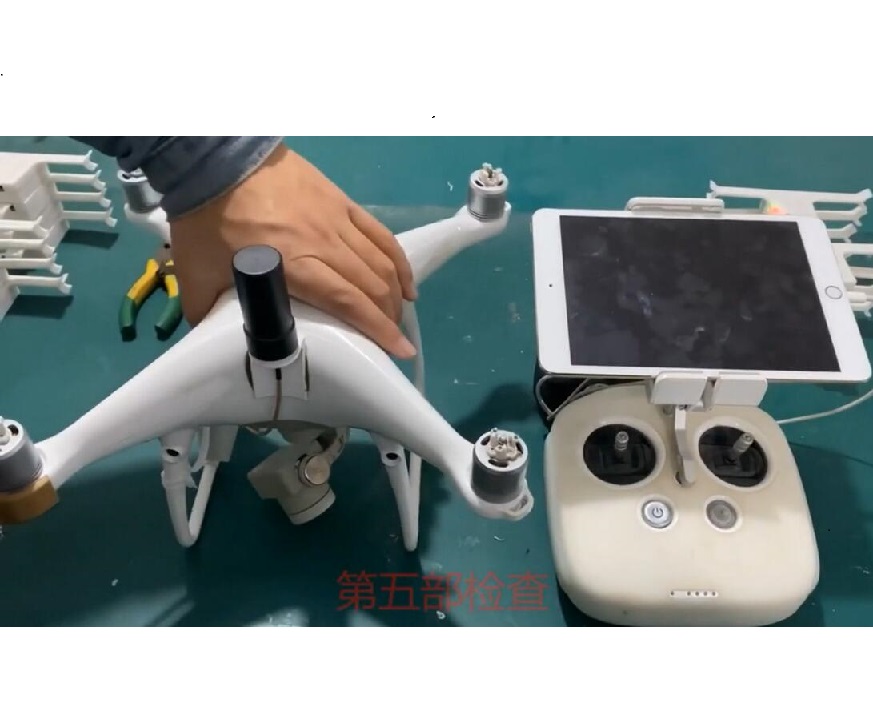

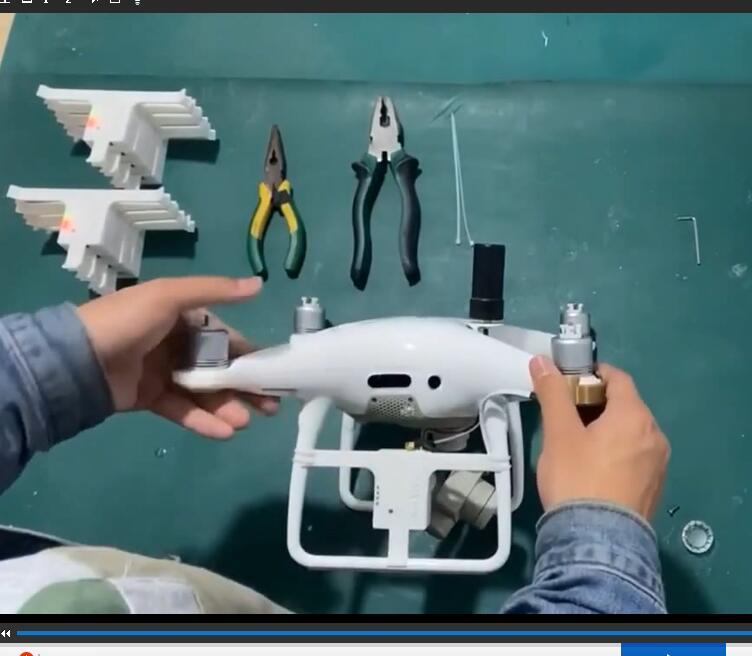

GPS PPK 8GPS PPK 9GPS PPK 10GPS PPK 11GPS PPK 12
