Product Description

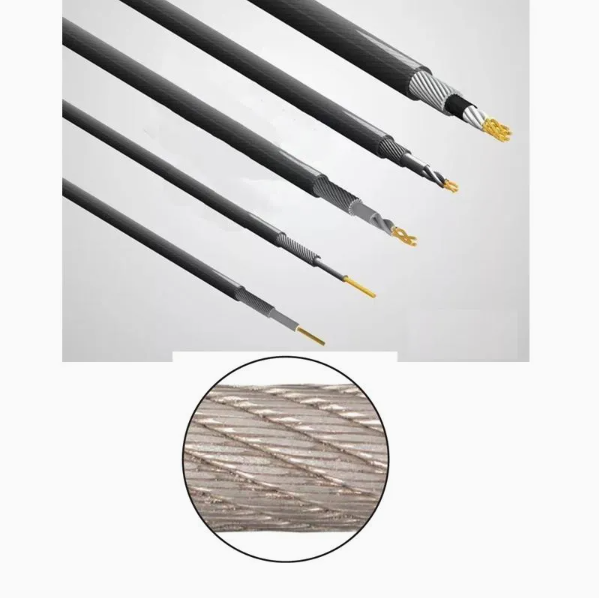

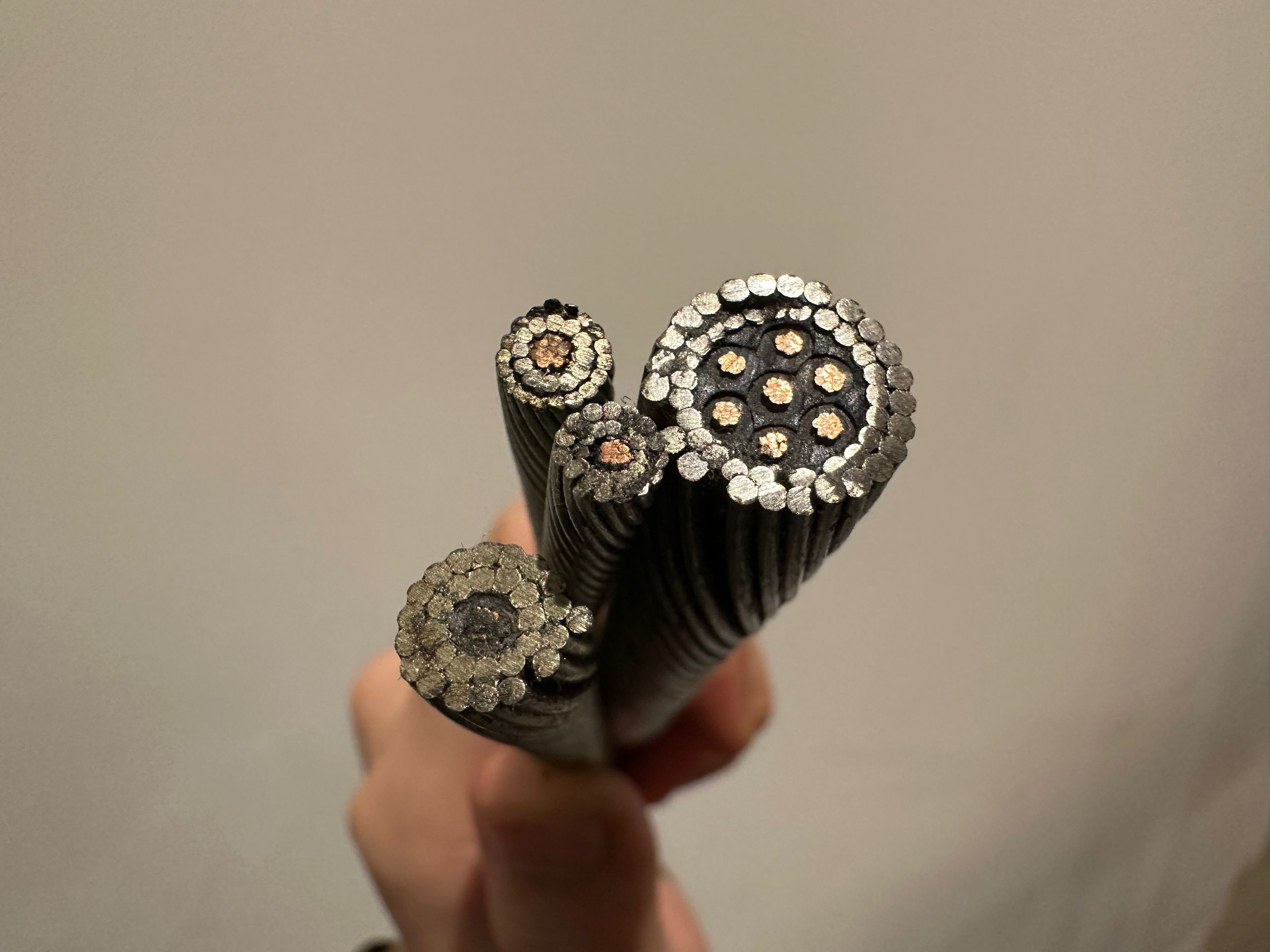

Engineered for water injection well monitoring and coalbed methane extraction, this steel pipe cable provides the sealing integrity required for regulated well operations. The 316 stainless steel outer tube resists corrosion while maintaining temperature stability up to 232 degrees Celsius in select models. Electrical performance is optimized with capacitance values ranging from 140 to 260 pF per meter, supporting accurate data transmission.
Operational Features:
Lightweight options as low as 42 kg per kilometer
Insulation layer thickness from 1.25 to 2.60 mm
Compatible with simultaneous measurement and adjustment
| Model | Diameter (mm) | Weight (kg/km) | Temp Rating (C) | Capacitance (pF/m) |
|---|---|---|---|---|
| G1FB-3.20 | 3.20 | 50 | 150 | 260 |
| G1F46P-3.20 | 3.20 | 42 | 232 | 140 |
| GW1B-3.50 | 3.50 | 60 | 150 | 140 |
| G1FB-6.35 | 6.35 | 138 | 150 | 150 |
