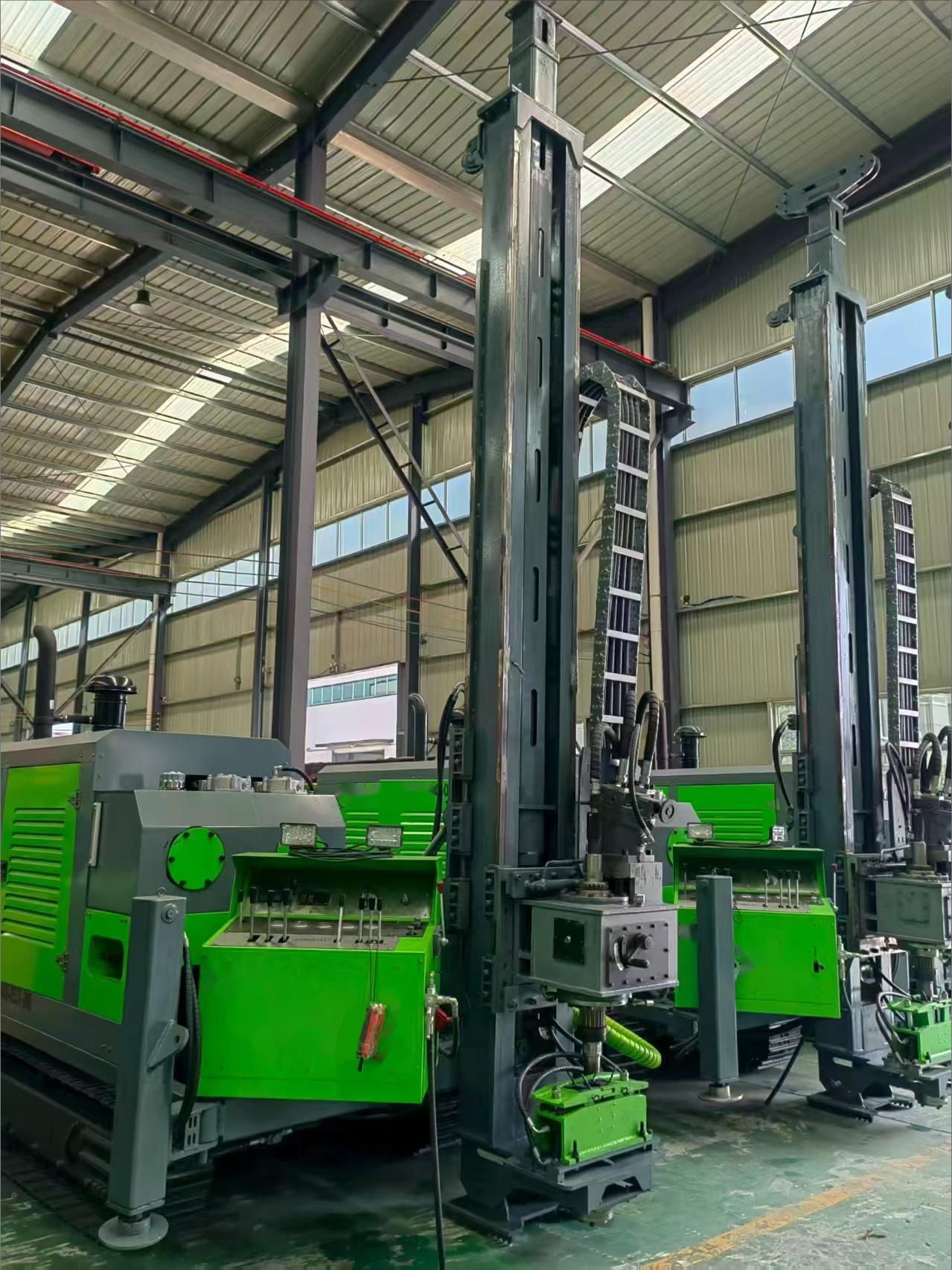

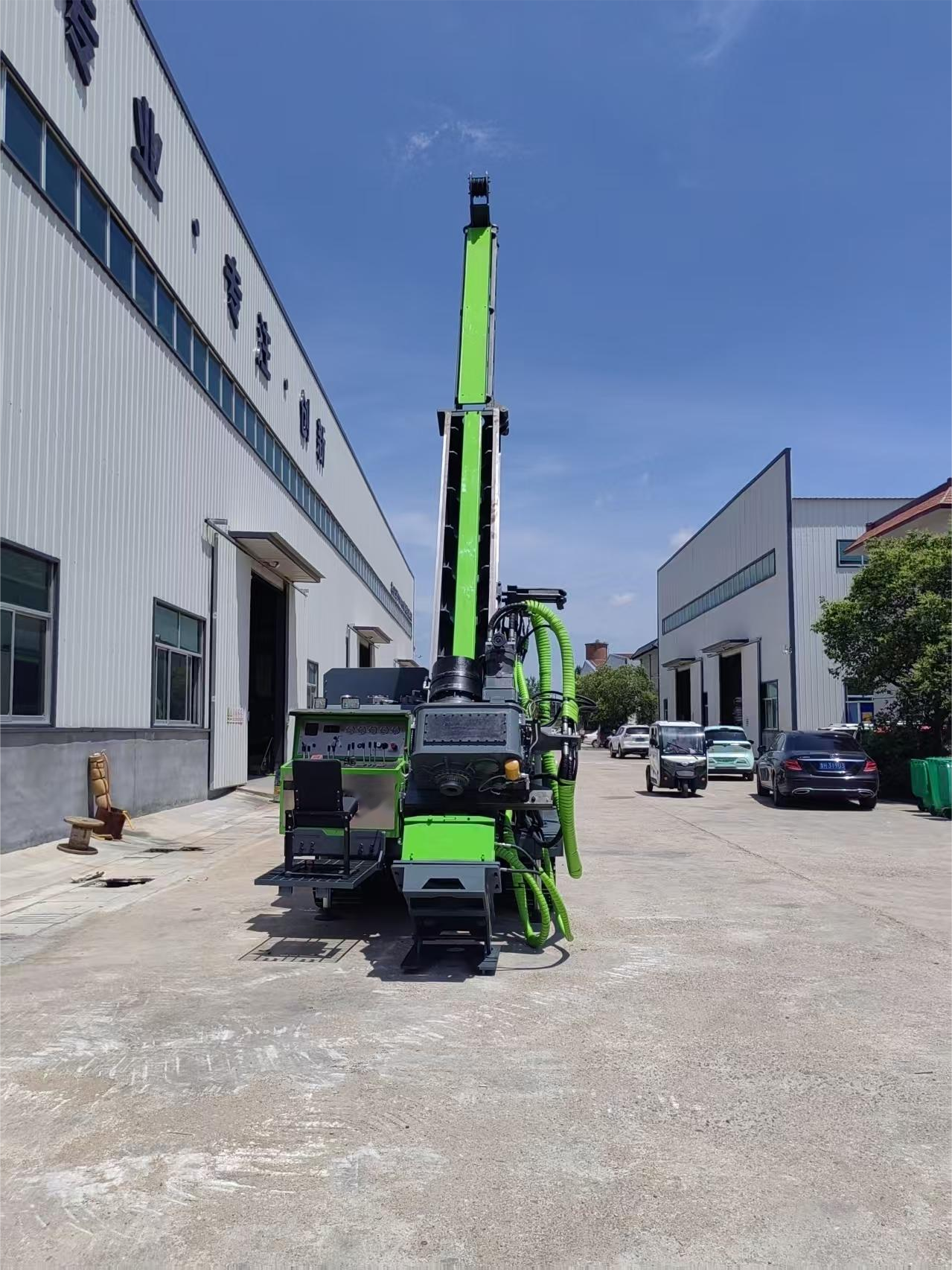

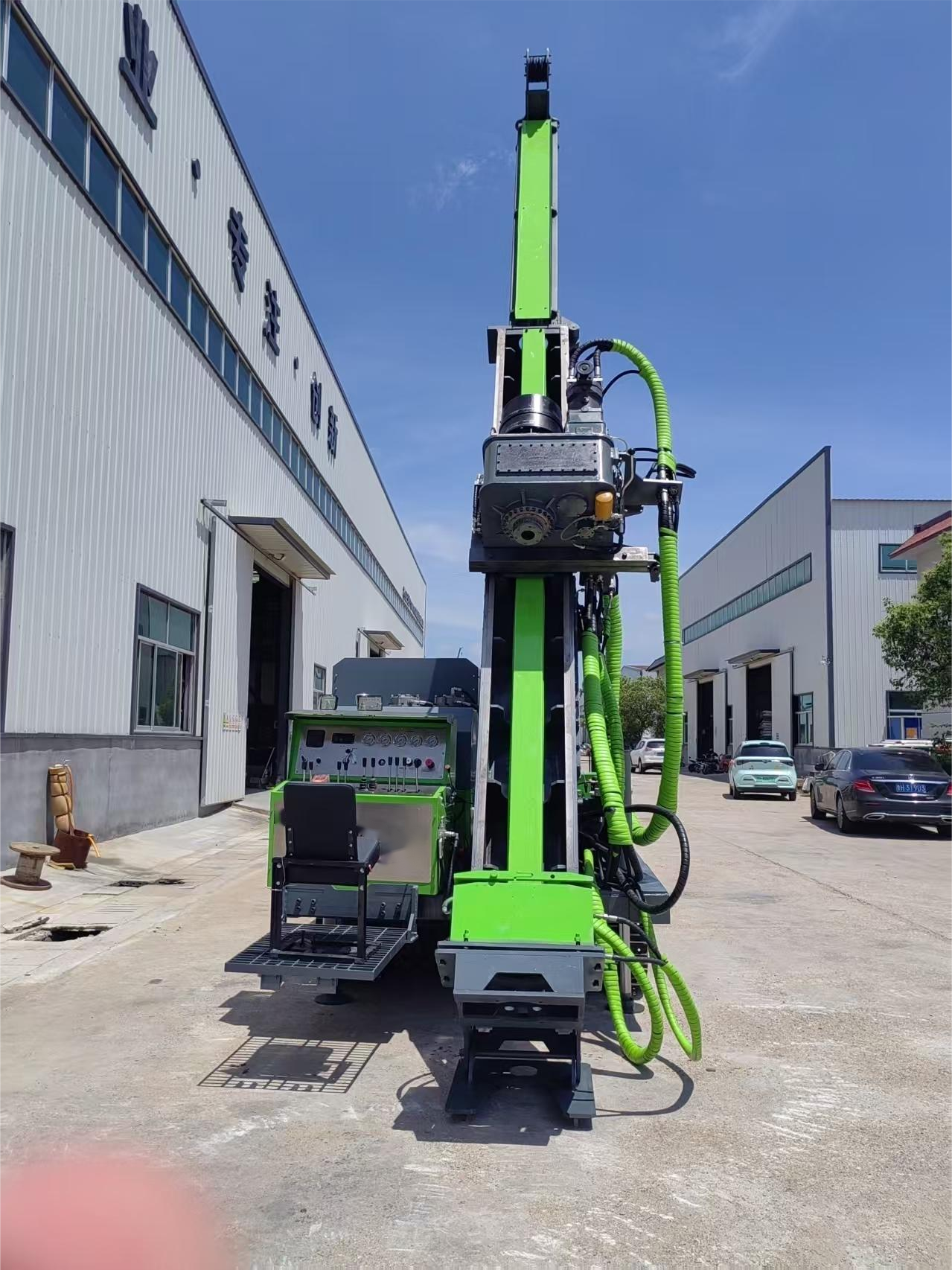

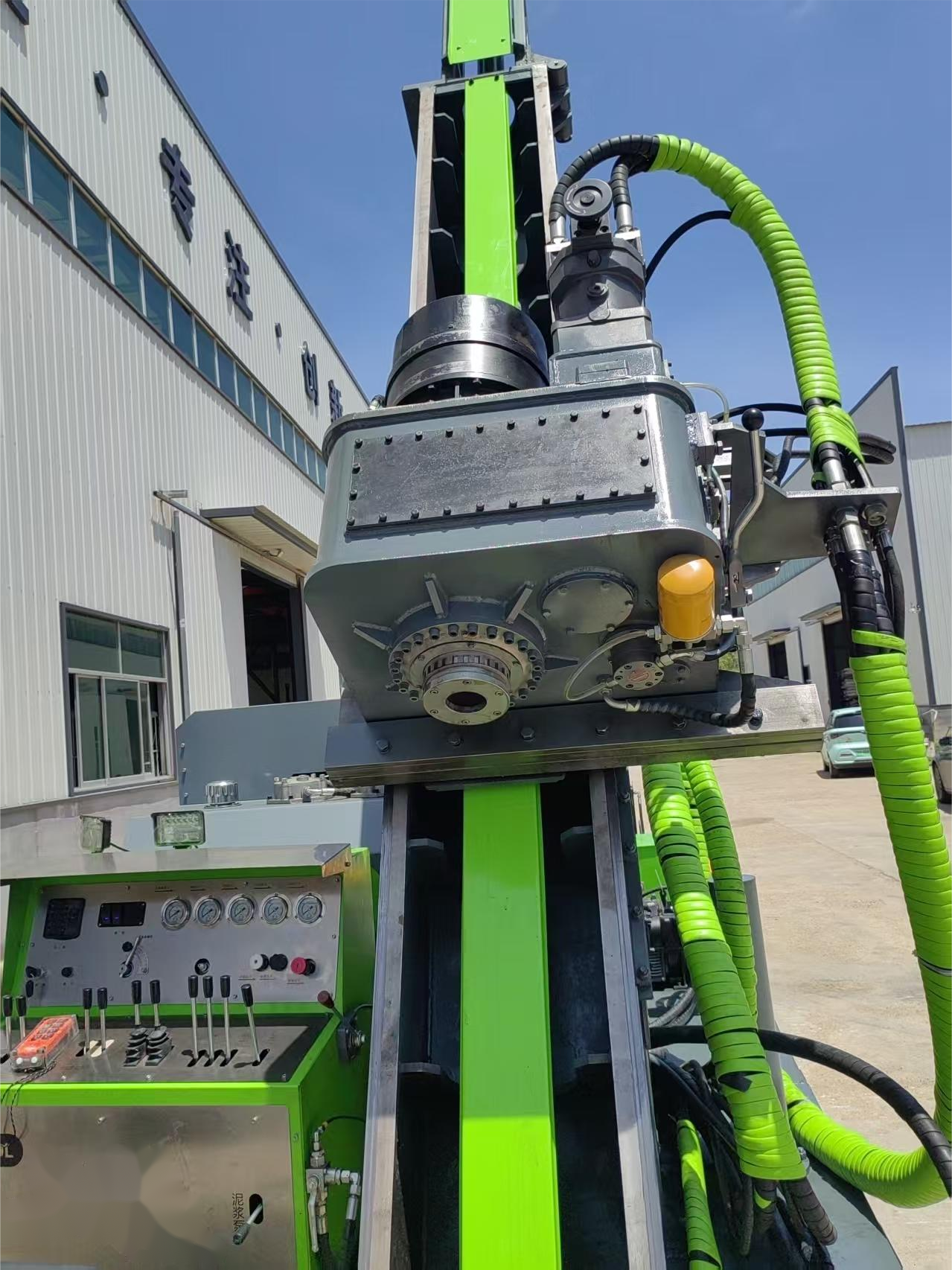

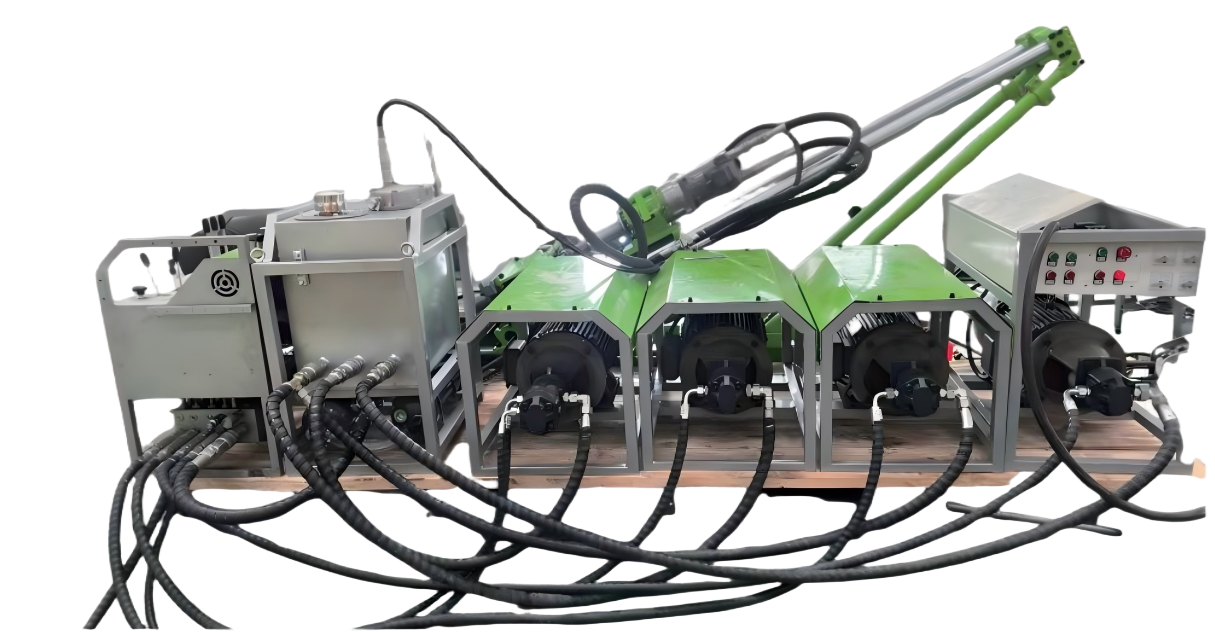

Multi Engine Hydraulic Drilling System Altitude Compensated Hydraulic Drill

The Logistically Efficient Platform for Remote Operations

In remote exploration, every kilogram and every module counts. The GD-300/600/800/1000 platform is engineered for logistical efficiency, with a constant 1700-kilogram total weight across all depth configurations. Whether you are drilling to 300 meters or 1000 meters, the transport requirement is the same: one light truck or trailer, no heavy haulage permits, no specialized equipment. It is the logistically efficient choice that simplifies planning and reduces mobilization costs.

The constant weight is a strategic advantage. Most drilling rigs increase in weight as depth capability grows, requiring larger trucks, stronger trailers, and more expensive permits. The GD platform defies this trend. Adding power modules adds weight, but the base frame and other components are optimized so the total remains 1700 kilograms. This means that a GD-1000 is no harder to move than a GD-300. For exploration programs with multiple site moves, this consistency slashes logistics costs and simplifies contracting.

The modular breakdown scales with depth. The GD-300 breaks into 5 modules, the GD-600 into 6 modules, the GD-800 into 8 modules, and the GD-1000 into 9 modules. Yet the heaviest module remains 130 kilograms across all configurations. This modular consistency means that the same handling equipment, the same number of personnel, and the same transport containers work for any depth. For remote camps where every kilogram of cargo is precious, this predictability is invaluable.

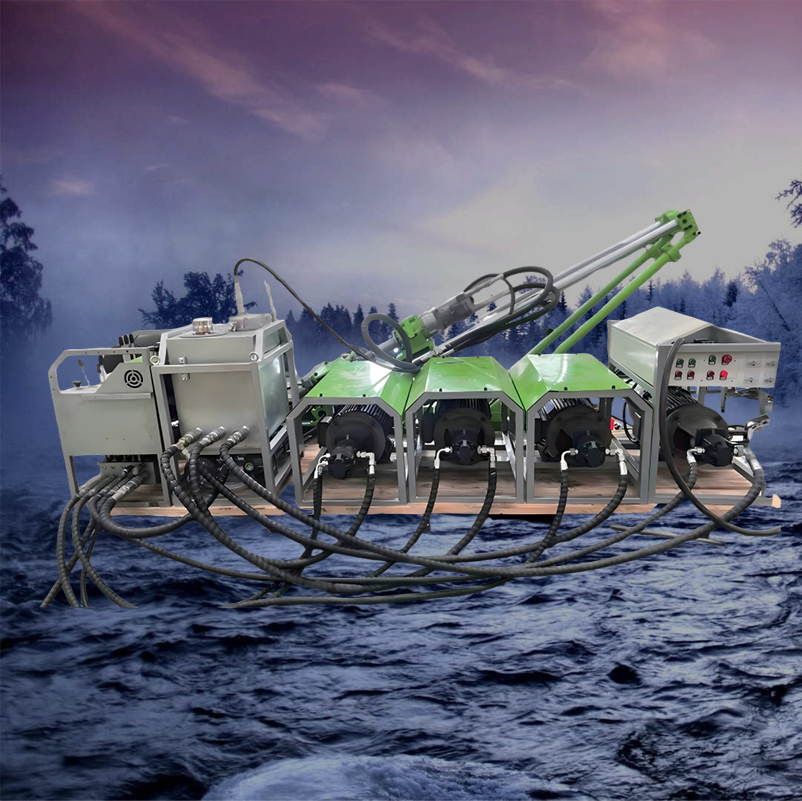

The platform’s power modules are designed for efficient transport. Each 22KW YE3-180L power unit measures 800×630 mm and weighs 130 kilograms—dimensions that fit standard cargo boxes and can be handled by two people. The modules can be stacked, palletized, or even backpacked over short distances. For helicopter transport, the modular breakdown allows sling loads that stay within aircraft limits. The GD platform is the most helicopter-friendly deep-drilling system available.

The GD-300/600/800/1000 platform is the logistically efficient choice that simplifies remote exploration. It delivers consistent transport weight, modular handling, and predictable assembly, regardless of depth configuration. When your supply line is long and your cargo space is limited, the GD platform is the rig that fits.

GD-300/600/800/1000 Logistical Efficiency Specifications
