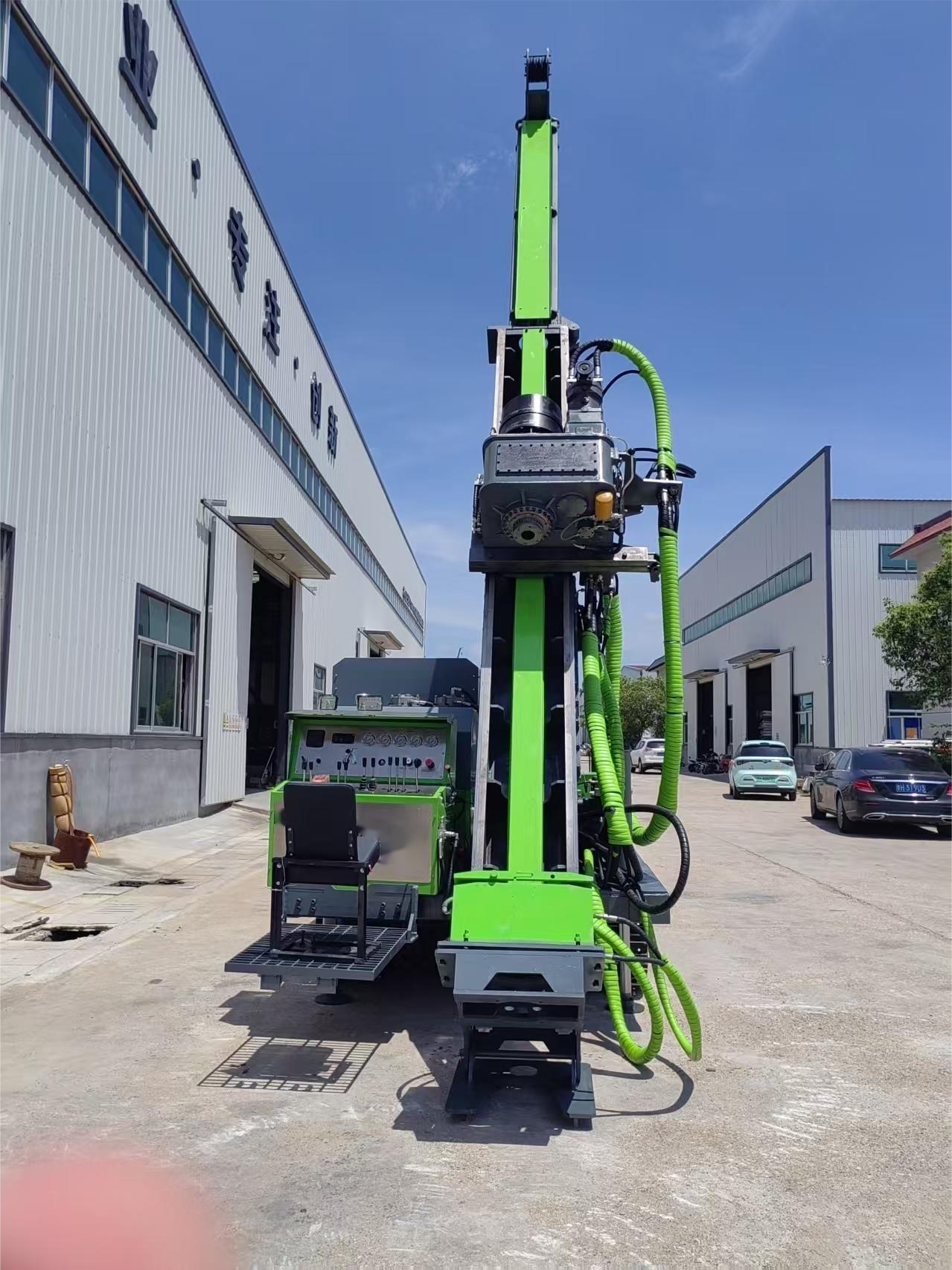

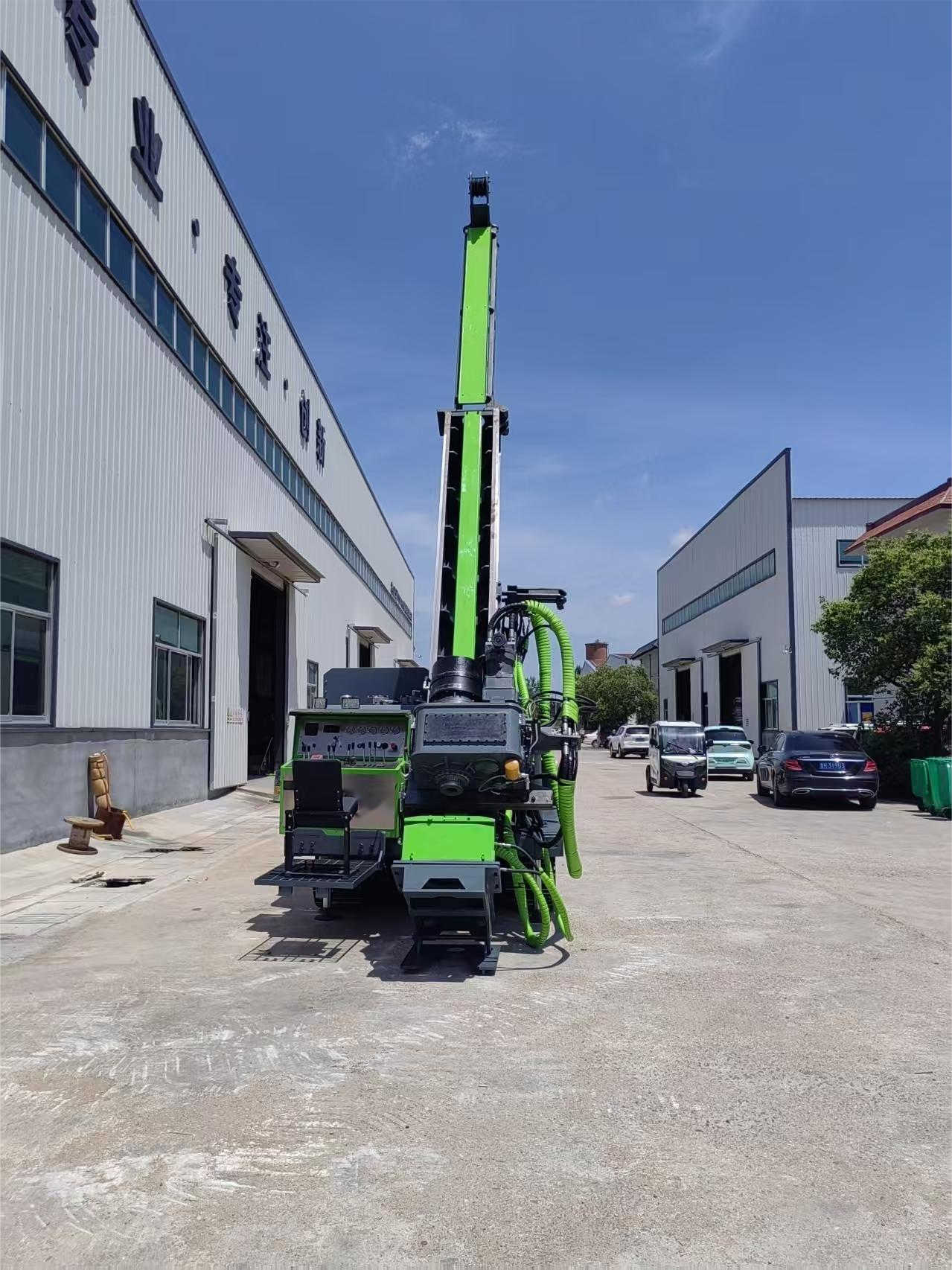

Remote Control Hydraulic Rig Steel Track Hydraulic Core Drill

 The Precision Deviation Controller for Accurate Resource Modeling

In resource definition drilling, borehole deviation is measured in meters, not degrees. A hole that wanders just 5 meters off target at 800 meters can miss the ore zone entirely, rendering the entire investment worthless. The GD-800L Fully Hydraulic Core Drilling Rig is engineered as a precision deviation controller, combining a 20-ton feed system, a zero-deflection tower, and smooth 2500 N.m hydraulic torque to maintain borehole straightness from collar to total depth. Weighing 5800 kilograms, this rig provides the mass, rigidity, and control that accurate resource modeling demands.

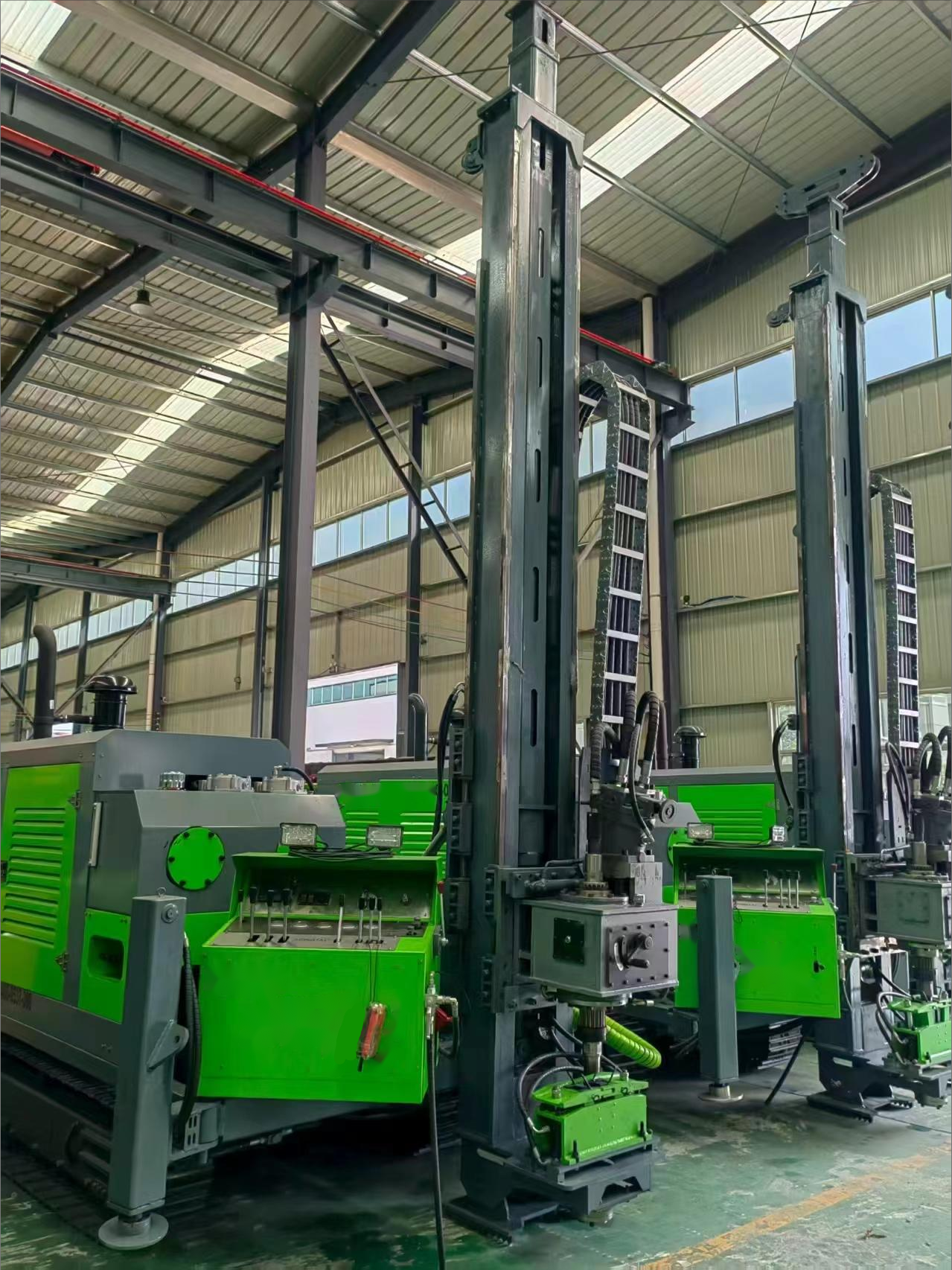

Deviation control begins with the ground-contact tower. Unlike pinned mast towers that flex under load, the GD-800L’s integrated tower transfers drilling loads directly to the earth, eliminating the bending and twisting that cause hole wandering. The 20-ton feed cylinder is precisely aligned with the tower axis, ensuring that the feed force is applied along a true line. The tower’s cross-section and bracing are engineered to resist lateral forces, even when drilling through dipping formations or fractured ground. The result is a borehole that stays within centimeters of its planned trajectory.

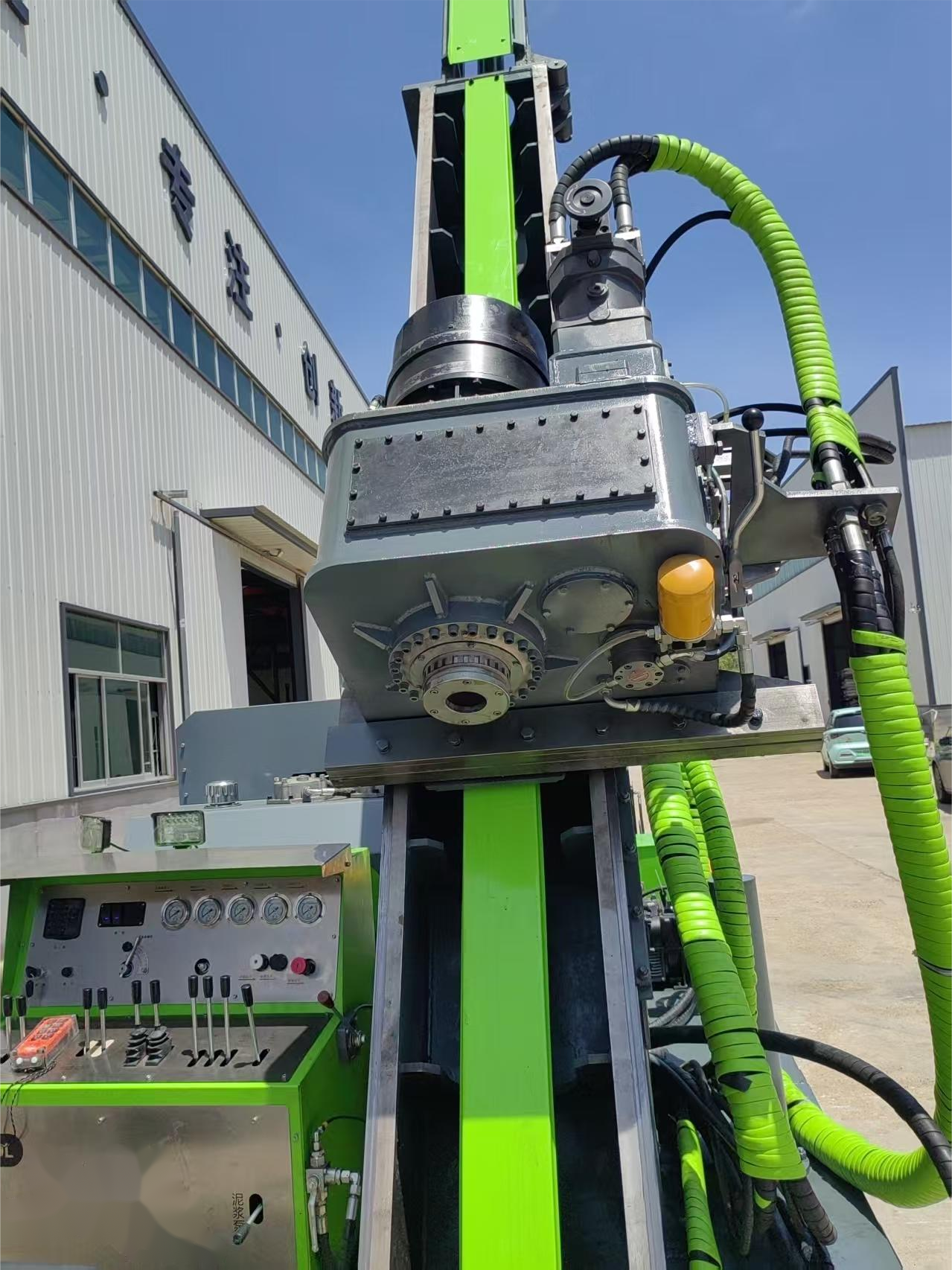

Rotational stability is provided by the three-speed gearbox and plunger motor. The 2500 N.m of torque is delivered with exceptional smoothness, free from the pulsations that can cause the bit to walk off course. The operator can select low gear for maximum torque at low RPM, which is ideal for starting holes and drilling through deviation-prone zones. The stepless speed control allows fine-tuning of rotation to match the formation, further reducing the lateral forces that can push the bit sideways. This precision is critical for deep holes where small errors at the collar become large errors at depth.

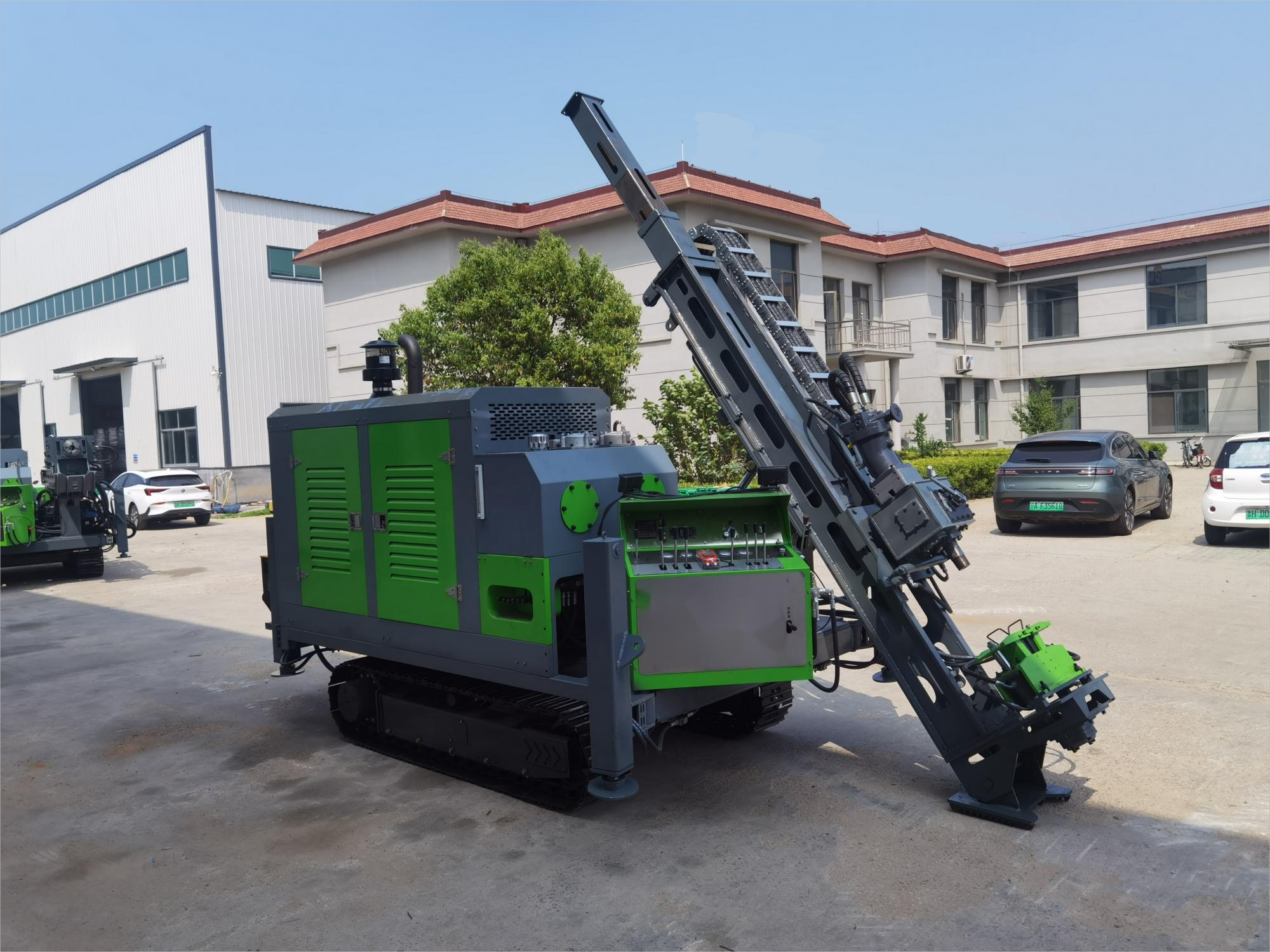

The steel track undercarriage contributes to stability by providing a wide, solid foundation. The 5800-kilogram weight is distributed across tracks that are widely spaced to resist rocking on uneven ground. The low center of gravity means the rig does not shift or settle during drilling. Once the GD-800L is leveled and set, it stays exactly where it is, providing a stable platform hour after hour. For multi-hole programs, the consistency of setup reduces hole-to-hole variability, improving the quality of the resource model.

Real-time monitoring helps the driller maintain straightness. The control panel includes precision pressure gauges that indicate feed force and torque, allowing the driller to detect anomalies that might signal deviation. The 10 KN booster circuit provides controlled breakout force, preventing the sudden shocks that can knock the bit off alignment. Experienced drillers appreciate the tactile feedback of the proportional controls, which allows them to feel the formation and adjust instantly. The GD-800L is a tool that rewards skill and precision.

For projects where borehole deviation is not an option—such as resource definition, directional core sampling, or geotechnical hole accuracy—the GD-800L is the precision deviation controller that delivers. It combines mass, rigidity, smooth power, and precise control to keep the hole straight and the data reliable. When your resource model depends on accurate trajectories, the GD-800L is the rig you trust.

GD-800L Precision Deviation Controller Specifications
