GDP-3D
GOLD
Product Description
GDP-3D: The Smart Choice for Effortless Borehole Navigation
Transform your drilling operations with the GDP-3D Wireless Digital Inclinometer—a compact, intuitive solution for precise downhole surveys. Combining cutting-edge sensor technology with Android-powered simplicity, this tool empowers engineers to achieve faster, smarter decisions in oil, gas, and mineral exploration.
Plug-and-Play Functionality
Automatic Bluetooth pairing eliminates complex setup.
Pre-loaded survey templates accelerate project initiation.
Robust Build for Field Demands
Waterproof controller survives rain, mud, and drops.
Lightweight probe (6kg) simplifies handling in remote locations.
Intelligent Data Handling
Multi-point storage allows unlimited survey comparisons.
One-click Excel exports streamline reporting workflows.
Safety & Compliance
Overvoltage protection safeguards against battery faults.
Annual recalibration ensures adherence to industry standards.
| Feature | Detail |
|---|---|
| Measurement Range | 0°–80° Inclination / 0°–360° Azimuth |
| Accuracy | ±0.1° (Inclination) / ±3° (Azimuth) |
| Durability | IP68 Controller / 20MPa Pressure Resistance |
| Battery Life | 20 Hours (Probe) / 2600mAh (Controller) |
| Depth Capacity | 2000m |
| Data Storage | 8GB Internal Memory |
Step 1: Setup in Minutes
Connect the probe and controller via intuitive Bluetooth pairing.
Customize survey parameters using the user-friendly app interface.
Step 2: Survey with Confidence
Lower the probe while receiving real-time depth and angle updates.
Correct errors instantly with the Undo function for flawless data.
Step 3: Analyze & Share

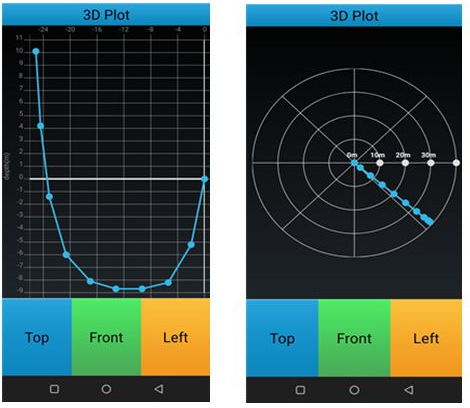

Visualize borehole paths with 3D trajectory graphs.
Export data to share with teams or regulatory bodies.
Time Savings: Reduce survey time by 40% with automated depth calculations.
Error Reduction: Pre-calibrated sensors minimize manual adjustments.
Versatility: Compatible with horizontal, vertical, and directional wells.
