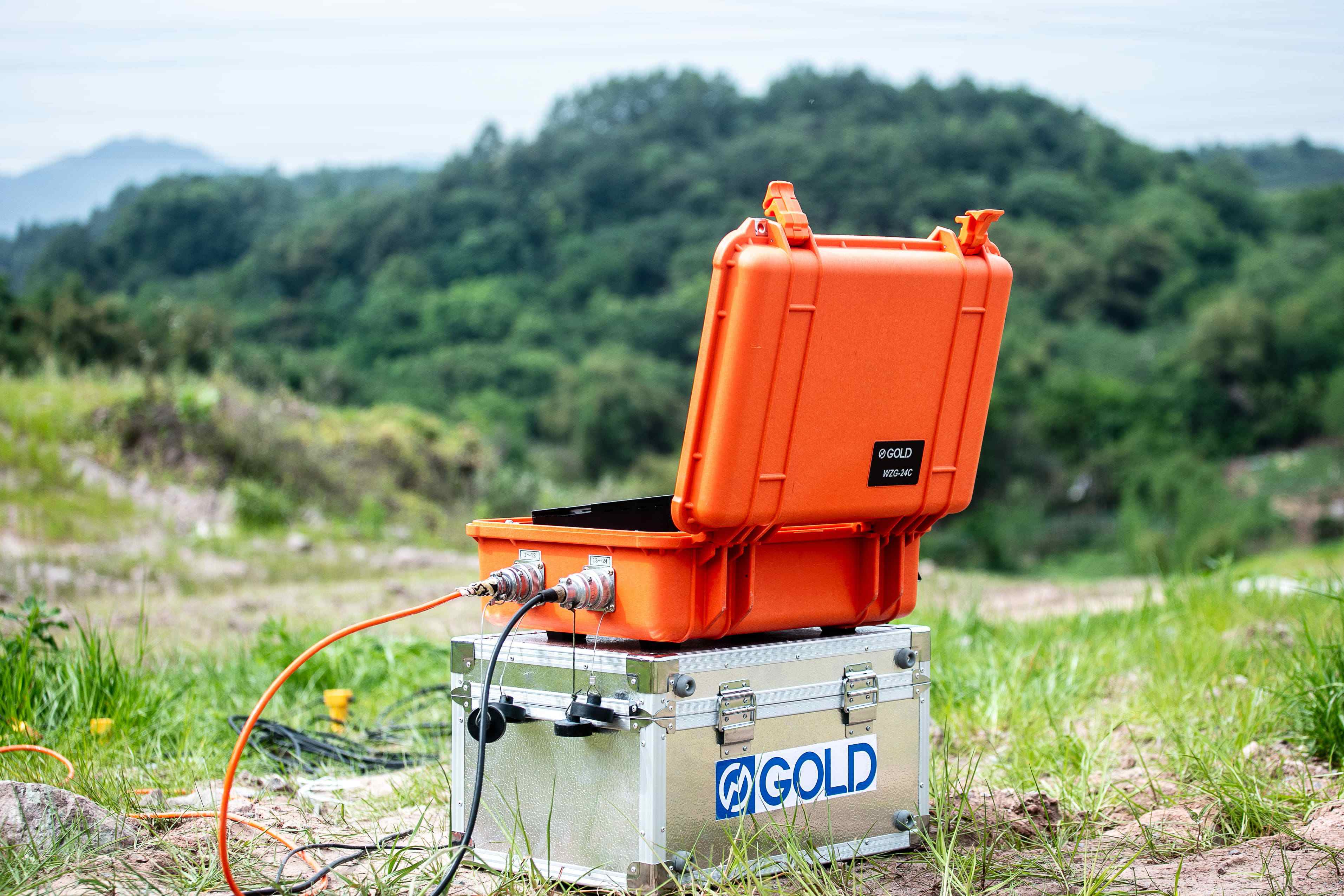

WZG-24/48C
GOLD
Product Description
WZG-24C/48C Seismograph: Optimizing Heat Mining Through Cross-Hole Tomography
Imaging the Hidden Pathways That Make or Break Geothermal Projects
Geothermal energy production relies on extracting hot fluid from permeable fracture networks deep in the subsurface. The most common failure mode of geothermal projects is poor hydraulic connectivity between injection and production wells—cold water returns to the surface prematurely or, worse, never establishes circulation. The WZG-24C/48C is configured as a cross-hole and well-to-well seismic tomography system, providing the only direct, high-resolution map of the inter-well permeability architecture. For geothermal developers, it transforms the reservoir from a black box of unknown flow paths into a quantifiable, engineerable volume, enabling precise well placement, stimulation targeting, and long-term plant optimization.
Cross-Hole Seismic Tomography for Fracture Mapping
Standard well logging only images the immediate borehole wall. The WZG-24C/48C deploys a downhole hydrophone or geophone string in one well while a seismic source is fired in another. By recording travel times and amplitudes of seismic waves passing through the rock volume between the wells, it constructs a 2D or 3D tomogram of the inter-well space. High-velocity zones indicate intact, unfractured rock; low-velocity zones correspond to fractured, fluid-saturated permeability. This direct image of fracture connectivity is then used to guide hydraulic stimulation: injecting high-pressure water into identified low-velocity corridors to enhance their transmissivity, while avoiding zones that would not contribute to flow.
Monitoring Stimulation Propagation and Fluid Flow Pathways
As stimulation proceeds, the WZG-24C/48C repeats the cross-hole survey in time-lapse mode, imaging the evolution of the stimulated volume. A growing region of lowered velocity indicates successful fracture opening and fluid injection. Conversely, zones that do not change signal ineffective stimulation. This real-time feedback allows engineers to adapt the stimulation strategy—changing injection rates, adding chemical tracers, or shifting to different well pairs—to achieve optimal connection. After stimulation, the system performs flow tomography by comparing baseline and post-stimulation images, quantifying the effective reservoir volume. This data is essential for predicting sustainable flow rates, reinjection temperature stability, and overall plant lifetime.
Technical Specifications for Geothermal Wellfield Optimization
| Geothermal Reservoir Feature | Energy Production and Cost Benefit |
|---|---|
| Cross-Hole Seismic Tomography (500m inter-well spacing) | Images fracture density and connectivity between well pairs with 5m spatial resolution. |
| Time-Lapse (4D) Stimulation Monitoring | Tracks the growth of the stimulated reservoir volume during hydraulic fracturing. |
| Vp/Vs Ratio for Fluid Saturation Identification | Distinguishes between fractures filled with water, steam, or gas for optimized phase extraction. |
| Passive Microseismic Monitoring During Production | Detects fracture reactivation or thermal contraction-induced microseismicity over the plant lifetime. |
| Integration with Tracer Test and Wellhead Data | Correlates seismic images with chemical tracer breakthrough curves and temperature/pressure logs. |
| Automated Well Model Update and Reserve Estimation | Feeds tomographic results into reservoir simulators for improved resource assessment. |
| Mobile, Containerized Field Processing Unit | Enables rapid on-site processing and interpretation without need for uplink to central servers. |
De-Risking Enhanced Geothermal System (EGS) Projects
For engineered geothermal systems (EGS) in hot dry rock, where initial permeability is near-zero, cross-hole tomography is not optional—it is mandatory. Without it, stimulation is blind. The WZG-24C/48C provides the eyes for the operation, allowing engineers to confirm that created fracture networks connect the targeted well pair. A successful EGS project verified by this technology can deliver decades of carbon-free baseload power. Conversely, a project that fails due to unknown geology may never recover its capital investment. The system effectively de-risks the multimillion-dollar stimulation decisions that are central to EGS economics.
Supporting Reservoir Management and Life Extension
In mature geothermal fields, the WZG-24C/48C is used periodically to re-evaluate reservoir connectivity as temperatures decline and pressures change. It can identify preferential flow paths that have short-circuited and need blocking, or new zones of thermal resource that have not yet been tapped. By providing a quantitative basis for infill drilling and well workovers, it extends the productive life of the field, squeezing additional MWh from an existing investment. In an industry where the marginal cost of additional energy is very low, this life-extension capability translates directly to higher profitability and lower levelized cost of energy.
