WDJD-4A
GOLD
Product Description
WDJD-4A: Comprehensive Support for Your Entire Project Lifecycle

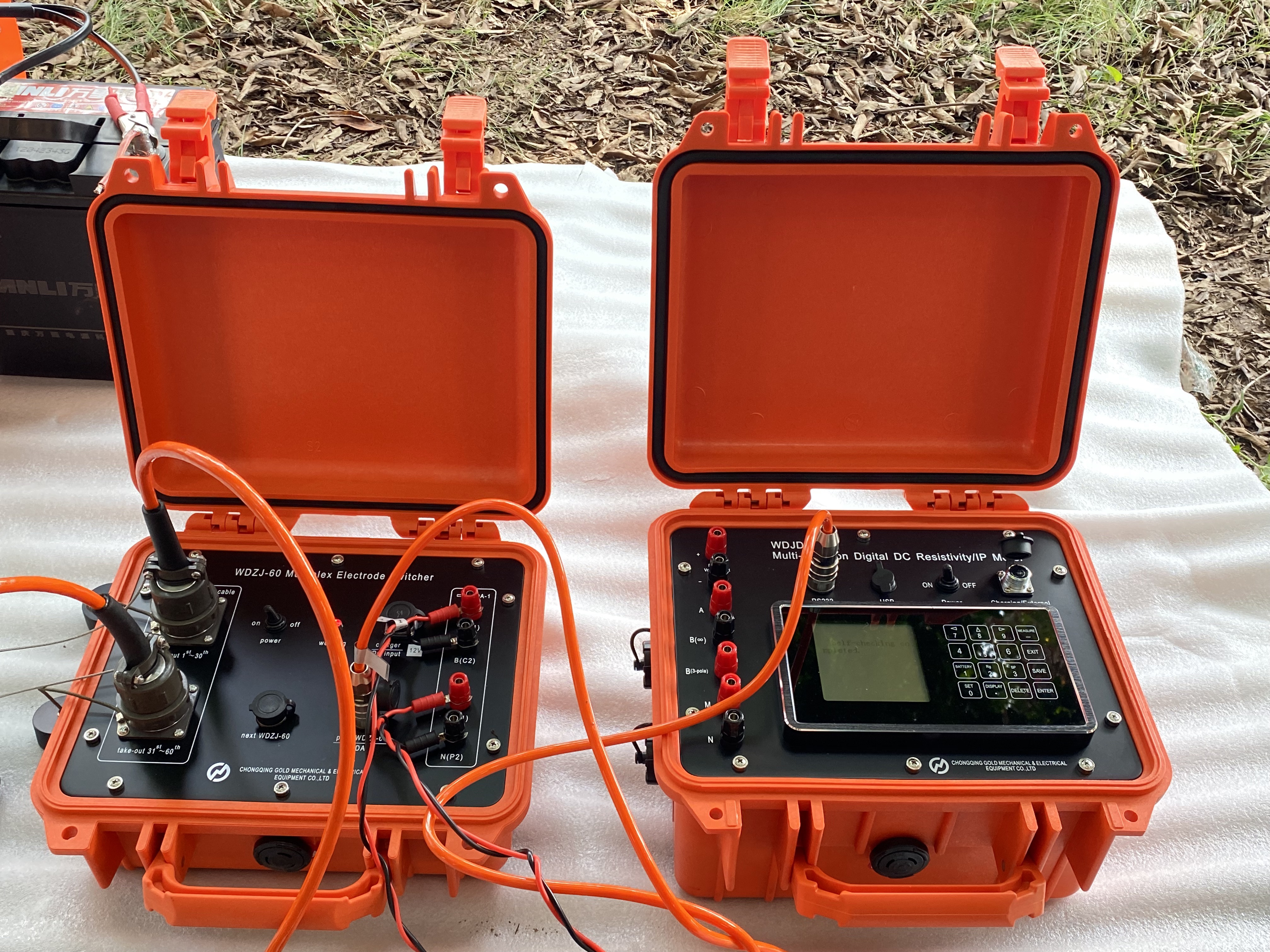

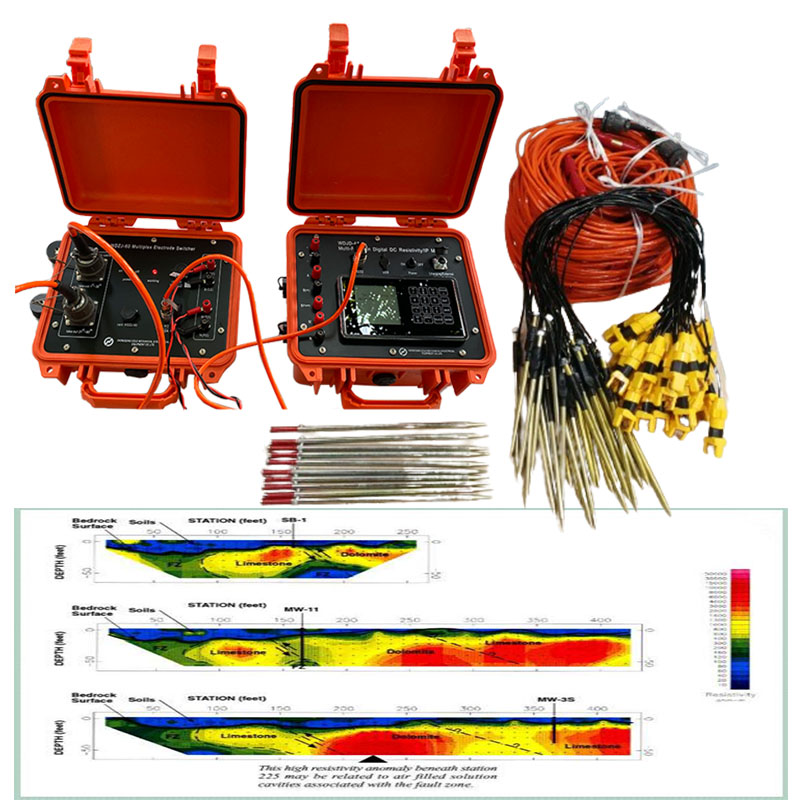

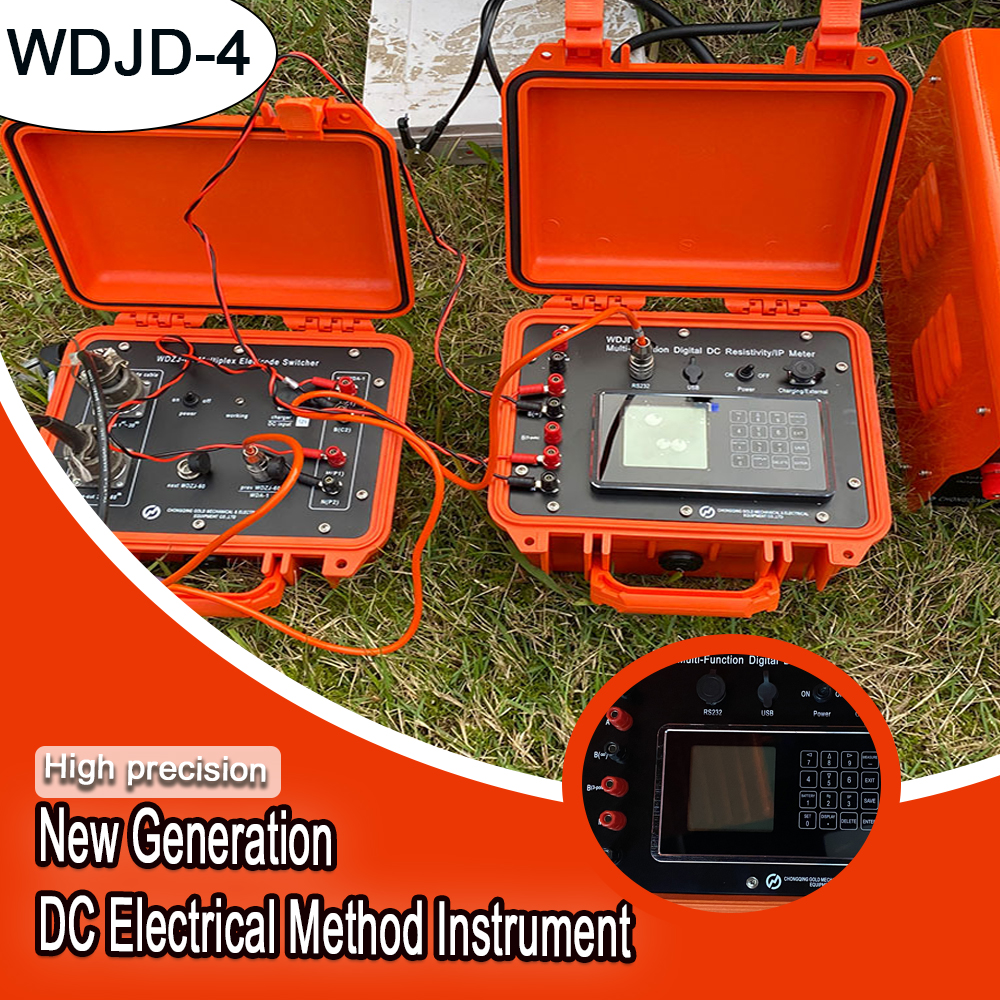

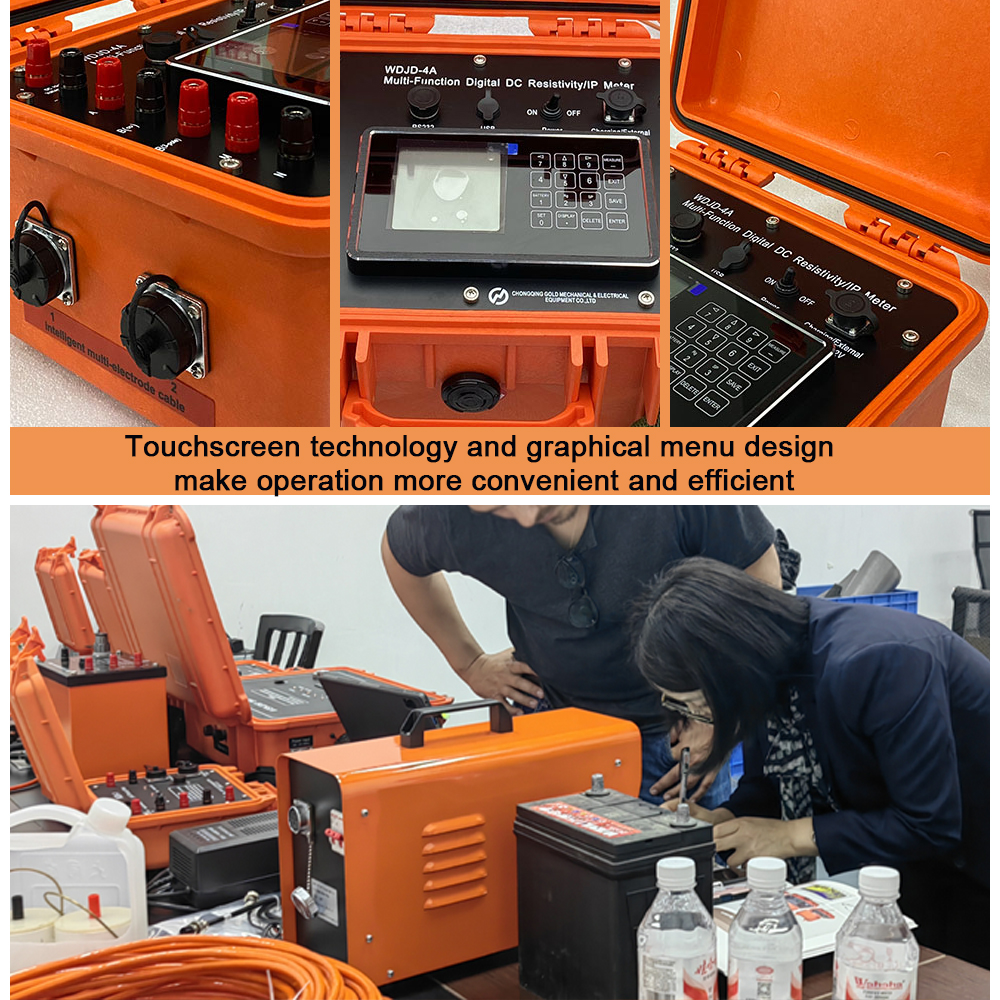

WDJD-4A Multi-Function Digital DC Resistivity/IP Meter , based on WDJD-3A, meets user’s most and latest needs. It features multiple functions, high accuracy, fast speed, high reliability and excellent expandability. Measured data of WDJD-4A can be processed by other multi-electrode resistivity software, which makes the interpretation more convenient. The single WDJD-4A can conduct general electrical resistivity/IP survey. If WDJD-4A is used together with WDZJ-4 multiplex electrode switcher (hereafter also referred to as WDZJ or WDZJ-4 switcher), it can conduct multi-electrode 2D Resistivity imaging.
Total Value Advantages
Expert Training: Comprehensive instruction for rapid skill development and best practices
Technical Support: Responsive assistance from application specialists with field experience
Software Ecosystem: Complete toolset for data processing, advanced modeling, and professional reporting
Preventive Maintenance: Proactive service planning prevents downtime and ensures reliability
Community Access: User network for knowledge sharing and methodology development
Industry-Proven Features
Geotechnical Precision: High-resolution mapping for engineering projects and construction sites
Mineral Targeting: Advanced IP capabilities for exploration geology and resource definition
Environmental Monitoring: Sensitive detection of contaminant plumes and groundwater quality
Infrastructure Assessment: Non-destructive testing for bridge foundations and dam safety
Academic Research: Publication-quality data for scientific studies and university programs
Support Specifications
| Value Component | Service Standard |
|---|---|
| Training Program | 5-day certification course |
| Support Response | 2-hour emergency response |
| Software Suite | 8 integrated applications |
| Maintenance Schedule | Bi-annual preventive service |
| User Community | 500+ member network |
What's can WDJD-4A measure?
(1)If you conduct general (1D) electrical resistivity survey, system configuration and layout is as shown in Fig.2-1. The system consists of one WDJD-4A mainframe, electrodes, transmitting power source.

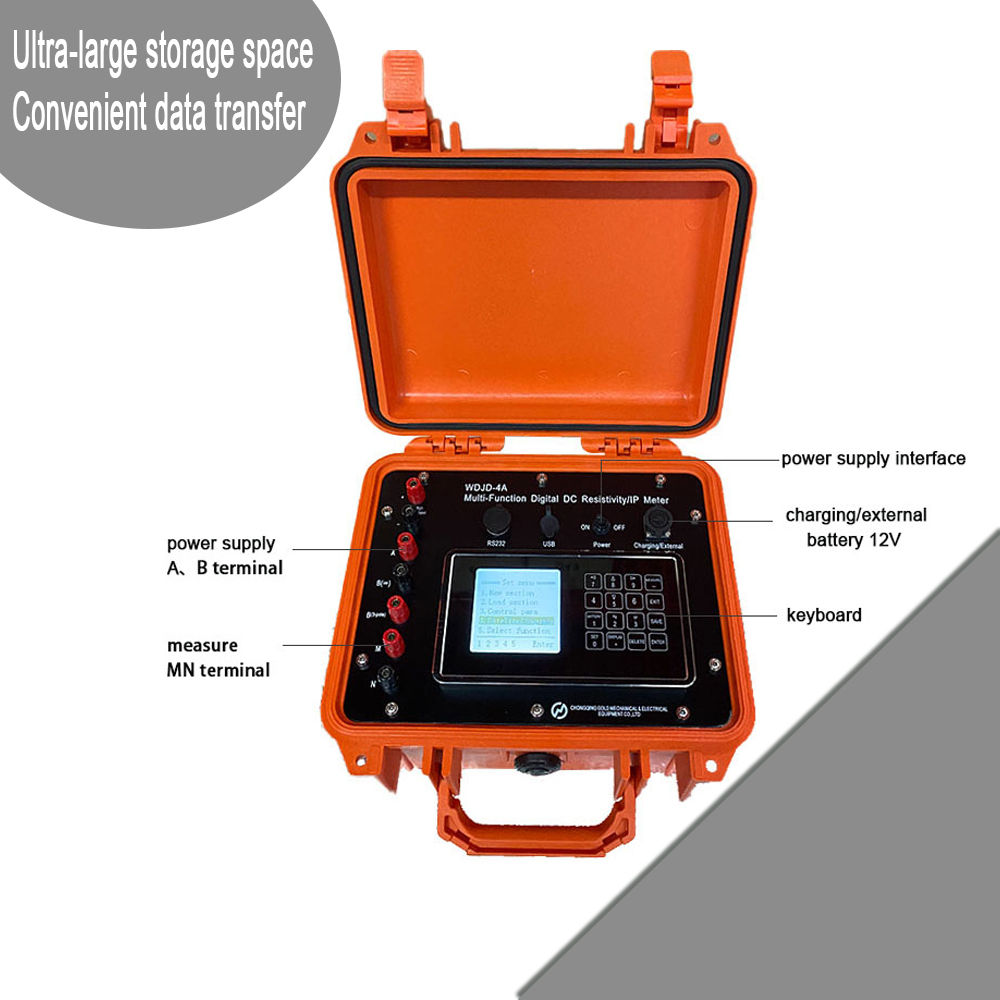

Positive pole (red) of the transmitting power source connects to the “DC HV +” terminal (red, positive terminal) of WDJD-4A.
Negative pole (black) of the transmitting power source connects to the “DC HV –” (black, negative terminal) of WDJD-4A.
Electrode A and B connect respectively to A, B terminals, and potential electrodes M and N respectively to M, N connecting terminal
(2)If you conduct general (1D) induced polarization (IP) survey, system configuration and layout is as shown in Fig. 2-2. The system consists of one WDJD-4A mainframe, electrodes, solid non-polarized electrodes, transmitting power source
Positive pole (red) of the transmitting power source connects to the “DC HV +” terminal (red, positive terminal) of WDJD-4A.
Negative pole (voltage, in black) of the transmitting power source connects to the “DC HV –” (black, negative terminal) of WDJD-4A.
Electrode A and B connect respectively to A, B connecting terminals
Solid non-polarized electrode M and N connect respectively to M, N connecting terminal. For use and maintaining of solid non-polarized electrode, please refer to Appendix
