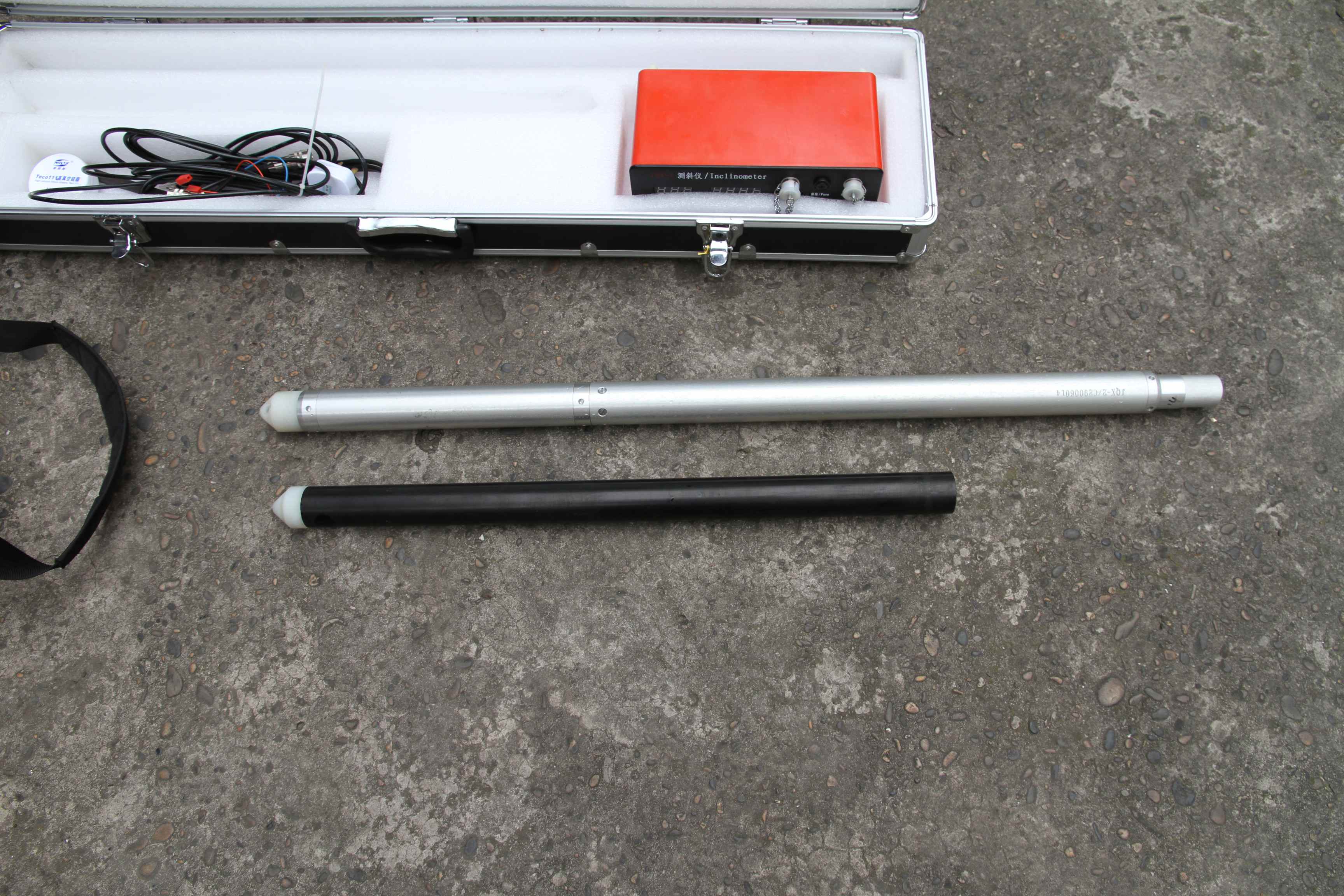

Soil Nailing Inclinometer Geotechnical Instrumentation Excavation Monitoring System

The Strategic Enabler for Subsurface Mastery

In the high-stakes domains of geotechnical engineering, resource extraction, and critical infrastructure development, the quality of foundational data dictates the margin between success and costly failure. The JQX-2 Portable Digital Inclinometer System transcends conventional instrumentation to become a strategic enabler for subsurface mastery, providing the definitive data clarity required to navigate uncertainty, optimize operations, and secure project outcomes. This system is engineered for organizations that view precise geospatial intelligence not as a mere operational input, but as a core strategic asset for competitive advantage and risk mitigation. Its integration into a project workflow represents a commitment to evidence-based decision-making,

replacing ambiguity with quantifiable certainty and transforming the borehole from a point of potential vulnerability into a source of robust, actionable intelligence.

The strategic power of the JQX-2 originates from its fusion of discriminative measurement capability with operational perseverance. The system delivers decision-grade precision through its advanced sensor suite, achieving a vertex angle resolution of 0.1°. This degree of sensitivity is not merely a technical statistic; it is the critical threshold for the early detection of anomalous trends, enabling proactive intervention in scenarios ranging from wellbore stability management to pre-collapse slope monitoring. This foresight directly safeguards capital and timelines. Complementing this is an azimuth determination system engineered for integrity in complex magnetic environments. Utilizing a triaxial magnetometer array with adaptive environmental filtering, it achieves a directional accuracy of ±4 minutes of arc. This reliability ensures that subsurface navigation and structural mapping are based on truth, not estimation, providing the confidence needed to steer expensive drill strings toward precise targets and to accurately model geological formations.

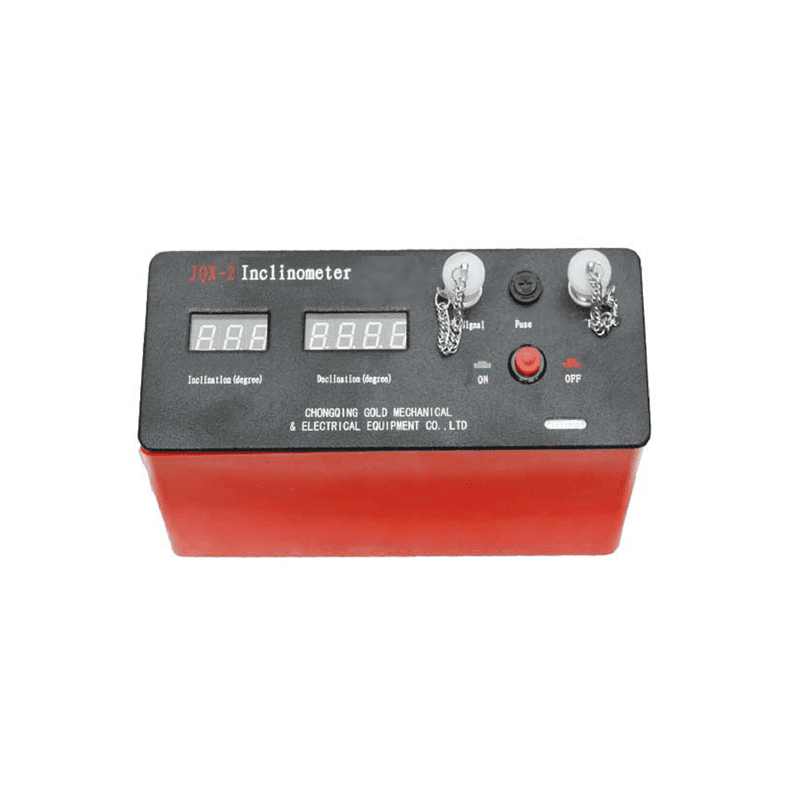

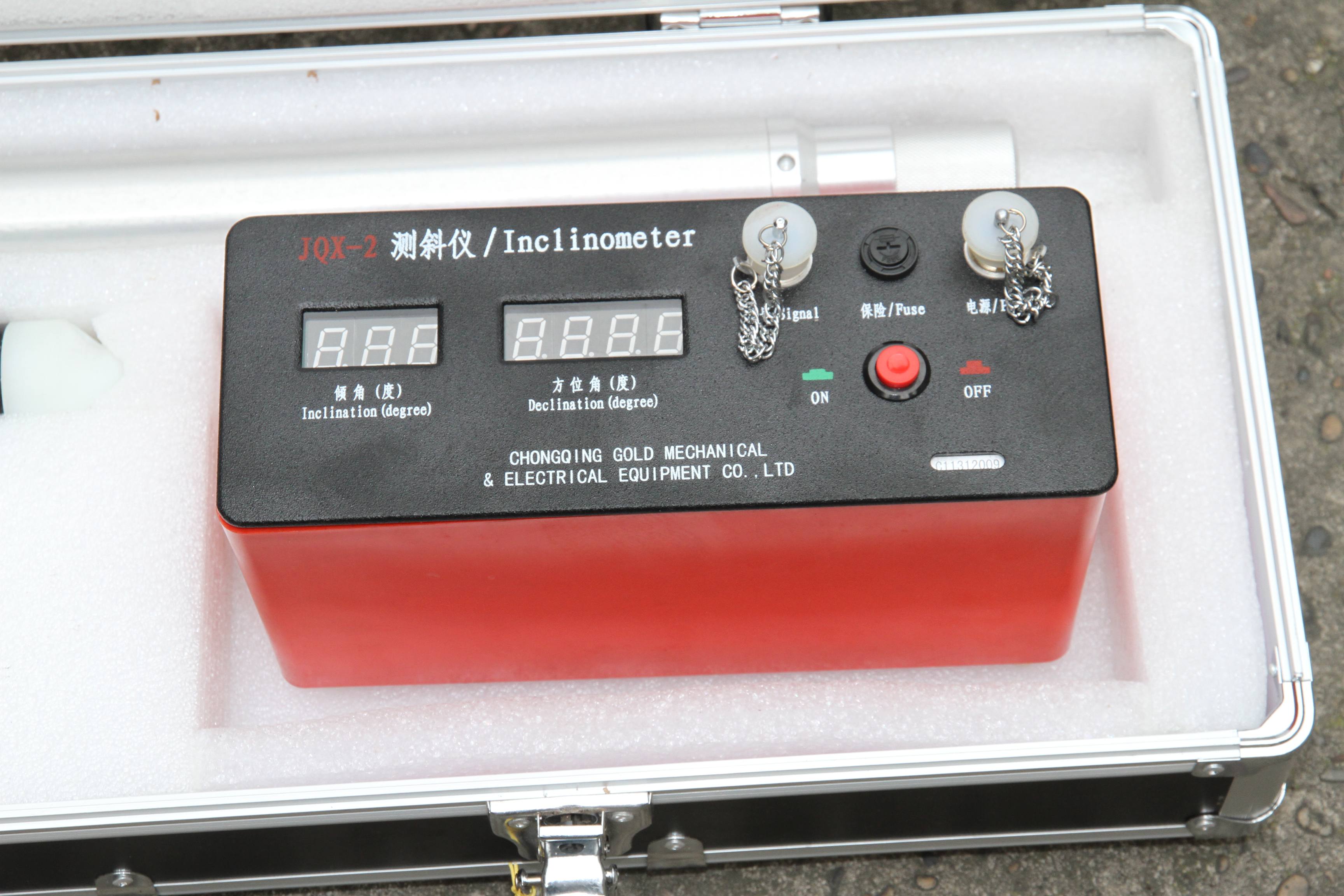

This intelligence is delivered with uninterrupted field performance, a non-negotiable requirement for maintaining project momentum. The probe is a hermetically sealed vessel of high-grade, non-magnetic stainless steel, its construction validated to withstand hydrostatic pressures up to 5 MPa and the chemically aggressive conditions found in many subsurface environments. Its operational conscience is defined by an extended environmental tolerance from 0°C to 85°C, guaranteeing functional integrity across the planet’s most extreme thermal gradients. Crucially, the system’s design acknowledges the reality of field power constraints, featuring agnostic power compatibility with both AC 220V and DC 12V sources. This ensures continuous operation irrespective of grid accessibility, eliminating a common source of survey delay. The surface unit consolidates this capability into a ruggedized, intuitively operated command center, featuring a sunlight-legible display for instant data verification and robust connectivity for seamless data transfer, ensuring intelligence flows from the subsurface to the decision-maker without compromise.

JQX-2 Strategic Performance Specifications

Delivering Unassailable Data Integrity and Operational Agility

The true measure of a strategic tool lies in its tangible contribution to project velocity, cost control, and risk reduction. The JQX-2 is architected to deliver precisely this, functioning as a force multiplier for field teams. Its design philosophy eradicates traditional bottlenecks: the system enables rapid setup and deployment, turning what was historically a hours-long procedural task into a matter of minutes. This efficiency gain translates directly into the ability to conduct more surveys per day, accelerating site investigation phases and compressing project timelines. Furthermore, its intuitive user interface and automated data logging drastically reduce the potential for human error in both data collection and transcription, ensuring that the intelligence reaching analysts is pristine and reliable. This operational agility ensures that projects advance on a foundation of speed and accuracy, not one at the expense of the other.

Beyond daily efficiency, the JQX-2 is an investment in long-term value and forensic-grade data accountability. The system generates a secure, time-stamped, and depth-correlated digital record of every measurement. This creates an immutable audit trail that is invaluable for compliance reporting, contractual verification, and forensic analysis in the event of a dispute or failure investigation. The instrument’s renowned long-term calibration stability, achieved through premium components and sophisticated thermal compensation, means data remains consistent over months and years. This is critical for long-term monitoring projects, such as dam safety or landslide assessment, where discerning subtle, slow-moving trends over time is the primary objective. The integrity of this historical dataset protects organizational interests and provides unparalleled insight into subsurface behavior.

Ultimately, the JQX-2 catalyzes a profound return on investment that is realized across multiple dimensions. The most direct is the prevention of catastrophic cost—by identifying a minor wellbore deviation early, it prevents a major sidetrack or stuck pipe incident; by detecting initial slope movement, it enables mitigation before a collapse. Its durability and reliability minimize lifecycle costs through reduced downtime, fewer repairs, and lower maintenance demands compared to less robust equipment. Finally, the strategic confidence it provides—the knowledge that decisions are based on the best available data—empowers organizations to execute complex projects more boldly and efficiently. In this capacity, the JQX-2 ceases to be a simple tool and becomes a fundamental pillar of modern, responsible, and competitive subsurface development.

JQX-2 Strategic Differentiation Matrix
