Product Description
300°C Rated Detection Cable delivers uninterrupted data in geothermal wells. Optimized copper conductors reduce resistance up to 9.2 Ω/km while 220 pF/m low capacitance ensures measurement accuracy. Mandatory tension protocols (80/120 rule) enhance deployment safety.
Performance Highlights:
Breakthrough heat dissipation
15000 MΩ·km insulation reliability
55kN+ load capacity

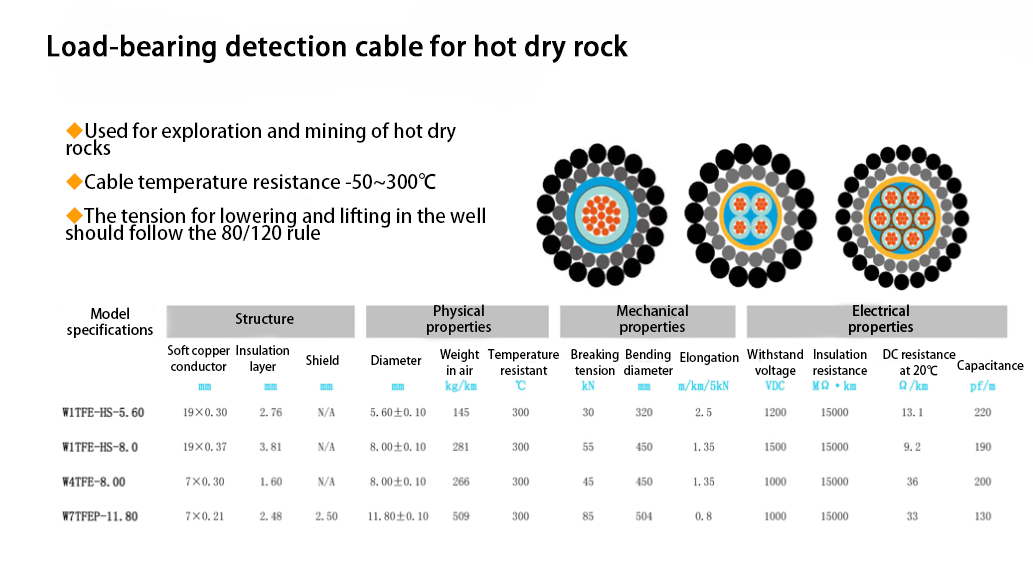

| Model WTFEP-1S-8.0 | Key Metrics |
|---|---|
| Breaking Tension | 55 kN |
| DC Resistance | 9.2 Ω/km |
| Capacitance | 190 pF/m |
| Voltage Endurance | 1500 VDC |
| Bend Flexibility | 450 mm diameter |
