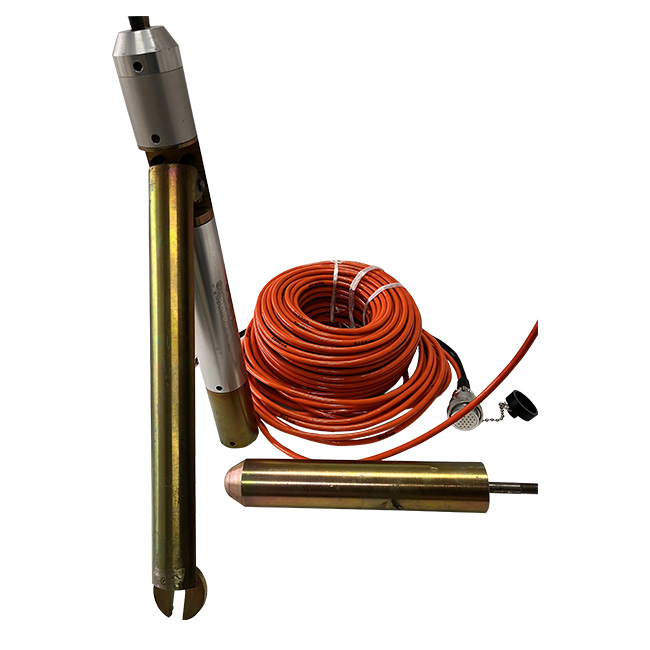

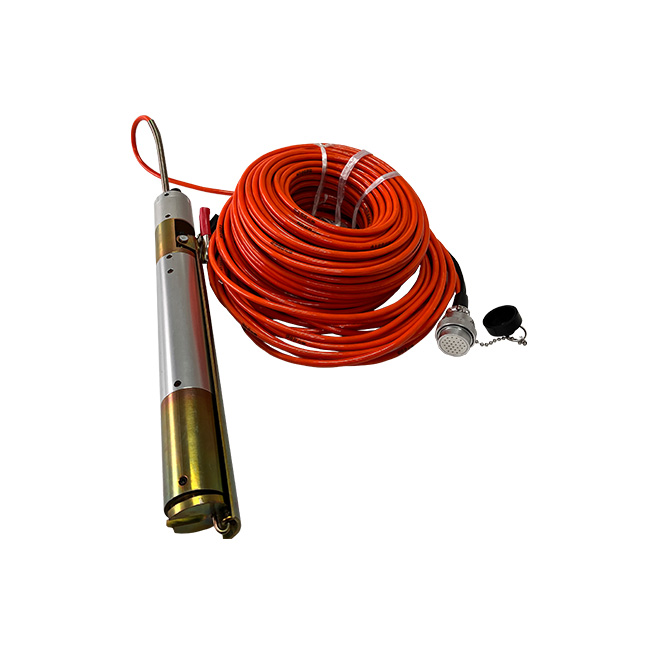

Vertical Seismic Profiling Geophone Crosswell Seismic Sensor

Next Generation Downhole Seismic: Why the Borehole 3C Geophone Leads the Market

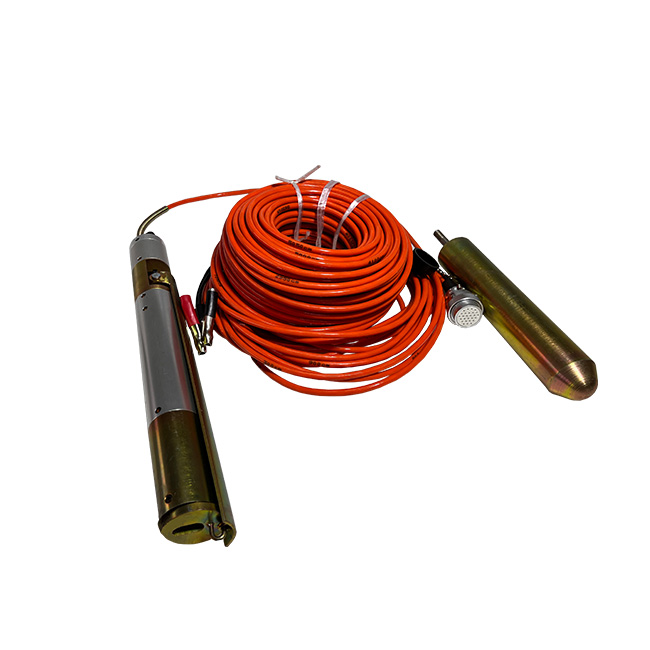

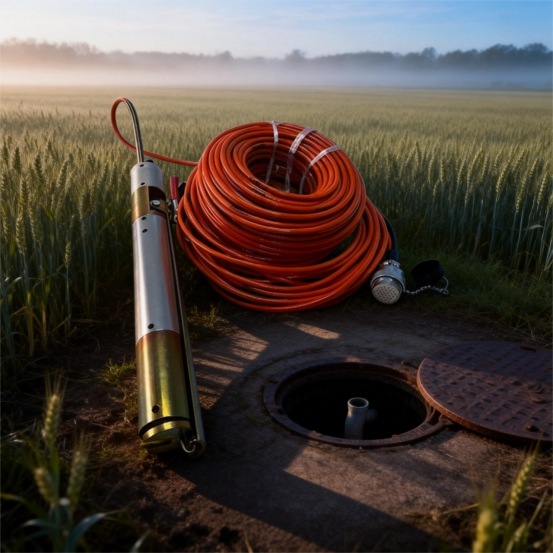

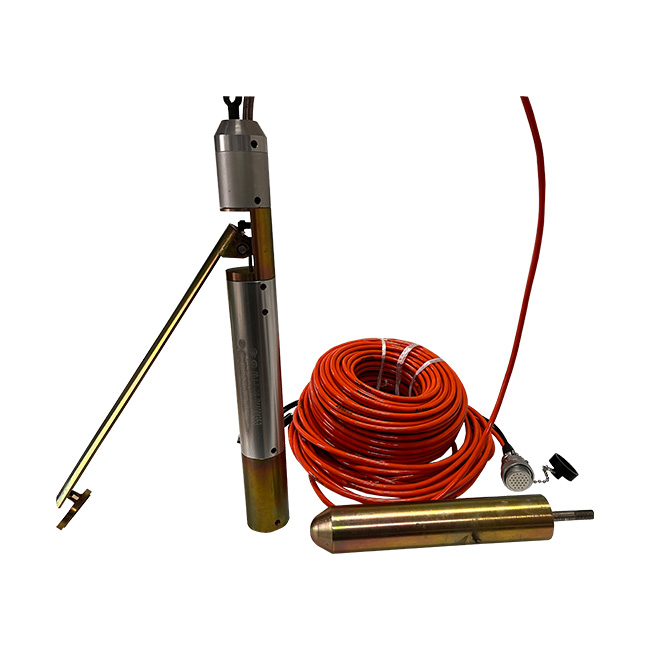

The global demand for high resolution subsurface imaging is growing faster than ever. Carbon capture projects require decades of monitoring. Geothermal energy expansion needs precise fracture mapping. Critical mineral exploration demands discovery at greater depths. At the center of these trends stands a proven tool: the Borehole 3C Geophone. This instrument, available in electromagnetic (GDJ DJ), piston type (GDJ JG), and non adjacent (GDJ JF) series, represents the current state of the art in downhole seismic sensing. Let us explore why it dominates and how it will evolve.

Trend One: Smaller Diameter for Deeper and Tighter Holes

Exploration drill holes are getting narrower to reduce drilling costs. The industry standard has moved from HQ to NQ and even BQ sizes. Our GDJ JF non adjacent borehole geophone has an outer diameter of only 45 millimeters. This fits through NQ rods (approximately 60 mm inner diameter) and even some BQ sizes. The electromagnetic and piston models at 55 and 50 millimeters also remain competitive. Future versions may shrink further, but today this is the smallest practical three component borehole geophone on the market.

Trend Two: Lighter Equipment for Remote Operations

Field crews in jungles, deserts, and arctic regions cannot carry heavy tools. Weight reduction is a major innovation driver. The GDJ JF non adjacent model with 60 meter cable weighs only 6 kilograms. That is lighter than a typical suitcase. The GDJ DJ at 10 kilograms and GDJ JG at 12 kilograms are still significantly lighter than older generation tools that often exceeded 25 kilograms. Lower weight means lower shipping costs, safer handling, and faster mobilization.

Trend Three: High Temperature Tolerance for Geothermal and Deep Wells

As wells go deeper, temperatures rise. Many conventional geophones fail above 40 degrees Celsius. Our Borehole 3C Geophone operates up to 55 degrees Celsius. This covers most sedimentary basins and geothermal fields. For higher temperatures, future designs may push to 70 or 80 degrees Celsius. But for current projects, 55C is sufficient for the majority of borehole seismic surveys.

Trend Four: Flexible Frequency for Multi Scale Imaging

The ability to select any frequency from 4Hz to 100Hz allows one tool to serve both deep regional studies and shallow high resolution profiles. A mining company exploring for a deep ore body can order the geophone with a 4Hz sensor. The same company can later use a 100Hz sensor for detailed near borehole imaging. This flexibility reduces equipment inventory. Future trends may push frequencies lower than 4Hz or higher than 100Hz, but the current range already covers 95 percent of applications.

Trend Five: Multiple Coupling Mechanisms for Any Borehole Condition

No single coupling method works everywhere. That is why we offer three distinct series. Electromagnetic coupling (GDJ DJ) works in steel cased holes and provides repeatable clamping. Piston coupling (GDJ JG) works in open hard rock holes and gives strong wall contact. Non adjacent coupling (GDJ JF) works in soft formations, PVC casing, and deviated wells. This tri design approach matches the diversity of real world boreholes. Future tools may add active clamping or robotic centering, but the current three way split already solves most problems.

Repeating the Core Technical Selling Points for Future Buyers

Engineers planning next year‘s surveys need to remember these specifications: three component (full vector wavefield), 4 to 100Hz frequency (adjustable to target depth), 45 to 55 mm diameter (fits narrow holes), 300 to 500 mm height (short enough for deviated wells), 6 to 17 kg weight (light enough for manual handling), 55 degree Celsius maximum (adequate for most deep boreholes), and three coupling choices (one for every borehole type).

Parameter Table as a Reference for Technology Planners

What the Next Five Years Will Bring

We anticipate three improvements. First, even smaller diameters approaching 38 millimeters. Second, higher temperature versions rated to 70 degrees Celsius. Third, wireless telemetry for real time data transmission. But until those arrive, the current Borehole 3C Geophone series remains the best choice for cost effective, reliable downhole seismic acquisition. Its specifications meet or exceed current industry requirements.

Final Future Focused Recommendation

Invest now in the Borehole 3C Geophone that matches your typical borehole conditions. If you work mainly in cased wells, buy the GDJ DJ electromagnetic series. If you work in open hard rock holes, buy the GDJ JG piston type. If you work in variable or difficult conditions, buy the GDJ JF non adjacent series. All three will serve you well into the next decade.
