Advanced Water Level Monitoring Solutions

Introduction to Precision Water Level Measurement
Accurate water level monitoring is critical for industries, agriculture, and environmental studies. The Steel Ruler Water Level Meter stands out as a high-precision instrument designed for measuring water levels in wells, boreholes, and standpipes up to 900 meters deep. Its robust construction and advanced features make it a top choice for professionals seeking reliability and efficiency.

Key Components of the Water Level Meter

1. Sonde (Detect Head)

• Crafted from stainless steel for durability.

• Equipped with a water resistance contact point that activates the system upon water contact.

• Automatically shuts off when removed from water, conserving battery life.

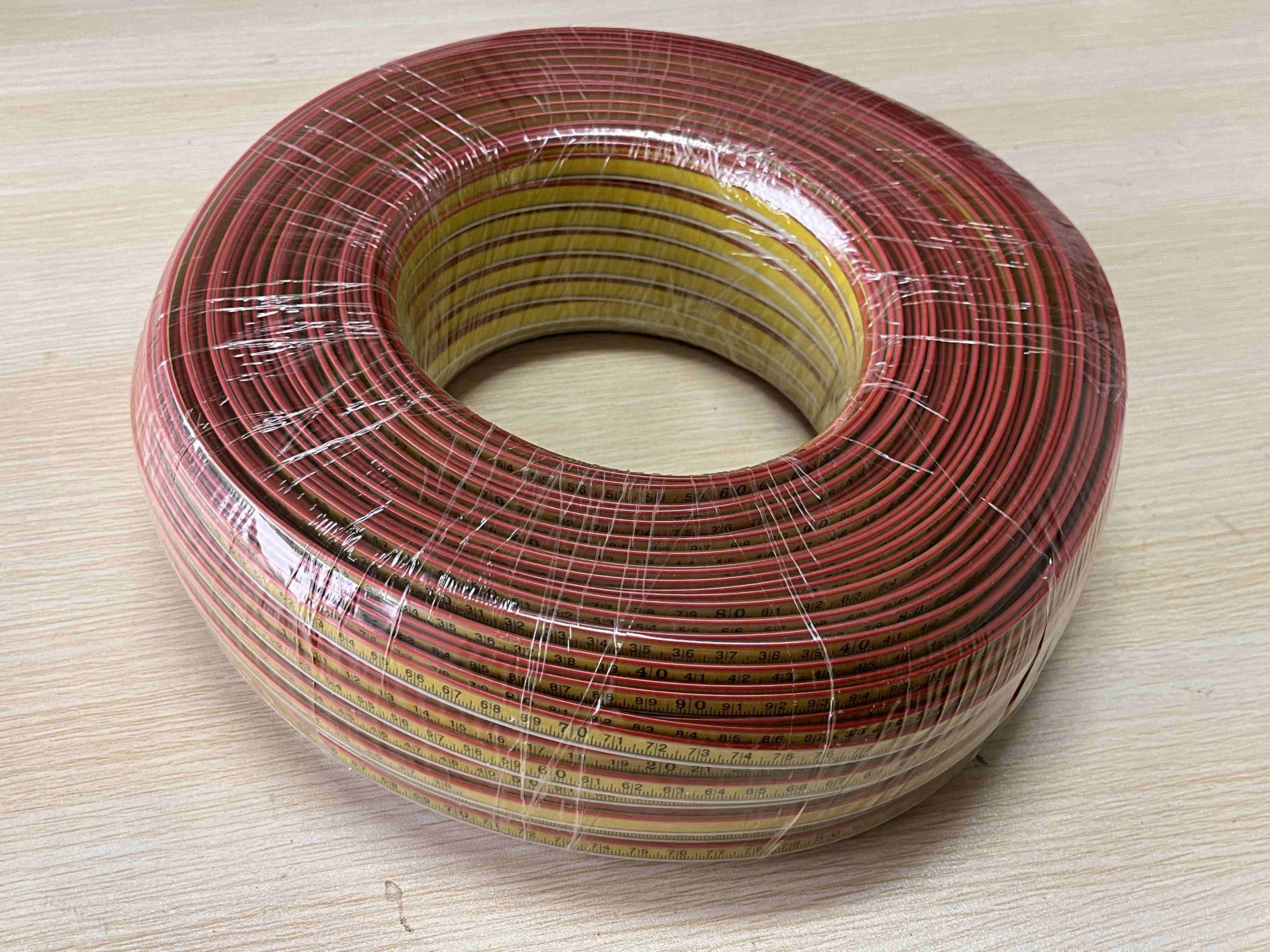

2. Ruler Cable

• Combines a ruler and cable for easy depth measurement.

• Corrosion-resistant, oil-proof, and microbial-resistant coating ensures longevity.

• Simplifies operation with clear, visible markings for precise readings.

3. Receiving System

• Features an audible buzzer and LED indicator for instant alerts.

• Powered by a 9V battery, it completes an electrical circuit upon water contact.

• Peak indication technology ensures accurate water level detection.

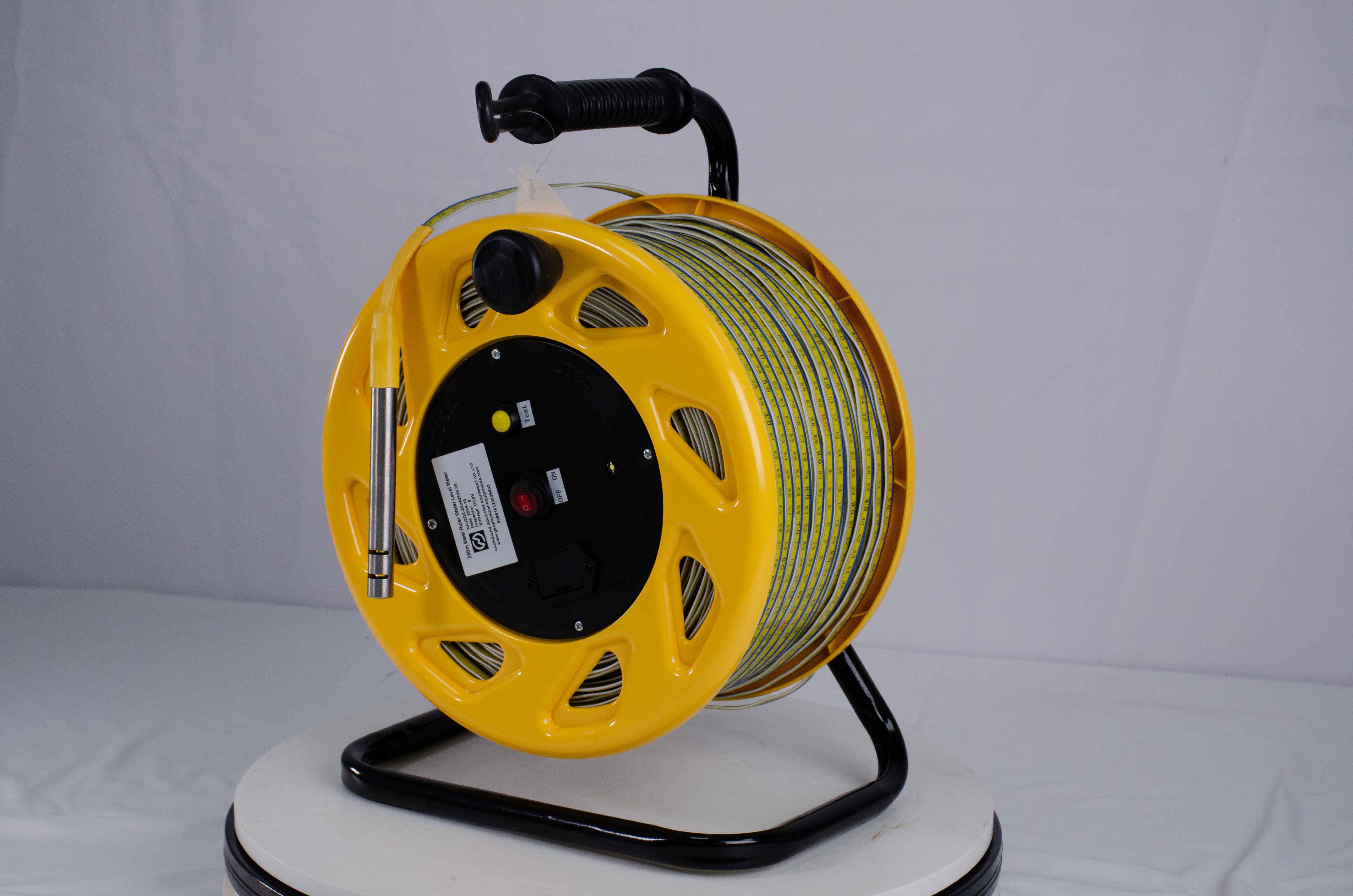

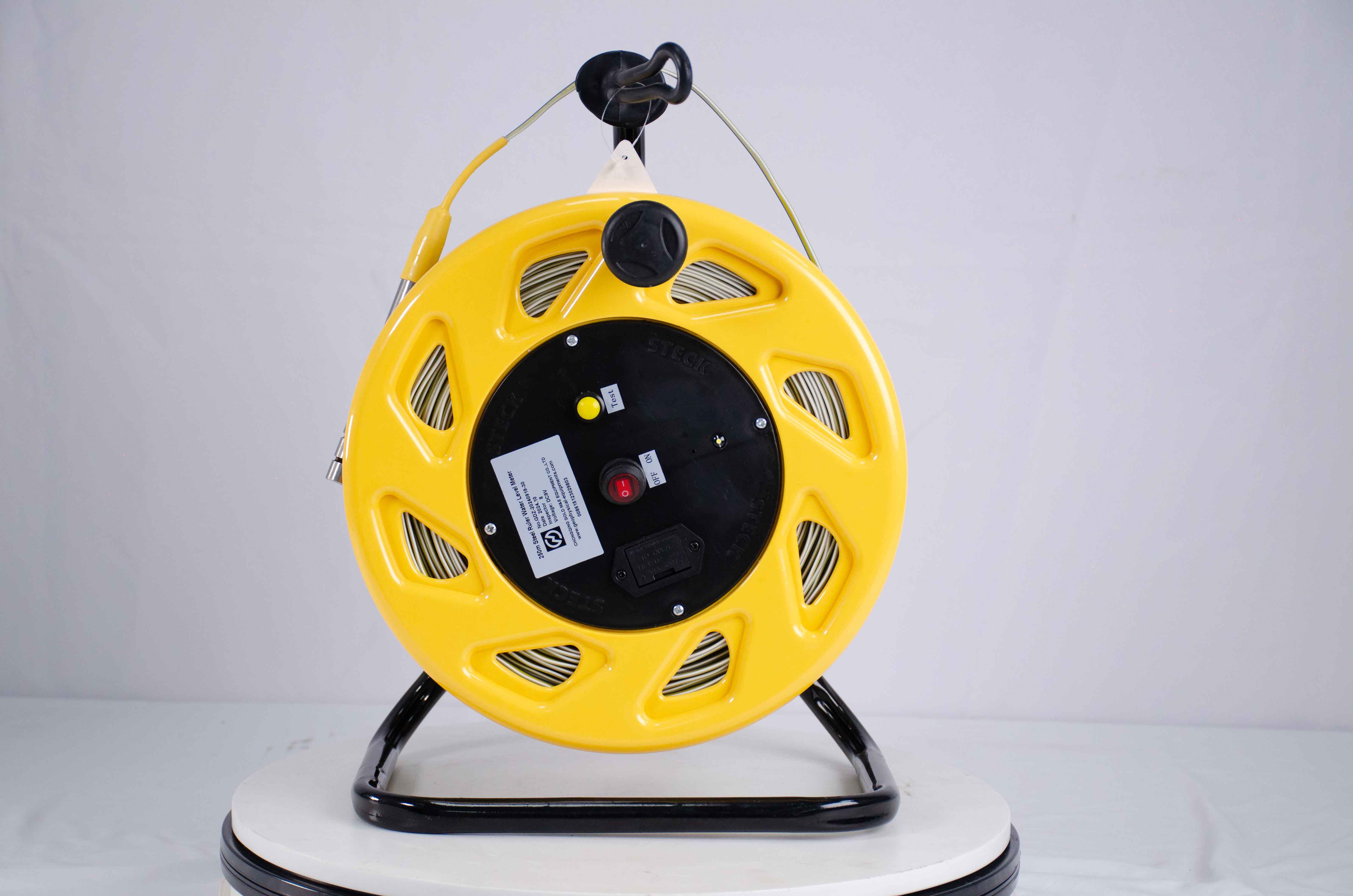

4. Reel Assembly

• Houses the receiving system and battery for portability and protection.

• Designed for smooth cable deployment and retrieval.

Technical Specifications

• Depth Range: 0–300m (customizable up to 900m).

• Resolution: 1.0mm.

• Error Margin: ±2.0mm.

• Weight: 3.5–20kg (varies by model).

• Power Supply: 9V battery (included).

How It Works
The meter operates by lowering the stainless steel sonde into the water source. Upon contact:

• The circuit activates, triggering the buzzer and light.

• The depth is read directly from the marked cable at the surface.

• No complex calibration needed—ideal for field use.

Applications

• Groundwater monitoring for environmental studies.

• Industrial tank level checks.

• Agricultural irrigation management.

Maintenance Tips

• Power off after use to extend battery life.

• Clean the sonde and cable post-measurement.

• Store in a dry, temperature-controlled environment (-10°C to +40°C).

Why Choose This Water Level Meter?

• Unmatched accuracy with ±2mm error margin.

• Durable materials resist harsh conditions.

• User-friendly design for quick measurements.
