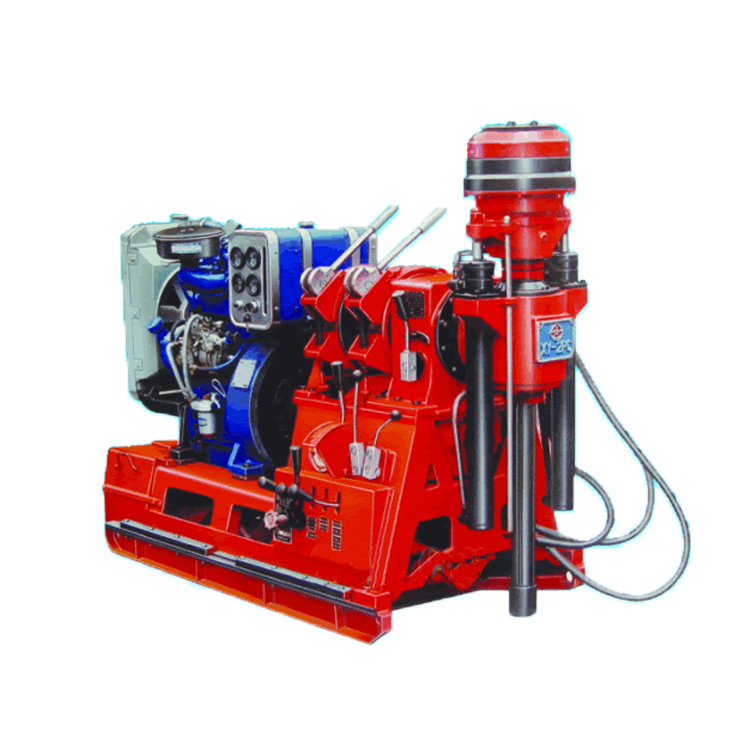

XY-2PC borehole drilling rig

Quantity:
  • Gold
  • XY-2PC

Product Description



Product Description

    The drillrig is used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway, roadway and harbor and drilling pile grouting hole.

Features

     The drill has such features as small body, light weight; especially available for construction of hydroelectric power-station. It can get two series of speeds by means of substitution of one pair of helical gears for other one.

Specifaction
Drill Capacity(m) Φ50 drill rod 150
Φ43 Wire line drillrod 300
spindle speed (r/min) Forward 81;164;298;334;587;1190
reverse 98;199
Max torque(Nm)  1110
angle range  0-90°
Max spindle pull force (KN)  45
spindle stroke  500
hoist max lift capacity (singlerope) (KN)  20
oil pump  CB32
Power unit diesel engine 295D 13.2KW
electric motor YD180L-4/8 17/11KW
drill body weight(excluding power)(Kg) 650
overal dimensions(L×W×H)(mm) 1720×800×1300
