GYGD-IIS 360 degree rotary Borehole Camera Water Well Inspection Camera 8 inch screen

It’s HD borehole inspection camera with waterproof and high pressure 360 degree rotary camera. Easy operation, real-time clear image, collection and recording video by DVR, automatic focusing near and far image. Widely used in water well, hydraulic, engineering site and ect.
Availability:
Quantity:
  • GYGD-IIS rotary borehole inspection cameras
  • GOLD

Product Description

GYGD-IIS 360 degree rotary Borehole Inspection Camera Water Well Inspection Camera 8 inch screen

borehole camera overview

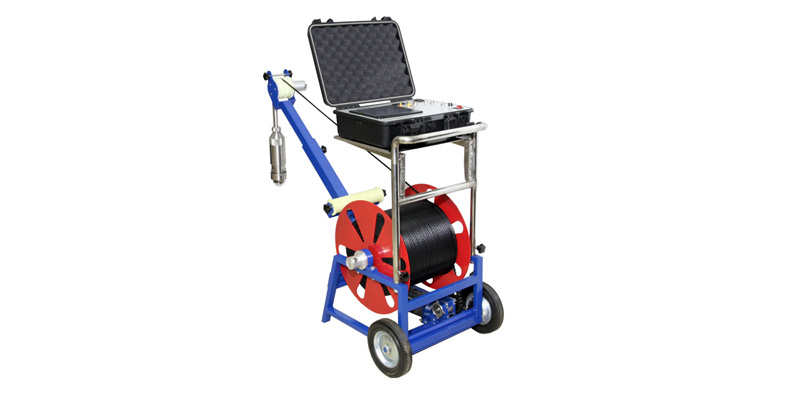

borehole inspection camera 800


It can be used in Hydraulic borehole and water well, Engineering drilling borehole, Dam and reservoir inspection, Underwater operation

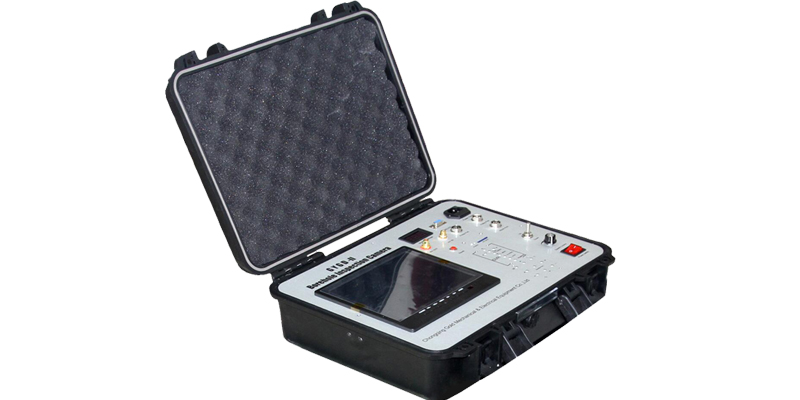

GYGD-IIS borehole camea



GYGD-IIS Borehole camera adopts SONY sensors and 850TVL high-definition, and the screen can directly display the depth and time in real time, low-illuminance color camera, providing 100% high-definition video transmission from long distances,the lighting adopts LED cold light source imported, with small heat, large brightness, strong penetration and low light decline. It is made up of high pressure camera probes with 75mm diameter 360degree rotary camera which Withstand pressure up to 3000m deep underwater. 8 " HD LCD color displayer, DVR video storage system. Electric winch, professional cable, pulley, depth sensor and other components.


borehole camera winch.1

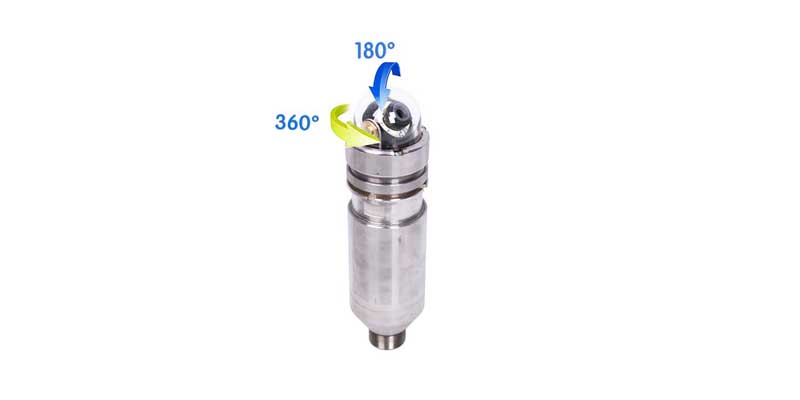

roatry probe 800



borehole camera techncial sheet



GYGD-IV  Borehole Inspection Camera

GYGD-IIS  Borehole Inspection Camera

GYGD-III Borehole Inspection Camera
                                                                            Controller Unit
Screen 12inch 8 inch 8 inch
Storage 32G (USB) 32G (SD Card) 32G (SD Card)
Keyboard Yes NO NO
Rotary 360 Degree rotary 360 Degree rotary 180, no rotary
Focus Adjustable Adjustable NO
                                                                            Winch  Unit
Electric AC220V AC220V AC220V
Cable Core 6 core 6 core 4 core
Wheel type 0-500m 0-500m Optional
Skid type 501-1000m 501-1000m 0-1000m
                                                                           Probe
Diameter 75mm 75mm 70mm
Rotary Yes Yes NO
Focus Yes Yes NO
Light Adjustable (+1 and -1) Adjustable (+1 and -1) NO
Centralizer Yes Yes NO
View Angle Down and side Down and side Down


borehole camera downhole view

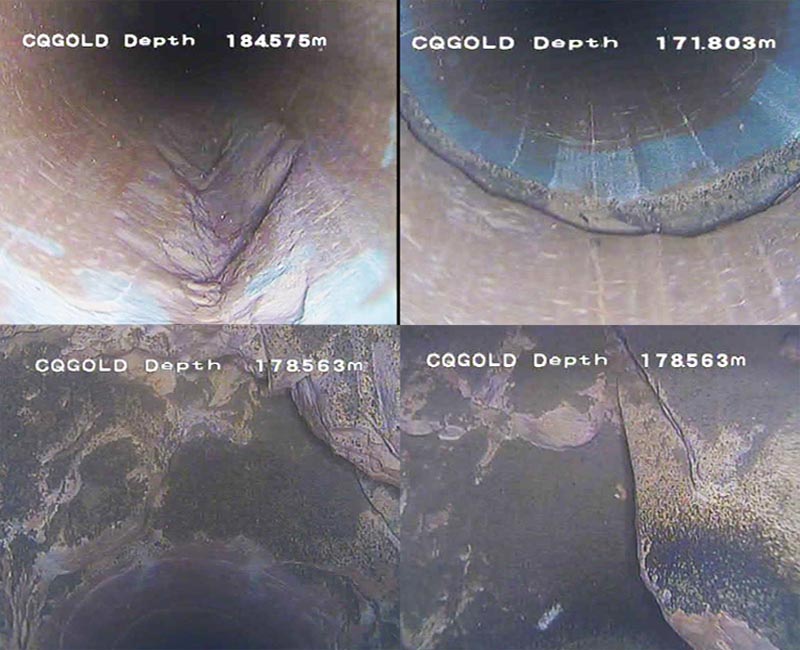

borehole camera hole view

borehole camera Working at field

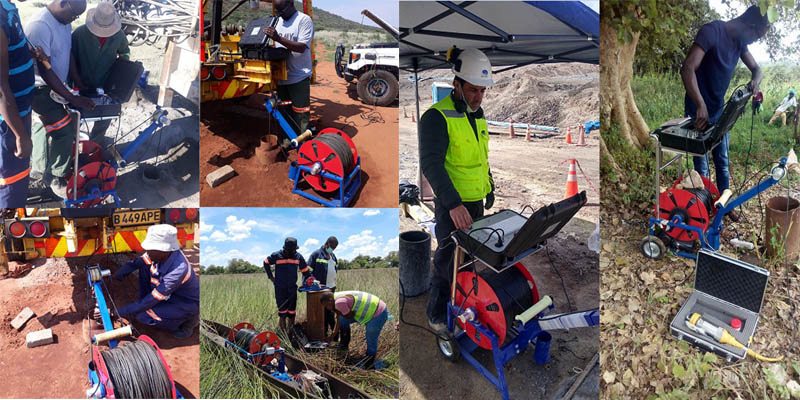

borehole camera customer
