GYGD-IV Borehole Inspection Camera Deep Well Camera Down Hole Camera

GYGD-IV Borehole Inspection Camera is new model deep well camera with 12 inch screen, 32G USB storage , with keyboard input. This borehole camera can see both down view and lateral view at same time. It is much better function than dual camera system.
Availability:
Quantity:
  • GYGD-IV
  • GOLD

Product Description

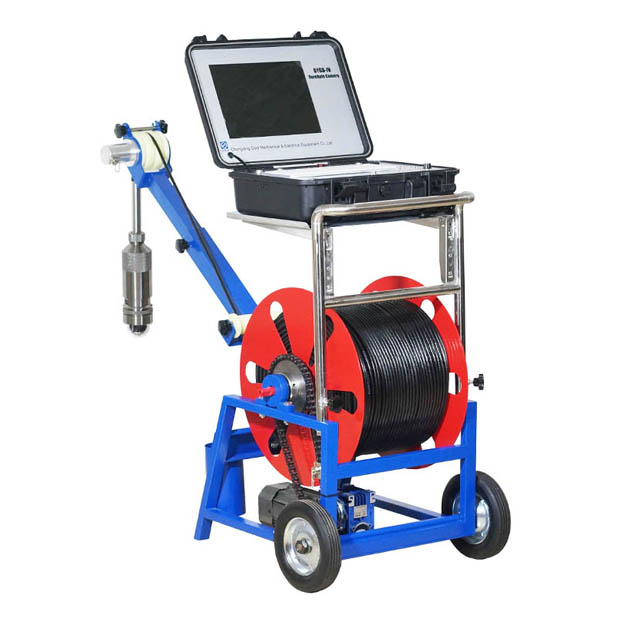

GYGD-IV Borehole Inspection Camera Deep Well Camera Down Hole Camera

borehole camera overview

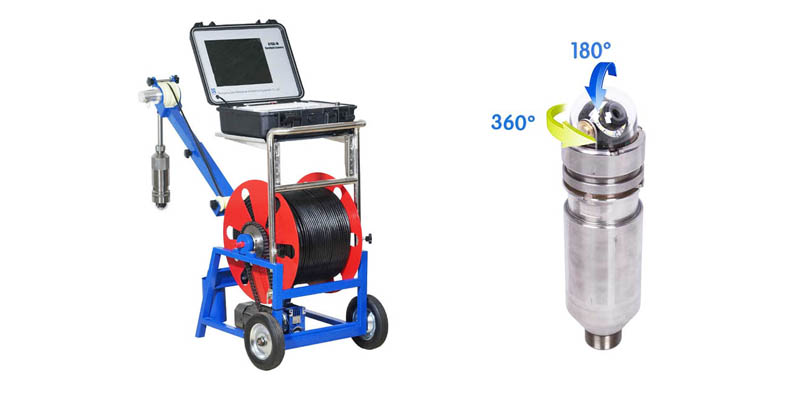

GYD-IV borehole camera 800


This borehole camera is Fourth Generation from CQGOLD, it is update by technical for high clear video and photo. The camera with 12 inch screen, USB to record, keyboard to input borehole information.


GYGD-IV Multi Function Borehole inspection camera system is widely used in marine exploration, underwater operation, underwater dam inspection, underwater scientific test, underwater monitoring, underwater survey, water well maintenance, hydropower station, industrial observation, pile foundation inspection, diving exploration, underwater cave exploration, marine rescue and salvage, military application, etc.



It is integrated the functions of borehole photographing, video recording and text input. It can be used to obtain borehole dynamic video and lo high-definition photos simultaneously, and it also have 8 times digital magnification function. It is used low power embedded dual core processor, with high-definition camera and stored in the U disk directly. Easy operation and performance stably


The camera system included monitor, electrical winch, donwhole camera probe. The cable length can be 1000m or more.

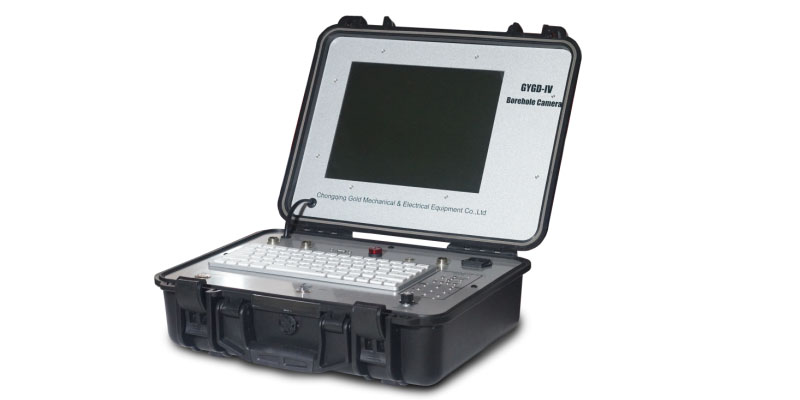

The camera monitor:

12inch Screen

Keyboard to input information

USB record

High clear display

GYGD-IIV

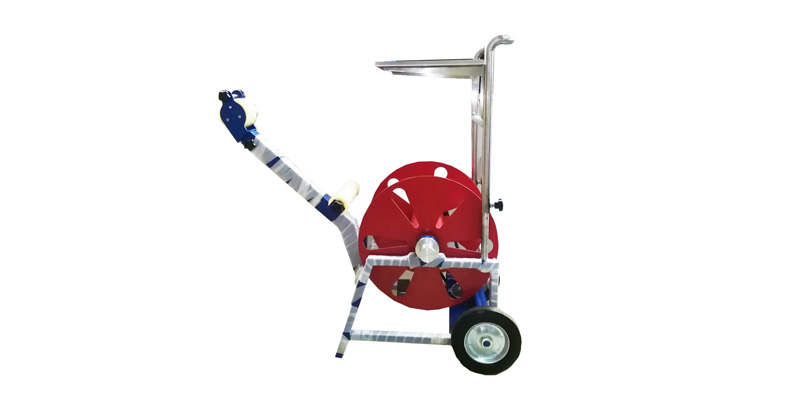

Electric Winch

Wheel type winch, easy to move

Depth counter

If more than 500m, will use skid type winch

borehole camera winch.1

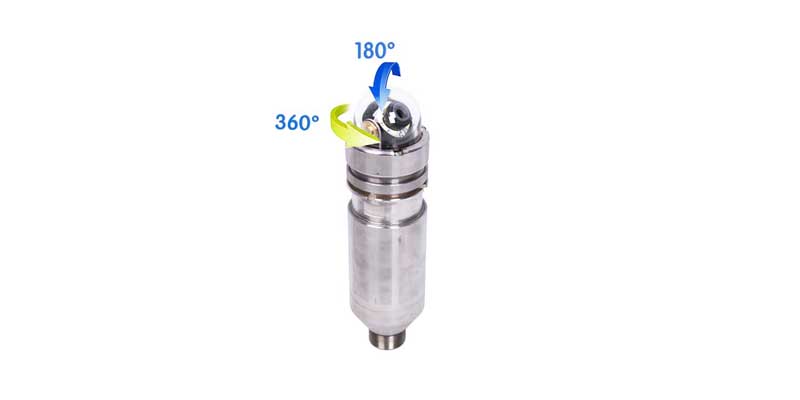

Downhole Camera

360 Degree rotary camera

Can see down view and side view at same time

Focus and light can be adjustable

Centralizer to protect camera

roatry probe 800

borehole camera techncial sheet


 GYGD-IV Borehole Inspection Camera GYGD-IIS Borehole Inspection Camera GYGD-III Borehole Inspection Camera
                                                                                                          Controller Unit
Screen 12inch 8 inch 8 inch
Storage 32G (USB) 32G (SD Card) 32G (SD Card)
Keyboard Yes NO NO
Rotary 360 Degree rotary 360 Degree rotary 180, no rotary

Focus

Adjustable Adjustable NO
                                                                                                          Winch  Unit
Electric AC220V AC220V AC220V
Cable Core 6 core 6 core 4 core
Wheel type 0-500m 0-500m Optional
Skid type 501-1000m 501-1000m 0-1000m
                                                                                                        Probe
Diameter 75mm 75mm 70mm
Rotary Yes Yes NO
Focus Yes Yes NO
Light Adjustable (+1 and -1) Adjustable (+1 and -1) NO
Centralizer Yes Yes NO
View Angle Down and side Down and side Down

borehole camera downhole view

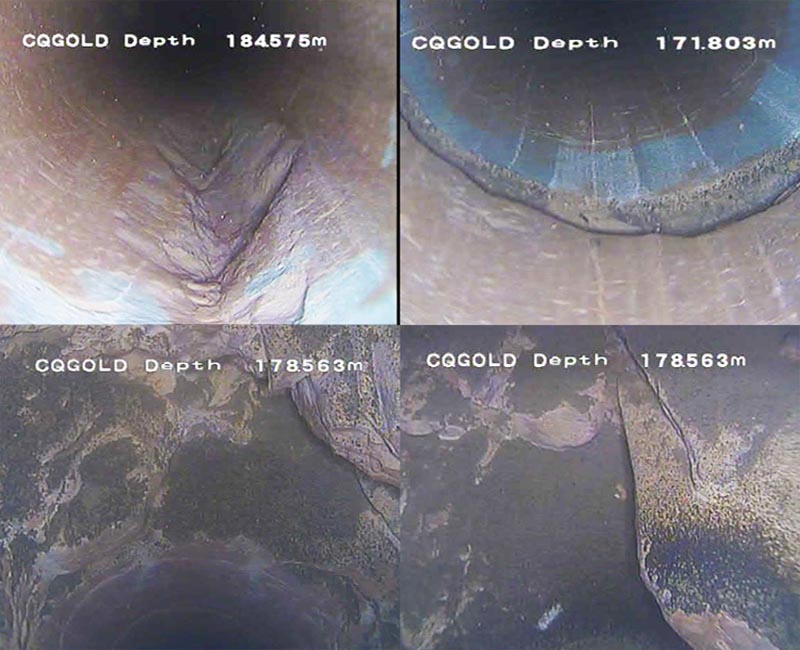

borehole camera hole view

borehole camera Working at field

borehole camera customer
