ZY-30 High-Power Portable Drilling Machine 30m Depth Geotechnical Drilling Machine

ZY series portable drill machine is a new product designed,which is applied widely in various geological sectors, such as drilling and sampling of geological pit, survey of mine and mineral vein, treatment and survey of river channel, reservoir and tailings dam, geotechnical engineering test, grouting drillings and archaeological explorations.
Availability:
Quantity:
  • ZY-30
  • GOLD
  • 12356

Product Description

ZY-30 High-Power Portable Drilling Machine 30m Depth Geotechnical Drilling Machine

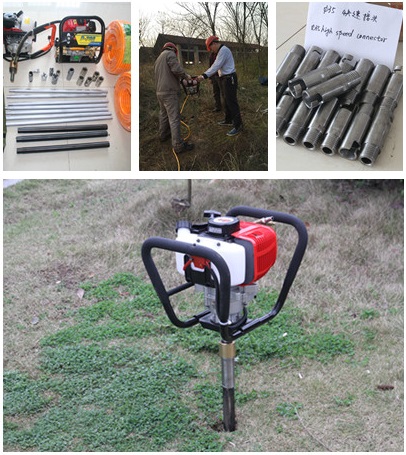

                                                        backpack drilling machine

Application:

-Physical and chemical survey and sampling, regional geological mapping;

-Investigation of mines and mineral veins, assessment of tenor of ore;

-Survey of geotechnical engineering, various drillings for explosion.


Technical Parameters (as below)

Model

Rotary speed of drill

Drill power

Max. bore diameter (mm)

Max. drilling depth (m)

Scope of core (mm)

Mass of complete drill (Kg)

Stratum applicable

ZY-15


2.3KW

Φ75

15

Φ26~Φ63

80.5 (15m Φ48 drill pipe)

Earth, sandy soil

ZY-20

Above 1800rpm

1.8KW

Φ38

20

Φ18~Φ26

65 (20m Φ35 drill pipe)

Complex and multivariate  strata

ZY-25

Above 1800rpm

1.55KW

Φ25

25

Φ16~Φ18

79 (25m Φ25 drill pipe)

Relatively complete bedrock stratum

ZY-30

Above 2000rpm


Φ27

30

Φ16~Φ18

85kg(30m Φ16~Φ18)

Relatively complete bedrock stratum
