The Drawing Method of Geophysical Exploration Line Section

1. First, draw the coordinate line on the drawing. The vertical coordinate is based on the elevation of the geological output, and the horizontal line is drawn according to a certain height difference. The coordinate line with the shortest intercept with the hatching line is marked on the graph (Figure. A).

2. The drawing of the geological boundary of the surface topography. use the coordinate line as the baseline to draw the topographic conversion points and geological boundary points on the section, and then use a slur to connect these topographic points to obtain a topographic line, and the geological boundary is extended according to the occurrence. ( Figure A）

3. The drawing of geophysical exploration engineering. Take the coordinate line as the baseline, and draw the positions of exploration trenches, shallow wells and boreholes on the sectional view according to the measurement results. (Figure B)

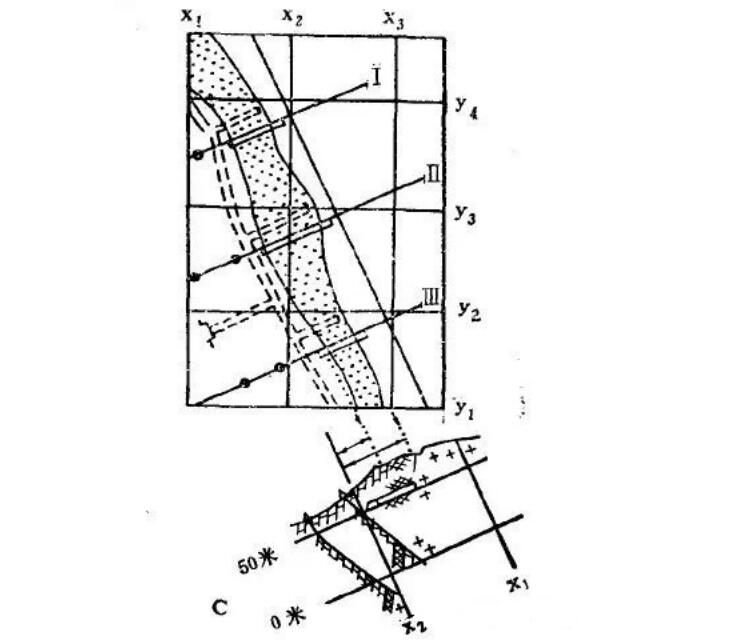

4. The drawing of geological boundaries; according to the original catalogue data of various geophysical exploration projects, various geological boundary points are scaled down to the corresponding positions, and their occurrence, sampling location and number are indicated. (Figure C)
